Scara robots for high-precision assembly and handling

Optimize your high-speed assembly and precision handling applications with advanced SCARA robotics, ensuring seamless integration and maximum efficiency in continuously demanding environments.

Handles and Assembles Precision Components Efficiently

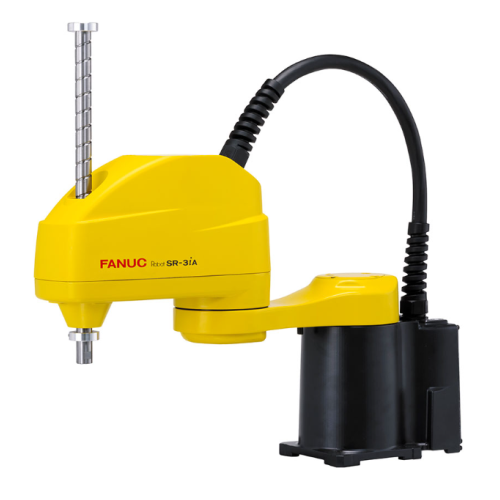

The FANUC SCARA Robot SR Series is designed for precise handling and assembly tasks across industries such as electronics, automotive, and medical devices. Featuring the SR-3iA, SR-6iA, SR-12iA, and SR-20iA models, these robots excel in high-speed, continuous operations with up to 20 kg payload capacity and motion ranges reaching 2200 mm. Each SCARA robot offers exceptional repeatability, ensuring accuracy in assembling small automotive parts, microchips, and sensitive medical devices. Compatible with the R-30iB Compact Plus controller, these robots seamlessly integrate into your production line, supporting both floor and wall installations, including upside-down applications for space optimization. Energy-efficient motor control reduces overall power consumption, making these robots an environmentally friendly choice. Customizable Z-axis stroke and cleanroom compatibility provide versatility to meet your operational requirements, while optional engineering support ensures perfect adaptation to your specific process needs.

Benefits

  • Enhances production efficiency with high-speed, continuous operation.
  • Reduces labor costs and errors with precise handling and assembly capabilities.
  • Offers versatile integration options for space optimization and process flexibility.
  • Minimizes energy usage with optimized motor control technology.
  • Ensures compatibility with cleanroom standards for sensitive manufacturing environments.

General


Applications
Manufacturing,Clean room applications,Packaging,Handling
End products
Sterilized medical packs,Precision instruments,Medical devices,Pharmaceutical bottles,Small automotive parts,Laboratory equipment,Microchips,Consumer electronics,Food containers,Cleanroom gowns,Cosmetic packaging,Electronic components
Steps before
Programming,System Setup,Calibration,Part Feeding
Steps after
Quality Inspection,Assembly Integration,Packaging,Storage
Input ingredients
Output ingredients
Market info
FANUC is renowned for its expertise in automation, specializing in manufacturing industrial robots, CNC systems, and machine tools, with a strong reputation for reliability and innovation in industrial automation solutions.

Technical Specifications


Controlled axes
4
Max. payload at wrist
3kg,6kg,12kg,20kg
Motion range (X,Y)
400mm,800mm
650mm,1300mm
900mm,1800mm
1100mm,2200mm
Stroke (Z)
200mm
210mm
300mm (option
450mm)
Repeatability J1 + J2 axis
±0.01mm
±0.02mm
Repeatability J3 stroke
±0.01mm
Repeatability J4 axis
±0.004°
±0.005°
Mass
19kg,17kg,30kg,28kg,53kg,64kg
Installation
Floor,Wall,Upside-down
Matching controller
R-30iB Compact Plus

Operating Characteristics


Control axes
4
Payload capacity
3kg to 20kg
Motion range (X,Y)
350mm to 2200mm
Stroke (Z)
140mm to 450mm
Repeatability
±0.01mm to ±0.005°
Installation position
Floor,Wall,Upside-down
Application
Handling,Clean room

Product type Characteristics


Application
Handling,Clean room


Cleanroom Certification
ISO 7 / ISO 8

Physical Characteristics


Machine footprint
400mm x 800mm to 1100mm x 2200mm
Shape
SCARA Robot
Installation
Floor,Wall
Mass
17kg to 64kg
Stroke (Z)
200mm to 450mm
Controlled axes
4

Custom Options


Control panel type
R-30iB Compact Plus
Installation options
Floor,Wall,Upside-down
