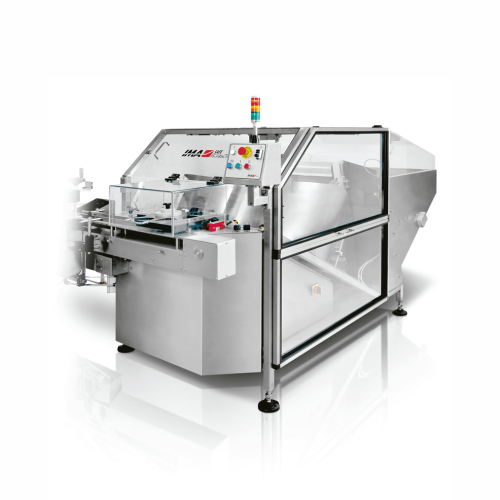

Rotary unscrambler for plastic bottles

Streamline your bottling process with a solution that efficiently sorts, orients, and transfers various container types, ensuring seamless integration and enhanced productivity in high-speed operations.

Sorts and Orients Bottles for Packaging Lines

The Rotary Unscrambler from IMA Swiftpack offers a comprehensive solution for high-speed bottle sorting and orientation in packaging lines. Designed to accommodate a diverse array of containers—from pill bottles to energy drink containers—this machine excels in efficiency with throughput capabilities reaching up to 180 bottles per minute. The unscrambler processes bottles by loading them into a large covered hopper and utilizing a starwheel to separate and orient each bottle. Integration with existing production lines is seamless, thanks to automatic container queue control at the outfeed and synchronization with line outputs. Constructed from stainless steel and acrylic, the machine ensures longevity and meets the latest GMP requirements. Quick-release change parts allow for tool-free bottle format changes within 5 minutes, enhancing operational flexibility. Optional features, such as an in-line bottle cleaning attachment, provide added versatility. The rotary unscrambler’s safety guarding and reduced energy consumption make it a reliable and efficient choice for manufacturers in the pharmaceutical, food, beverage, and personal care industries.

Benefits

  • Enhances line efficiency with high-speed sorting up to 180 bottles per minute.
  • Minimizes changeover time with quick-release parts, enabling tool-free adjustments in just 5 minutes.
  • Reduces energy costs with an optimized motor control system for efficient operation.
  • Ensures product safety and compliance with robust GMP-compliant construction.
  • Increases flexibility by handling a wide range of bottle sizes and shapes.

General


Applications
Vitamins,Supplements,Personal care products,Bottled liquids,Beverage containers,Nutraceuticals,Pharmaceuticals
End products
Liquid medicine bottles,Pill bottles,Capsule containers,Energy drink containers,Juice bottles,Vitamin supplement bottles,Skincare lotion bottles,Shampoo bottles,Protein powder containers
Steps before
Bottle Manufacturing,Bottle Inspection,Bottle Storage
Steps after
Filling,Capping,Labeling,Packing
Input ingredients
plastic bottles,randomly loaded bottles
Output ingredients
sorted bottles,organized bottles on a conveyor,ejected upside down bottles
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Production output
Up to 180 bottles/min
Bottle diameter
25 mm to 100 mm
Bottle height
40 mm to 200 mm
Automation
Automatic

Operating Characteristics


Working Mechanism
Starwheel System
Automation Level
Automatic
Integration Capability
Synchronised with Line Outputs
Changeover Time
5 Minutes
Energy Efficiency
Reduced Energy Consumption
Cleaning Method
Compressed Air Ejection
Batch vs. Continuous Operation
Inline Continuous

Material Compatibility


Density/particle size
25 mm to 100 mm

Physical Characteristics


Machine footprint
Compact design
Construction material
Stainless steel/acrylic
Guarding
Fully guarded
Hopper type
Large storage hopper
Discharge method
Conveyor system
Control Panel
Electronic speed control

Custom Options


Size availability
3 sizes,depending on output
Changeover capability
Quick release change parts,changeover in 5 minutes
Integration possibilities
Synchronized to line outputs and container backup controls
Optional attachments
In-line bottle cleaning attachment
