Rotary blower for Pet bottle production
Optimize PET bottle production with cutting-edge efficiency, reducing energy consumption by 25% while achieving high-speed output and flexibility for various container sizes. Perfect for manufacturers aiming to streamline operations and ensure top-quality results even at the most demanding speeds.
Produces High-Quality PET Bottles Efficiently

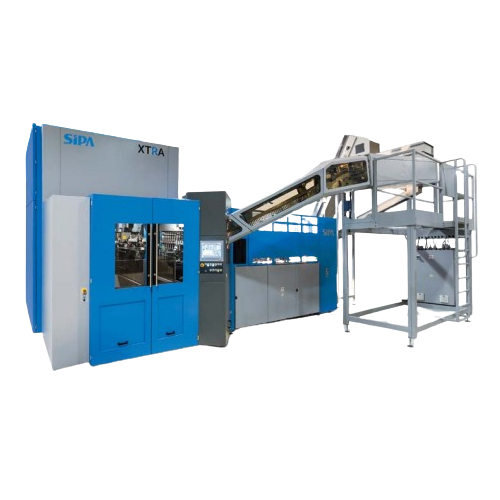

The XTRA Rotary Blowing System from SIPA is engineered for high-speed production of PET bottles across a wide range of industries, including beverages, food, and dairy. It stands out with its capacity to produce 2800 bottles per hour per cavity, utilizing a broader active process angle of 200° to ensure stress-free molding. This system is optimal for creating diverse applications, from still water to alcoholic beverages, supported by versatile operation handling both hot and cold filling. Automation is seamless, with user-friendly controls enhancing operational efficiency and minimizing downtime through easy maintenance and rapid mold changes. Energy savings of up to 25% are achieved through advanced air recovery and optimized motor control, aligning with sustainable production goals. Available in various configurations, it can be integrated with other systems for a cohesive production line, ensuring adaptability and expanding production capabilities.
Benefits
- Maximizes production speed with 2800 bottles per hour per cavity.
- Minimizes energy costs by reducing consumption by 25%.
- Streamlines maintenance with tool-free, quick mold changeovers.
- Expands compatibility with easy integration into existing systems.
- Enhances flexibility for producing bottle sizes from 0.2 to 3.5 liters.
- Applications
- Isotonic drinks,Milk,Sport drinks,Carbonated water,Alcoholic beverages,Still water,Milk-based products,Soft drinks,Tea,Functional drinks,Fruit juices,Edible oil
- End products
- Iced tea bottles,Beer bottles,Energy drinks bottles,Lemonade bottles,Cola bottles,Sparkling water bottles,Skimmed milk bottles,Olive oil bottles,Mineral water bottles,Wine bottles,Vodka bottles,Orange juice bottles,Flavored milk bottles,Protein drinks bottles,Canola oil bottles,Electrolyte drinks bottles
- Steps before
- Preform production,Preform heating,Material blending
- Steps after
- Filling,Labeling,Packing,Capping,Inspection
- Input ingredients
- PET,rPET,bio-based resins,OPP,Multilayer
- Output ingredients
- PET bottles,still water,carbonated water,soft drinks,fruit juices,isotonic drinks,sport drinks,functional drinks,tea,milk,milk-based products,edible oil,alcoholic beverages
- Market info
- Best Output
- 2800 BHC
- Active Angle
- 200°
- Energy Savings
- 25% less energy
- Container Capacity
- 0.2-3.5L
- Automation
- Intuitive HMI,easy use and maintenance
- Mechanical Flexibility
- Processes bottles < 1.5L at 2550 BHC,up to 3.5L at 2400 BHC
- Integration
- Open System for easy integration with other machinery
- High Pressure Air Interval
- 0.8 sec
- Blowing Cavities
- 8 cavities
- Max Output (XTRA24)
- 65,000 B/H
- Max Output (XTRA20)
- 54,000 B/H
- Max Output (XTRA16)
- 45,000 B/H
- Max Output (XTRA14)
- 40,000 B/H
- Max Output (XTRA12)
- 34,000 B/H
- Max Output (XTRA10)
- 28,000 B/H
- Max Output (XTRA8)
- 22,000 B/H
- Max Output (XTRA6)
- 17,000 B/H
- Oven Configuration
- Adjustable to neck sizes 12/38 mm
- Output Rate
- 2800 bhc
- Active Process Angle
- 200°
- Energy Efficiency
- -25% energy usage
- User-friendliness
- Easy use and maintenance
- Flexibility in Container Sizes
- 0.2-3.5L
- Integration Capability
- Open System
- Changeover Efficiency
- Quick and tool-free
- Automation Level
- Intuitive HMI,PLC
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- PETrPETOPPMultilayer
- Standard and custom
- Lightweight
- Yes
- Heat Set for Hot fill and pasteurizable
- Yes
- Ultra-Clean
- Yes
- Light barrier
- Yes
- Gas barrier
- Yes
- Humidity barrier
- Yes
- Aroma barrier
- Yes
- Active packaging
- Yes
- Machine Footprint
- Compact Design
- Blowing Cavities
- 6 to 24
- Container Size Range
- 0.2-3.5 L
- Process Angle
- 200°
- Discharge Method
- Rotary Blowing System
- Control panel type
- Intuitive HMI
- Integration possibilities
- Open System
- Integrates with Sincro Bloc,Xtreme Sincro
