Roll-on bottle capping solution for aluminum caps

Ensure precise threading and sealing of aluminum caps on diverse bottle shapes with this roll-on technology, ideal for enhancing packaging integrity across your production line.

Seals and Threads Aluminum Caps on Bottles

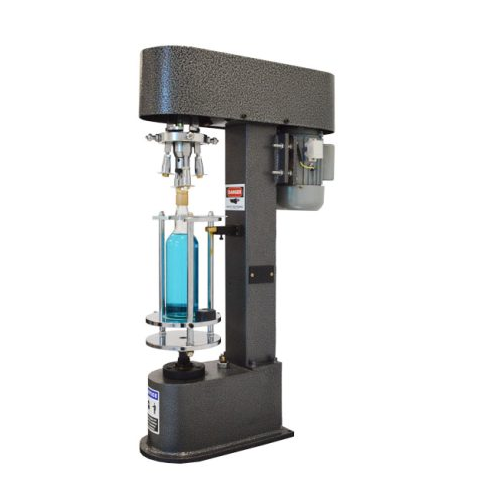

The AccuCapper ROPP Capper from Accutek Packaging is a specialized capping machine designed to seal and thread aluminum caps onto a variety of bottle shapes and sizes. This semi-automatic equipment excels in providing tamper-proof closures for industries including liquor, pharmaceuticals, and agrochemicals, addressing the challenge of securely sealing diverse containers like whiskey bottles and motor oil containers. Equipped with adjustable capping heads, it handles bottle heights from 50mm to 300mm and cap sizes from 20mm to 40mm. The machine operates at speeds up to 30 containers per minute, integrating seamlessly into existing production lines. Its user-friendly design features centering guides to ensure precise application, while adjustable sealing and threading pressure accommodate different materials such as PET, PVC, and HDPE. Built for reliability, the AccuCapper ensures low maintenance demands and consistent performance, making it a valuable asset for optimizing your packaging process.

Benefits

  • Enhances product security with tamper-proof closure application.
  • Supports diverse production needs with adjustable capping for various bottle styles.
  • Increases operational efficiency by handling up to 30 containers per minute.
  • Minimizes maintenance costs through a durable, user-friendly design.
  • Facilitates seamless integration into existing production lines.

General


Applications
Food,Beverages,Liquor,Agrochemicals,Lube oil,Medical,Edible oil,Pharmaceuticals
End products
Eye drop bottles,Herbicide bottles,Vodka bottles,Olive oil bottles,Gin bottles,Hydraulic oil containers,Cough syrup bottles,Whiskey bottles,Fruit juice bottles,Motor oil containers,Canola oil bottles,Soft drink bottles,Insecticide bottles
Steps before
Bottle Filling,Label Placement,Unscrambling
Steps after
Labeling,Inspection-Rejection,Packaging
Input ingredients
aluminum caps,PET bottles,PVC bottles,HDPE bottles,containers with ROPP closures
Output ingredients
sealed aluminum caps on containers,threaded caps,ROPP capped bottles
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Cap Size
20mm – 40mm
Capping Head Height Range
50-300mm
Product Speed
Up to 30 CPM
Electrical Requirement
110 VAC – 60Hz
Dimensions (LxDxH)
20.5” x 8” x 35.5”
Weight
Approx. ~140 lbs. (65 kg)
Container Types
Various shapes and sizes
Sealing,Threading Pressure
Adjustable
Automation Level
Semi-automatic

Operating Characteristics


Automation level
Manual / Semi-automatic
Batch vs. continuous operation
Batch
Height adjustment
50-300mm
Capping head speed
Adjustable
Cap size handling
20-40mm
Product speed
Up to 30 CPM
Sealing,threading pressure adjustment
Adjustable
Container compatibility
Various shapes and sizes

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Biological compatibility
N/A
Cleanability
Yes
Density/particle size
Variable

Product type Characteristics


Container type
Glass / PET / PVC / HDPE / Rigid Containers
Cap type
ROPP / Aluminum Caps
Bottle height
50-300mm
Cap size
20mm – 40mm
Suitable for
Liquor / Pharmaceuticals / Beverages / Food / Agrochemicals

Custom Options


Adjustable capping head
Yes
Cap size handling
20-40mm
Bottle height handling
50-300mm
Threading and sealing rollers
Adjustable
Sealing,threading pressure adjustment
Yes
Centering guides
Fitted
Operating speed
Up to 30 CPM
