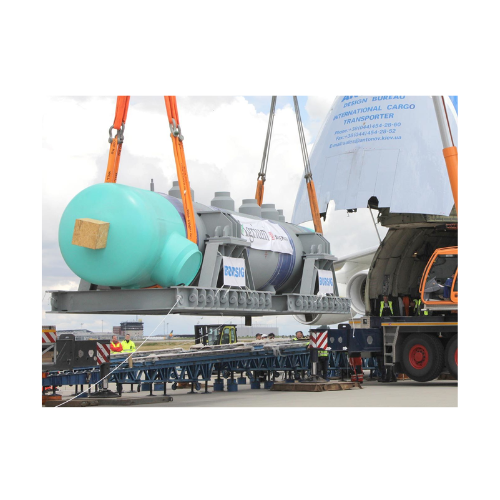

Reformed gas waste heat boiler with variable tube sheet
Achieve precise heat recovery and temperature control in high-pressure steam applications, ensuring optimal efficiency and longevity of your production line while handling extreme gas inlet conditions.

Recovers Heat and Generates Steam from Waste Gases
The Reformed Gas Waste Heat Boiler from BORSIG Process Heat Exchanger GmbH is designed to efficiently recover heat and generate high-pressure steam from synthesis gas processes. Utilizing a patented stiffened or flexible tube sheet design, it ensures optimal cooling and minimizes metal temperature, thus preventing crevice corrosion. With applications spanning synthesis gas processing, petrochemical refining, and hydrogen production, this boiler accommodates high gas inlet temperatures up to 1,200°C and steam pressures up to 160 bar. It features an internal gas-side bypass for precise outlet temperature control via a single valve adjustment, allowing seamless integration into refining and power generation lines. Constructed to handle continuous, high-pressure operations, it offers robust performance and longevity, and is suitable for a range of industries including chemical, petrochemical, and energy production. Options for customization and engineering support ensure tailored solutions for specific industrial requirements.
Benefits
- Optimizes energy recovery with efficient heat exchange, reducing operational costs.
- Prolongs equipment lifespan with unique design minimizing metal fatigue and corrosion risk.
- Enhances process control with precise gas outlet temperature adjustment.
- Increases flexibility in plant layout with horizontal or vertical installation options.
- Supports high-pressure operations for improved synthesis gas and hydrogen production efficiency.
- Applications
- Nitric acid production,Industrial gases,Energy industries,Steam generation,Waste heat recovery,Hydrogen production,Petrochemical processing,Synthesis gas processing
- End products
- Propylene,Synthesis gas,Methanol,High-pressure steam,Ammonia,Nitric acid,Aromatic compounds,Hydrocarbons,Ethylene,Steam,Industrial chemicals,Hydrogen,Organic solvents
- Steps before
- Gas Reforming,Steam Generation,Heat Exchange
- Steps after
- Gas Separation,Synthesis Gas Cooling,Steam Superheating
- Input ingredients
- reformed gas,high-temperature gas,gas inlet temperature up to 1,200°C
- Output ingredients
- high-pressure steam,controlled gas outlet temperature
- Market info
- BORSIG is known for its expertise in manufacturing high-quality industrial engineered-to-order (ETO) equipment, including pressure vessels, heat exchangers, and compressors, with a strong reputation for engineering excellence and reliability in the petrochemical and chemical industries.
- Gas Inlet Temperature
- up to 1,200°C
- Steam Pressure
- up to 160 bar (16,000 kPa)
- Stiffened Tube Sheet Design
- Patented design
- Weld Type
- Full penetration weld
- Cooling Method
- Efficient cooling with low metal temperature
- Operation Temperature of Weld
- Close to boiling temperature of water
- Tube Length Limitation
- No limitation
- Installation Orientation
- Horizontal or vertical
- Gas Outlet Temperature Control
- Via simple valve adjustment
- Flexible Tube Sheet Design
- Thin,flexible design
- Stress in Tube to Tube Sheet Weld
- Higher compared to stiffened design
- Operation Temperature of Tube Welds
- Close to saturated steam temperature
- Gas inlet temperature
- Up to 1,200°C
- Steam pressure
- Up to 160 bar (16,000 kPa)
- Cooling efficiency
- Very efficient cooling
- Temperature control
- Internal gas-side bypass
- Tube sheet flexibility
- Thin stiffened or flexible tube sheet design
- Orientation
- Horizontal or vertical installation
- Bypass valve control
- Controls mass flow through bundle and bypass tube
- Lifetime
- No lifetime limitation due to operation or fatigue cycles
- Operation condition
- No bending in tube sheets under any operating condition
- Gas Inlet Temperature
- up to 1,200°C
- Steam Pressure
- up to 160 bar (16,000 kPa)
- Tube Sheet Design
- Thin stiffened or flexible
- Installation Orientation
- Horizontal or Vertical
- Internal Gas-side Bypass
- Optional
- Material Thickness
- Thin tube sheet
- Cooling Efficiency
- High due to thin tube sheet design
- Gas-side bypass option
- Internal bypass design
- Tubing configuration
- Stiffened tube sheet / Flexible tube sheet
- Orientation flexibility
- Horizontal / Vertical installation
- Material of construction
- High-temperature resistant
