Pure steam generator

Pure steam is mainly used in the pharmaceutical industry and in biotechnology for sterilization, water for injection generation, clean room humidification.

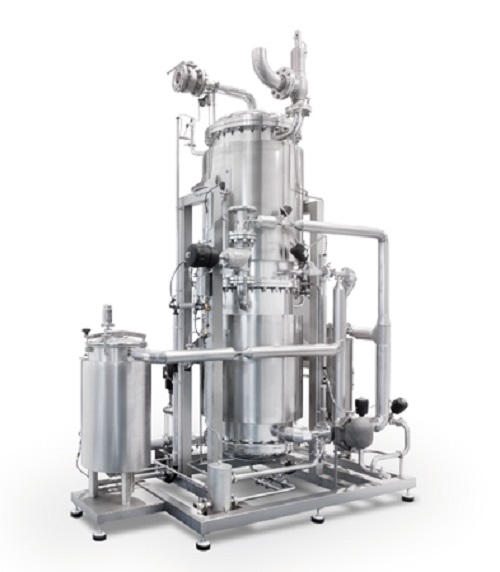

Compact steam generator for pharmaceutical production

The PSG pure steam generator from Telstar Life-Sciences has a design which offers excellent performance for steam production for use in pharmaceutical production.

It consists of a vertical pressure container, in the form of a column divided into two parts. The lower part consists of a tubular heat exchanger, with a double tube sheet (DTS), connected at the top to an expansion chamber or separating column, which allows the steam to flow upwards and prevents water droplets from exiting the chamber.

To improve the energy efficiency, the preheated water is introduced into a tank with an exchanger, where degassing occurs. The system is supplied as a compact unit on a skid and all its components are readily accessible.

Benefits

  • Sanitary design
  • Robustness and reliability
  • Safety and easy operation
  • Quality guarantee
