Preforming line for candy rope production
Achieve consistent sugar ropes and lollipop centers with precise forming and sizing, enhancing product quality and operational efficiency in high-speed confectionery production.
Extrudes, Forms, and Sizes Sugar and Confectionery Ropes

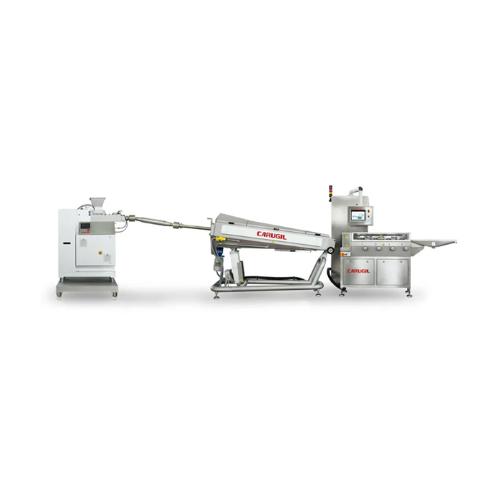

The Carugil Preforming Line is engineered for the seamless production of sugar ropes and lollipops, meeting the precise needs of candy and confectionery manufacturers. It integrates multiple stages—extrusion with the optional CSTR extruder, forming through the CBC-120 batch roller, and sizing via the CRC-4 rope sizer—delivering a continuous flow of either solid or center-filled products. The line supports a throughput of up to 450 kg/h, tailored for high-speed operations in confectionery plants. Constructed from stainless steel, it ensures durability and resistance to corrosion. The system features advanced control with a main cabinet, allowing for precise temperature and speed synchronization with downstream equipment. Safe, clean operations are prioritized with stainless steel contact areas and safety protections. This solution supports your production’s accuracy and efficiency, integrating seamlessly into existing lines and offering customization options to meet specific production requirements.
Benefits
- Enhances production consistency with continuous and stable rope extrusion.
- Reduces energy consumption with electronically controlled heating systems.
- Facilitates easy cleaning and maintenance with stainless steel construction.
- Increases operational safety with integrated protective features.
- Streamlines production integration with automatic speed synchronization.
- Applications
- Sweets,Confectionery,Snacks
- End products
- Solid lollipops,Sweet ropes,Sugar ropes,Candy sticks,Center-filled lollipops
- Steps before
- Mixing,Extrusion Preparation,Pre-extrusion Testing
- Steps after
- Lollipop Forming,Cooling,Packaging,Quality Inspection
- Input ingredients
- solid rope,center-filled rope,sugar
- Output ingredients
- continuous rope,consistent rope,sugar rope
- Market info
- Carugil is known for its expertise in designing and manufacturing industrial engineered-to-order equipment, particularly for the confectionery and food packaging industries, providing customized solutions that meet specific client needs with high-quality standards and innovative technology.
- Production Capacity
- Up to 450 Kg/h (depending on the model)
- Material
- Stainless Steel
- Max Loading Capacity
- 120 Kg
- Twin-screw Infeed Section
- Counter-rotating screws
- Temperature Control
- Electronic temperature control
- Roller Movement
- Left-right alternate move
- Heating System
- Electrical heating
- Sizing Rollers
- 4 pairs of horizontal sizing rollers
- Automation
- Automatic rope control
- Working Mechanism
- Extrusion and Sizing
- Integrated Steps
- Extruder,Batch Roller,Rope Sizer
- Batch vs. Continuous Operation
- Continuous
- Automation Level
- PLC-controlled
- Material Handling
- Stainless Steel Contact Parts
- Operation Safety
- Safety Protection on Sizing Stage
- Temperature Control
- Electronic Temperature Control
- Capacity
- Up to 450 Kg/h
- Changeover Time
- Adjustable via Hand-wheel
- RPM Synchronization
- Automatic Speed Synchronization
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Stainless Steel contact parts
- Yes
- Material Construction
- Stainless Steel
- Conical Roller Movement
- Left-right alternate
- Rope Sizer
- 4 pairs of rollers
- Control Panel Type
- Main control cabinet
- Control panel type
- Main control cabinet for all machines
- Integration possibilities
- Speed synchronization with down-stream equipment
- Temperature control
- Electronic temperature control
- Roller movement customization
- Left-right alternate move by push button and hand-wheel
- Material construction
- Stainless steel contact areas
