Precision sieve shaker for particle size analysis

Achieve precise particle size separation with a sieve shaker designed for reliable performance in quality control and research applications, ensuring efficient material testing and accurate results every time.

Performs Precise Particle Size Analysis

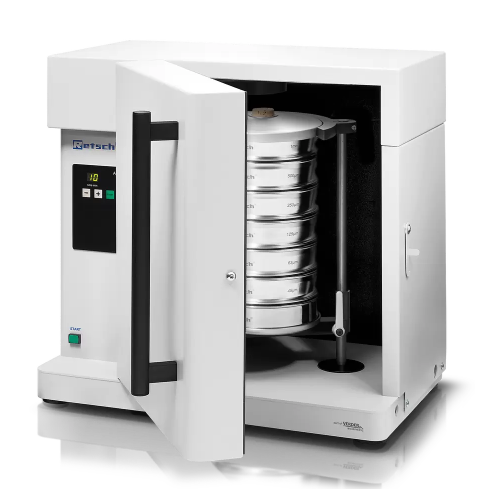

The AS 200 Tap from Retsch is a specialized sieve shaker engineered to provide precise particle size analysis across a range of industries, including metallurgy, pharmaceuticals, and construction materials. Utilizing a horizontal circular motion combined with vertical tapping, it simulates hand sieving to ensure consistent separation and fractioning of materials such as abrasives, cement, and spices. With the ability to sieve up to 3 kg batches within a measuring range of 20 µm to 25 mm, its digital settings allow easy control and monitoring. The equipment’s maintenance-free design and integration with the EasySieve software via RS232 interface make it an efficient addition to research labs and quality control operations. While designed for dry sieving, the AS 200 Tap meets ISO 9001 standards, ensuring dependable results in any testing environment.

Benefits

  • Ensures precise particle separation, enhancing quality control and research outcomes.
  • Saves time with rapid sieving actions, increasing laboratory productivity.
  • Offers easy-to-use digital interface, reducing training and operation time.
  • Guarantees consistent results worldwide, independent of power frequency variations.
  • Lowers maintenance needs, minimizing operational costs and downtime.

General


Applications
Charcoal,Metal powders,Abrasives,Diamonds,Coal,Spices,Cement
End products
Diamond grit,Metallurgical coke,Sandpaper,Welding powder,Portland cement,Bbq briquettes,Curry powder
Steps before
Grinding,Milling,Size Reduction
Steps after
Quality Control,Packaging,Analysis
Input ingredients
activated carbon,abrasives,metal powder,spices,diamonds,powders,bulk materials,charcoal,coal,cement
Output ingredients
separated particles,fractioned materials,particle size determination
Market info
RETSCH is known for its high-quality laboratory equipment for sample preparation and particle size analysis, including mills, crushers, and sieve shakers, praised for their precision, durability, and reliability in research and industrial applications.

Technical Specifications


Sieving motion
Horizontal circular motion with vertical taps
Speed
280 min-1
Number of taps
150 min-1
Max. batch / feed capacity
3 kg
Max. number of fractions
7 / 13
Max. mass of sieve stack
6 kg
Time display
Digital,1 - 99 min
Suitable sieve diameters
200 mm / 203 mm (8")
Max. height of sieve stack
380 mm
Power consumption
180 W
Net weight
~ 68 kg / ~ 92 kg with sound enclosure cabinet
Dimensions (W x H x D)
700 x 640 x 450 mm / 700 x 670 x 520 mm with sound enclosure cabinet
Measuring range
20 µm - 25 mm
Serial interface
Yes
Protection code
IP 50
Electrical supply data
Different voltages
Power connection
1-phase

Operating Characteristics


Sieving motion
Horizontal circular motion with taps
Automation level
Digital control with RS232 interface
Batch vs. continuous operation
Batch
Energy efficiency
180 W
Maintenance requirements
Maintenance-free
Cleaning method
Manual

Material Compatibility


Abrasion resistance
Yes
Density/particle size compatibility
20 µm - 25 mm
Corrosive resistance (e.g. acids)
No
Cleanability
Yes

Product type Characteristics


Feed material type
Powders,bulk materials

Physical Characteristics


Machine footprint
700 x 640 x 450 mm
Machine footprint with sound enclosure cabinet
700 x 670 x 520 mm
Sieve diameter
200 mm / 203 mm (8")
Max. height of sieve stack
380 mm
Net weight
~ 68 kg
Net weight with sound enclosure cabinet
~ 92 kg

Custom Options


Control panel type
Digital display
Integration possibilities
RS232 serial interface
Software integration
EasySieve software
Design
Ergonomic design
