Precision laser drilling for osmotic controlled release tablets

Enhance tablet precision and control drug release with high-speed laser drilling, optimizing your pharmaceutical production line for consistent and accurate delivery.

Drills Precision Holes in Pharmaceutical Tablets

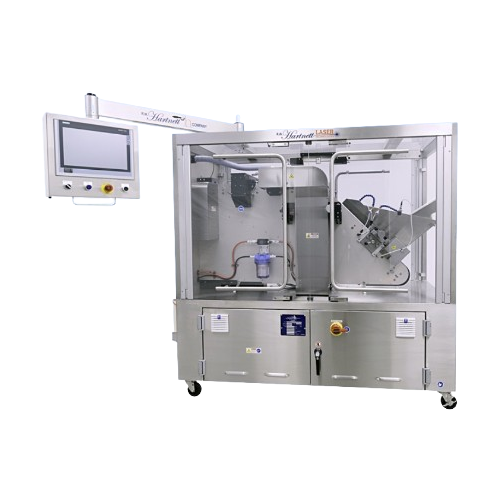

The Delta Laser Drilling Machine from RW Hartnett Company is designed to precisely drill holes in pharmaceutical tablets and canisters, facilitating osmotic controlled release. This machine stands out with its ability to process between 50,000 to 60,000 pieces per hour, leveraging a servo drive system for precise print registration. It features a fully adjustable hopper to ensure smooth product flow and enables single or double-sided laser drilling, accommodating bi-layered tablet drilling with precision. It is widely used in the production of osmotic pump tablets, controlled release prescriptions, and drug delivery canisters in the pharmaceutical, nutraceutical, and biotechnology industries.

The Delta Laser Drilling Machine integrates seamlessly into continuous high-speed operations, making it ideal for processing and final conditioning departments. With capabilities like batch recording and a swingarm 15” touchscreen HMI, it offers enhanced process control and monitoring. For quality assurance, you can opt for a vision inspection system with single piece rejection and validation document packages. This machine is 21 CFR Part 11 Compliant and CE and UL certified, ensuring it meets stringent pharmaceutical industry standards. Wi-Fi connectivity and a quick-change tooling system further enhance its operational efficiency, while customization options and engineering support ensure it fits specific production needs.

Benefits

  • Increases production efficiency with the capability to drill 50,000 to 60,000 pieces per hour.
  • Enhances product quality by ensuring precise drilling on bi-layered tablets and specific canisters.
  • Reduces operational costs through the servo drive system that maintains accuracy without manual intervention.
  • Ensures compliance and safety with 21 CFR Part 11, CE, and UL certifications.
  • Improves production flexibility with an adjustable hopper and quick-change tooling system.

General


Applications
Osmotic controlled release tablets,Canisters,Pharmaceutical tablets
End products
Bi-layered pharmaceutical tablets,Osmotic pump tablets,Controlled release prescription tablets,Drug delivery canisters
Steps before
Tablet Pressing,Tablet Quality Inspection
Steps after
Coating,Packing,Vision Inspection
Input ingredients
tablets,canisters
Output ingredients
precision drilled tablets,precision drilled canisters
Market info
RW Hartnett is known for designing and manufacturing precision printing and vision inspection equipment for the pharmaceutical and confectionery industries, offering high-quality, innovative solutions tailored to client needs, with a strong reputation for reliability and excellence.

Technical Specifications


Speed
50,000 to 60,000 pieces per hour
Electrical
240 VAC / 30 amp/ 3 phase
Air
90 psi @ 5 scfm
Automation
Servo drive system,Wi-Fi connectivity
HMI
Swingarm 15” touchscreen
Compliance
21 CFR Part 11 Compliant

Operating Characteristics


Laser drilling capacity
50,000 to 60,000 pieces per hour
Adjustable hopper
For maximum fill rate
Precision registration
Servo drive system
Automation level
Single or two sided laser drilling
HMI
Swingarm 15” touchscreen
Wi-Fi connectivity
Available
Batch recording
21 CFR Part 11 Compliant

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Tablet type
Bi-layered,single-layer

Physical Characteristics


Discharge method
Floor level infeed bulk conveyor
Control panel type
Swingarm 15” touchscreen HMI
Hopper type
Adjustable

Custom Options


Hopper Adjustment
Fully Adjustable Hopper
Laser Drilling Options
Single or Two-Sided
Touchscreen HMI
Swingarm 15” Touchscreen
Connectivity
Wi-Fi Connectivity
Batch Recording
Available
