Precise dough sheet cutting station for bakeries

Efficiently shape and cut dough sheets for diverse snack and bakery products, ensuring consistent quality with adjustable precision and integrated scrap management to maximize yield.

Cuts and Shapes Dough into Diverse Snack Products

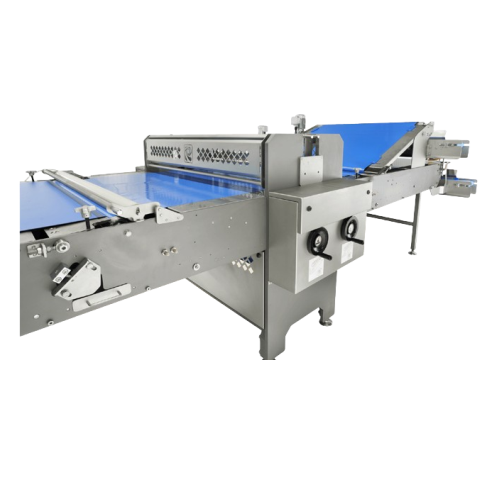

The Rotary Cutting Station, designed by Thomas L. Green, provides a solution for industrial bakeries aiming to precision-cut and shape dough into an array of snack products such as pretzel bites and shortbread cookies. The equipment utilizes a continuous rotary die assembly to press dough against high-precision engraved die rolls, effectively forming consistent shapes. Equipped with an integrated conveyor system, it synchronizes seamlessly within production lines, including upstream mixers and downstream ovens. Capable of handling various dough thicknesses, it supports customization with multiple die rolls for complex shapes. The station includes features for efficient scrap removal, recycling off-cuts back into the dough handling system. Built within Reading Bakery Systems’ SafeShield Program, it ensures safety and hygiene with interlocked guard mechanisms and easy-clean access. Comprehensive automation is achieved through PLC control, promoting synchronized speed adjustments for optimal product quality and throughput efficiency, making it a robust choice for snack manufacturers and food production companies.

Benefits

  • Enhances production efficiency with continuous, precise cutting and shaping capabilities.
  • Reduces waste through effective scrap dough recycling and reuse.
  • Increases safety and sanitation with interlocked guards and easy-clean design.
  • Optimizes product quality with adjustable pressure and conveyor speeds.
  • Supports versatile production with customizable die rolls for complex shapes.

General


Applications
Cookies,Biscuits,Stackable chip,Snacks,Expanded snack,Popped snack,Fried potato ring,Crackers,Baked pet food,Baked granola
End products
Dog biscuits,Cheddar cheese crackers,Granola bars,Rice cakes,Potato rings,Pringles-style potato chips,Popcorn snacks,Shortbread cookies,Pretzel bites
Steps before
Mixing,Dough Handling,Dough Sheet Preparation
Steps after
Baking,Drying,Cooling,Packaging
Input ingredients
dough sheet,scrap dough
Output ingredients
cut product shapes,scrap dough
Market info
Reading Bakery Systems is renowned for its expertise in designing and manufacturing innovative industrial bakery equipment, particularly for snack food production, combining advanced technology and industry knowledge to enhance productivity and quality.

Technical Specifications


Product shape accuracy
Precise cutting of distinct shapes
Die rolls configuration
Two or more die rolls
Scrap removal system
Integrated and mounted on discharge end
Dough sheet thickness
0.89mm (.035") to 1.65mm (.065")
Adjustable pressure
Yes,during operation
Die roll materials
Engraved bronze,coated metals,plastic cups
Automation level
Local touchscreen interface
Control system integration
Automatic control of roll and conveyor speeds
Production synchronization
Cascade control for adjacent equipment

Operating Characteristics


Working Mechanism
Integrated conveyor with rotating die assembly
Pressure Adjustment
Adjustable pressure on dough sheet
Die Roll Configuration
Two or more die rolls or independent use
Scrap Removal System
Integrated scrap removal system
Batch vs. Continuous Operation
Continuous
Automation Level
Automatic control of roll and conveyor speeds
Shape Production
Complex shape production possible
Thickness Range
0.89mm to 1.65mm dough sheet thickness

Material Compatibility


Abrasion resistance
Yes
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
Coated metals
Density/particle size
Compatible with .89mm to 1.65mm dough sheets

Product type Characteristics


Sheet Thickness
0.89mm to 1.65mm
Shape Complexity
Simple / Complex
Die Material
Bronze / Coated Metal / Plastic
Scrap Removal
Integrated System
Product Shape
Custom Patterns
Pressure Adjustment
Adjustable
Conveyor Gap
Adjustable

Physical Characteristics


Die roll materials
Engraved bronze,coated metals,plastic cups
Conveyor/Die roll gap
Adjustable
Dough sheet thickness
.89mm (.035") to 1.65mm (.065")
Scrap removal system
Integrated
Die roll configuration
Two or more die rolls

Custom Options


Control Systems
Local touchscreen interface terminal
Scrap Removal System
Integrated and customizable
