Powder ingredient vibro separator and filter
Effortlessly achieve uniform powder consistency and enhance flow efficiency by eliminating lumps with state-of-the-art vibro separation, perfect for optimizing your pre-processing operations in high-speed production environments.
Sifts and Filters Powdered Ingredients Efficiently

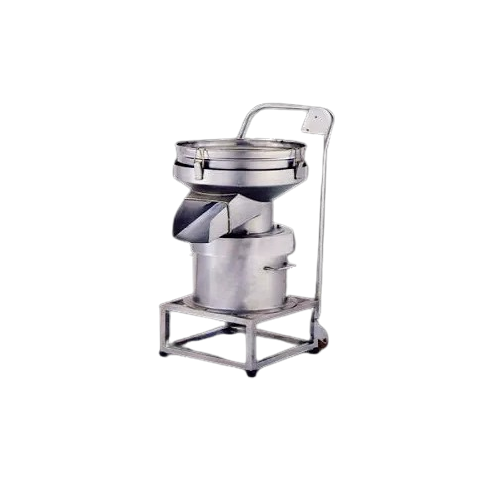

The NS-450 Noiseless Vibro Separator and Filter from ANKO revolutionizes your processing line by effectively sifting and filtering powdered ingredients, vital for producing varied food items like dumplings, spring rolls, and samosa pastry sheets. It leverages a vibrating system to process up to 200 kilograms per hour, optimizing throughput and ensuring consistent quality. Made with food-grade stainless steel #304, it maintains high hygiene standards and durability. The compact design allows seamless integration into pre-processing stages, with easy-to-change screens for minimal downtime. Ideal for food manufacturers focused on efficiency, this machine meets diverse production needs with precision and reliability.
Benefits
- Enhances production efficiency by processing up to 200 kg of powdered ingredients per hour.
- Maintains high hygiene standards with stainless steel #304 construction.
- Integrates smoothly into existing production lines with compact design.
- Saves time with quick and easy screen changes.
- Minimizes operational noise, contributing to a quieter work environment.
- Applications
- Chapati,Pastry sheets,Samosa,Shumai,Dumplings,Spring rolls,Vegetarian cuisine,Frozen foods
- End products
- Organic fried spring rolls,Samosa pastry sheets,Paratha bread,Handmade look dumplings,Tapioca pearls,Kibe (kibbeh),Vegetarian spring rolls
- Steps before
- Powder preparation,Ingredient measuring,Ingredient blending,Storage
- Steps after
- Material handling,Packaging,Further processing,Quality control
- Input ingredients
- powdered ingredients,lumps
- Output ingredients
- sieved ingredients,filtered powder
- Market info
- Capacity
- 200 kg/h
- Dimensions
- 650 (L) x 520 (W) x 1,040 (H) mm
- Power
- 0.38 kW
- Screen mesh
- 30 mesh (aperture of 0.647 mm)
- Material
- Stainless steel #304
- Weight (net)
- 50 kg
- Weight (gross)
- 100 kg
- Sieve Diameter
- 450 mm
- Working mechanism
- Vibration system
- Automation level
- Automatic
- Batch vs. continuous operation
- Continuous
- Changeover time
- Quick screen change
- Cleaning method
- Manual
- Capacity
- 200 kg/hr
- Energy efficiency
- N/A
- Abrasion resistance
- Yes
- Biological compatibility
- Food-grade
- Cleanability
- Easy to clean
- Corrosive resistance (e.g. acids)
- Yes,304 stainless steel
- Density/particle size
- Compatible with fine powders
- Machine Footprint
- 650 mm (L) x 520 mm (W) x 1,040 mm (H)
- Sieve Diameter
- 450 mm
- Screen Mesh Aperture
- 0.647 mm (30 mesh)
- Material
- Stainless Steel #304
- Weight (Net / Gross)
- 50 kg / 100 kg
