Poultry dual-cascade cooling system

Enhance your poultry processing line with precise chilling that solidifies fats and reduces bacterial loads, ensuring premium product quality and efficiency.

Chills and Congeals Fat in Poultry Processing

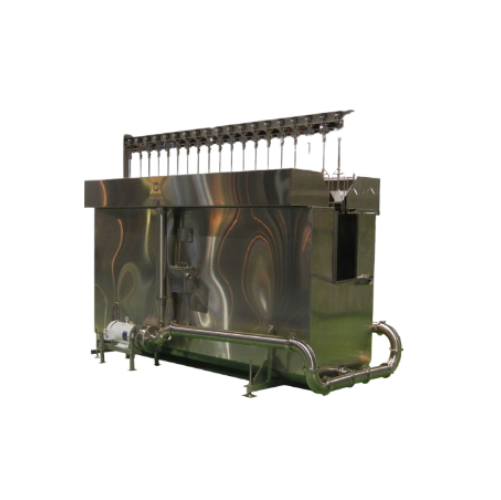

The DCC-1 Dual-Cascade Cooler from Prime Equipment Group is engineered to improve the chilling efficiency of poultry processing lines. It effectively cools chickens immediately after the final picking stage by using a cascade system that congeals emulsified fat, enhancing yield by up to 0.60%. The cooler employs an efficient design that utilizes chiller overflow water, reducing water cooling costs. With models available in single- and dual-bank configurations, it is adaptable to various line speeds and capacities, seamlessly integrating into continuous poultry, meat, and seafood operations. Equipped with (2) 5 hp motors and operating at 230/460/480V, it supports a wide range of industrial power requirements. The rugged construction ensures durability, while its integration into existing systems is straightforward, offering both operational efficiency and product quality improvements.

Benefits

  • Enhances yield by up to 0.60% through effective fat congealing.
  • Reduces operational costs with efficient water usage from chiller overflow.
  • Lowers bacterial contamination levels, improving product safety.
  • Seamlessly integrates into existing processing lines, boosting overall efficiency.
  • Supports varying production needs with customizable single- and dual-bank models.

General


Applications
Seafood,Meat,Chicken processing,Poultry
End products
Emulsified chicken products,Pre-chilled meat cuts,Pre-chilled whole chickens,Processed poultry meat,Pre-chilled seafood fillets,Pre-chilled chicken parts
Steps before
Defeathering,Hock Cutting,Picking,Scalding
Steps after
Chilling,Portioning,Slicing,Freezing,Proofing
Input ingredients
picked poultry,emulsified fat,chiller overflow water
Output ingredients
cooled poultry,solidified fat,reduced bacteria counts,enhanced WOG yield
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Electrical Requirements
(2) 5 hp motors
230/460/480V,3 ph,60 Hz,10 amps
Water Requirements
(1) 4″ sanitary (x GPM)
(1) 1 1/2″ pump line (X GPM)
Net Weight
2,000 lbs.
Production Rate
Variable with line speed

Operating Characteristics


Working mechanism
Dual-cascade cooling
Chilling method
Uses chiller overflow water
Fat congealing
After scalding and picking process
Operation type
Batch/Inline
Cooling efficiency
Improves yield up to 0.60%
Water usage
4" sanitary line and 1 1/2" pump line
Bacteria reduction
Reduces pre-chill bacteria counts
Line speed
Variable with production rate

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Net Weight
2,000 lbs
Machine type
Single- and dual-bank models

Custom Options


Control panel type
PLC-controlled
Model options
Single- and dual-bank models
Integration possibilities
Compatible with existing chilling lines
