Pharmaceutical twin screw extruders

Optimize the mixing and extrusion of active pharmaceutical ingredients with unmatched precision and flexibility, ensuring enhanced bioavailability and innovative controlled-release formulations for medical applications.

Processes APIs and Solid Dosage Forms

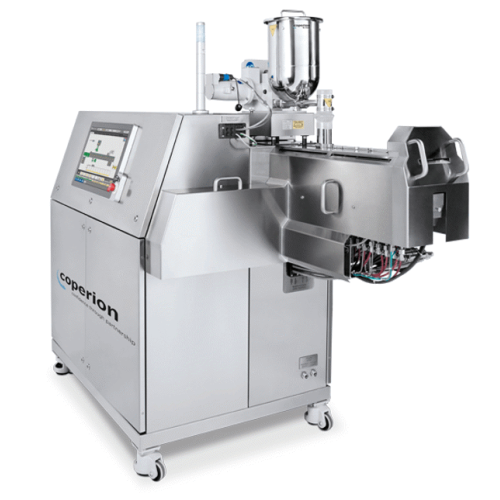

The ZSK Pharma Twin Screw Extruders from Coperion are engineered to enhance the continuous processing of active pharmaceutical ingredients (APIs) and solid dosage forms. Featuring a modular design, these extruders provide flexibility in processing with adjustable barrel and screw configurations, ensuring precise mixing and controlled temperatures to prevent API degradation. Ideal for producing controlled-release tablets, sustained-release capsules, and transdermal drug delivery patches, they are instrumental in pharmaceutical applications requiring high levels of dispersion and encapsulation. The ZSK Pharma Extruders offer specific torque of up to 18 Nm/cm³, accommodating high throughput while maintaining product integrity. Integrated with PLC control systems that comply with CFR Part 11, they facilitate seamless automation and easy scale-up from R&D to full-scale production. Constructed in GMP-compliant stainless steel with FDA-compliant lubricants, these extruders ensure reliability and safety. The self-cleaning twin screws and compact design allow for quick operation, reduced maintenance, and minimal space requirements, supported by Coperion’s extensive engineering expertise and after-sales service network.

Benefits

  • Enhances API bioavailability with precise, controlled mixing and dispersion.
  • Minimizes product degradation through specific torque, optimizing throughput without excessive temperatures.
  • Supports efficient scale-up from laboratory to production, ensuring consistent product quality.
  • Reduces maintenance time with self-cleaning screws and quick access components.
  • Ensures compliance and safety with GMP design and FDA-compliant materials.

General


Applications
Biodegradable implants,Medical adhesives,Active pharmaceutical ingredients (apis),Transdermal patches,Biopharmaceuticals,Medical implants,Solid dosage forms,Pharmaceuticals
End products
Wound closure strips,Biodegradable contraceptive implants,Transdermal drug delivery patches,Solid implants with active ingredients,Stoma care adhesives,Bioavailability-enhanced api dispersions,Controlled-release tablets,Sustained-release capsules
Steps before
Automated Batch Dispensing,Vacuum Conveying
Steps after
Tablet Coating,Encapsulation,Taste Masking,Degassing,Granulation for Capsule Filling,Pelletizing
Input ingredients
pharmaceutical active ingredients,APIs,solvent-free solid dispersions,solids solutions,water for degassing,adhesives for transdermal plasters,medical plastics
Output ingredients
enhanced bioavailability APIs,solid dosage forms,controlled/sustained release APIs,de-gassed products,encapsulated APIs,taste masked formulations,granules for capsule filling,extrudates for transdermal plasters,extrudates for medical applications,biodegradable implants,contraceptive rings,wound plasters,butterfly closures
Market info
Coperion is known for its expertise in manufacturing industrial compounding and extrusion equipment, bulk materials handling systems, and services for various industries, such as plastics, chemicals, and food processing, with a strong reputation for innovative engineering solutions and customer support.

Technical Specifications


Screw diameter
18 mm
Specific torque
11.3 Nm/cm³
Maximum screw speed
1,200 min-1
Maximum motor power
10-135 kW
Throughput rates
1-10 kg/h
Modular design
Exchangeable screw elements
Barrel length
15 barrels (60 D)
Torque per shaft
38 Nm (for ZSK 18 MEGAlab)
Flight depth
3.2 mm
Design
GMP design
Documentation
Complete process documentation (V-lifecycle)
Automation
PLC control and touch screen

Operating Characteristics


Batch vs. continuous operation
Continuous
Automation level
PLC / SCADA
Cleaning method
CIP
Changeover time
Quick-release couplings
Energy efficiency
High torque for minimized API degradation

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel construction
Cleanability
GMP compliant,easy access for cleaning
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact Design
Compact design
Modular Construction
Screw diameter
18 mm
Screw configuration
Twin Screw,Co-rotating
Process section length
Up to 15 barrels (60 D)
Barrel design
Modular,Stainless Steel

Custom Options


Modular barrel design
Customized process length (L/D)
Modular screw design
Broad selection of screw elements
Control panel type
PLC control and touch screen
Cooling system
Integrated water cooling system
Base frame type
Mobile stainless steel base frame
Documentation
Complete process parameter documentation (V-lifecycle)
