Pharmaceutical metal detector for powder and granule inspection

Ensure product integrity by efficiently detecting metal contaminants in high-speed, continuous pharmaceutical and nutraceutical powder operations.

Detects Metal Contaminants in Powders and Granules

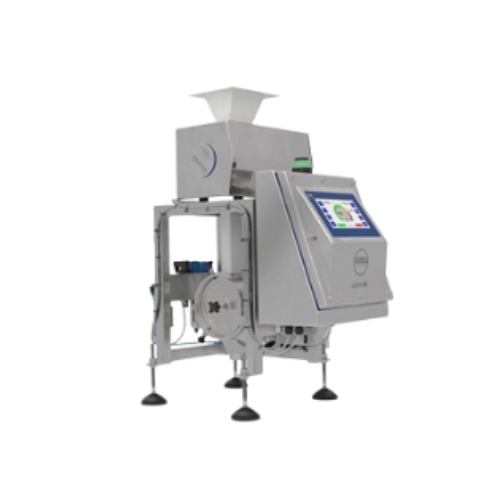

The IQ4 LOCK-PH Vertical Fall from Loma Systems is an essential metal detection system designed for the pharmaceutical and nutraceutical industries. This specialized equipment detects metal contaminants in powders and granules with high throughput, capable of processing up to 3000 kg per hour, ensuring batch integrity and compliance. It features a 7” touchscreen interface for simple operation and storage of up to 200 pre-sets, making it adaptable to various product formulations. The system supports continuous, high-speed manufacturing environments, and its construction in mirror-polished stainless steel ensures easy cleaning, maintaining GMP compliance. Equipped with IP66 washdown capabilities and automated learning functions, this detector offers robust performance and low maintenance in critical production lines, serving manufacturers of products such as paracetamol tablets, vitamin supplements, and protein powders.

Benefits

  • Ensures product quality and safety by reliably detecting metal contaminants during high-speed processing.
  • Reduces setup time with auto-learn and 200 pre-set storage capabilities.
  • Facilitates compliance with full IQ, OQ, and PQ validation documentation.
  • Simplifies maintenance with a fully GMP-compliant, easy-to-clean design.
  • Enhances operational efficiency with Ethernet and USB connectivity for seamless integration.

General


Applications
Nutraceuticals,Pharmaceutical powder,Supplements,Pharmaceuticals
End products
Fish oil supplements,Probiotic capsules,Vitamin d granules,Magnesium powder,Herbal supplements,Protein powder,Calcium tablets,Antacid tablets,Vitamin c capsules,Paracetamol tablets
Steps before
Purification,Drying,Grinding
Steps after
Sterilization,Packing
Input ingredients
powders,granules
Output ingredients
inspected powders,inspected granules
Market info
Loma is known for manufacturing industrial inspection equipment, specializing in metal detection, checkweighing, and X-ray inspection systems, widely used in the food, pharmaceutical, and packaging industries for quality control and ensuring product safety and compliance.

Technical Specifications


Throughput
Up to 3000 kg/h
Touchscreen Size
7”
Power Supply Voltage
85 to 265 V,single phase 50/60Hz
Power Consumption
20 VA
Temperature Range
-10 to +40 °C (14 to 95 °F)
Humidity
0 to 95% Relative Humidity (Non-condensing)
IP Rating
IP66
Material of Construction
304 mirror polished stainless steel
Reject Material
316 mirror polished stainless steel
Frequency
1 MHz

Operating Characteristics


Throughput capacity
Up to 3000 kg/h
Automation level
Auto Learn for self-set-up and calibration
Cleaning method
Easy to clean
Validation documents
IQ,OQ,PQ provided
Batch vs. continuous operation
Inline Continuous
User interface
7” Touchscreen
Maintenance features
Simple maintenance

Material Compatibility


Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
316 stainless steel
Density/particle size
Suitable for powders and granules


GMP Compliance
Yes
IP66 Rating
Yes
IQ,OQ,PQ Validation
Yes

Physical Characteristics


Machine footprint
Compact design
Material of Construction
304 mirror polished stainless steel with 316 mirror polished stainless steel reject
Touchscreen size
7 inches
Finish
Mirror polished finish

Custom Options


Control panel type
7” Touchscreen
Auto Learn Functionality
Yes
Integration Capabilities
Ethernet,USB
Material Compatibility
304/316 Mirror Polished Stainless Steel
IP Rating
IP66
Validation Documents
IQ,OQ,PQ
