Pharmaceutical lyophilization for large-scale production

Ensure precision in pharmaceutical freeze drying with controlled nucleation, reducing cycle times and enhancing product uniformity for critical drug formulations.

Processes Pharmaceuticals with Controlled Lyophilization

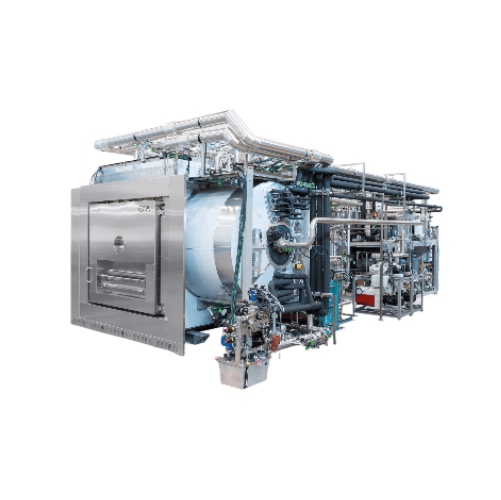

The LYOVAC Pharma Freeze Dryer from GEA specializes in industrial-scale lyophilization for pharmaceuticals, ensuring uniform processing of delicate formulations like vaccines and protein-based drugs. Using a unique shelf design and controlled nucleation technology, it offers precise freezing, drying, sublimation, and desorption. This equipment integrates seamlessly with automatic loading and unloading systems, minimizing contamination risks and optimizing throughput. It supports the production of lyophilized products in varied formats, achieving high consistency and efficiency. Engineered with solvent and energy-saving capabilities, the LYOVAC meets GMP standards and is available with options for customization, including material choices for compliance with pharmaceutical regulations.

Benefits

  • Enhances product uniformity and quality with controlled nucleation technology.
  • Shortens drying times, improving production efficiency and throughput.
  • Minimizes contamination risks with automated loading and unloading systems.
  • Adapts easily to existing systems with customizable configurations.
  • Ensures regulatory compliance with GMP standards.

General


Applications
Pharmaceuticals,Freeze-dried products,Lyophilized products,Biopharmaceuticals,Potent pharmaceuticals,Pharmaceutical formulations
End products
Hormone therapies,Vaccines,Protein-based drugs,Antibodies,Monoclonal antibodies,Freeze-dried antibiotics,Enzyme formulations,Freeze-dried plasma,Oncological drugs,Lyophilized injectables
Steps before
Solution preparation,Filling vials,Cooling
Steps after
Packaging,Sterilization,Inspection and quality control
Input ingredients
Output ingredients
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Production Area
1–60 m²
Condenser Capacity
More than 1000 kg
Arrangement
Single or multiple floors
Automation
State-of-the-art with virtual servers
Refrigeration
Compressors,LN2,natural refrigerants
Shelf Design
Ensures high drying rates and uniform results
Drying Stages
Freezing,primary drying,secondary drying
Nucleation Temperature
–5 to –20 °C
Controlled Nucleation
LYOSPARK® technology
Process Stages
Freezing,Primary Drying,Secondary Drying
Process Time
Less than a year for Fast Track delivery
CIP/SIP
Quick subprocess turnaround times
Loading and Unloading System
Automatic (ALUS®)
Containment Options
Isolators,Cleanrooms,RABS
Processing Capabilities
Highly potent,solvent processing
Ice Crystal Nucleation
Controlled with LYOSPARK®

Operating Characteristics


CIP/SIP
CIP 121°C / SIP 135°C
Batch vs. continuous operation
Batch
Automation level
State-of-the-art automation options with virtual servers
Changeover time
Quick subprocess turnaround times

Material Compatibility


Biological compatibility
Yes
Cleanability
CIP/SIP compliant
Corrosive resistance (e.g. acids)
Stainless steel construction

Product type Characteristics


Pharmaceutical lyophilizer
LYOVAC® Pharma Freeze Dryer

Physical Characteristics


Machine footprint
1–60 m²
Production area size
1–60 m²
Condenser capacity
More than 1000 kg
Shelf design
Unique for high drying rates and uniform results
Condenser orientation
Under drying chamber/side/behind
System arrangement
Single-floor or multiple-floor

Custom Options


Freeze Dryer Arrangement
Single or Multiple Floors
