Pharmaceutical isolator for contamination control

Ensure sterility and safety in pharmaceutical manufacturing with advanced isolation and contamination control, vital for handling high-potency ingredients and maintaining aseptic environments throughout critical processes like filling and dispensing.

Ensures Sterile Containment and Decontamination

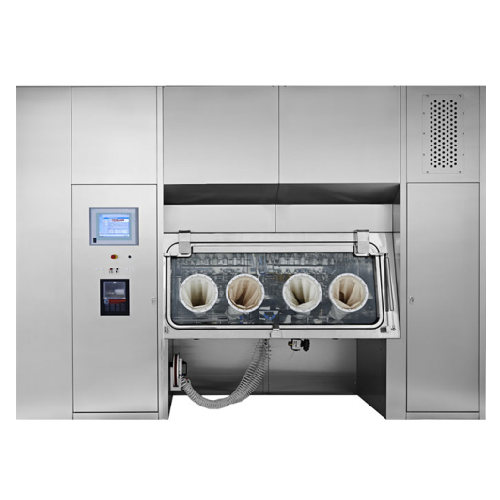

The FCIS Pharmaceutical Isolator from Fedegari is engineered to address the stringent requirements of contamination control in biopharmaceutical environments. This isolator utilizes Fedegari’s proprietary Hydrogen Peroxide Vaporizer (FHPV) to maintain sterile conditions essential for aseptic filling and handling of high-potent ingredients. It employs a barrier system to separate operators from sensitive processes, ensuring compliance with FDA and GMP standards. The FCIS is designed for high-value formulations like sterile injectable drugs and APIs for vaccines. Its modular design can be customized, and the Thema4 process controller facilitates integration with SCADA systems. The unit features AISI stainless steel chambers with a double-gasket system for safety and H14 HEPA filters for air filtration. Operating within a grade A environment, it minimizes cross-contamination risks and operational costs by excluding proprietary consumables.

Benefits

  • Ensures aseptic environments, reducing contamination risk in sterile product manufacturing.
  • Lowers operational expenses by eliminating the need for proprietary consumables.
  • Customizable design fits specific process requirements, enhancing flexibility.
  • Provides process repeatability with constant vapor concentration monitoring.
  • Meets international regulatory standards, facilitating global pharmaceutical compliance.

General


Applications
Api,Biopharmaceuticals,Pharmaceutical powder,High potent ingredients
End products
Sterile injectable drugs,Active pharmaceutical ingredients (apis) for vaccines,Antibody-drug conjugates,Biologic drug formulations,Hormonal tablets,High-potency active pharmaceutical ingredients (hpapis),Chemotherapy medications
Steps before
Biohazard handling,Powder dispensing,Preparation of API,Material transfer
Steps after
Aseptic filling,Sterile unloading,Contamination control,Product packaging
Input ingredients
API,High Potent Ingredients,Containers,Material
Output ingredients
Sterile materials,Aseptic products,Decontaminated surfaces
Market info
Fedegari is known for manufacturing high-quality sterilization and contamination control equipment for the pharmaceutical and biotech industries, offering engineered-to-order solutions with a strong reputation for innovation, reliability, and customer support.

Technical Specifications


Material
AISI stainless steel
Surface Finishing
Bright annealed (Ra ≤ 0.4 μm)
Pressure Decay Leak Test
Integrated
Filtration System
H14 HEPA filter
Hydrogen Peroxide Vaporizer
Fedegari HPV
Vapor Concentration Monitoring
± 15 ppm
Doors Protection
Double gaskets system
Automation
Thema4 Process Controller

Operating Characteristics


Working mechanism
Isolation with barrier technology
Integrated steps
Automatic decontamination cycle
CIP/SIP capability
Integrated Hydrogen Peroxide Vaporizer (HPV)
Batch vs. continuous operation
Batch
Automation level
Thema4 process controller,PLC
Airflow control
Filtered by H14 HEPA filter
Cleaning method
Chemical decontamination with H₂O₂
Contamination Control
Aseptic barrier isolation

Material Compatibility


Biological compatibility
FDA,EMA,WHO compliance
Cleanability
Easy to clean due to stainless steel
Corrosive resistance (e.g. acids)
AISI stainless steel
Abrasion resistance
Smooth surface with bright annealed finishing


GMP Compliance
EU cGMP,US cGMP,WHO
FDA Materials
Compliant for non-metallic components in contact with process fluids
EN Standards
EN 55011,EN IEC 61000-4-2,EN IEC 61000-4-4,EN IEC 60204-1
European Directives
2014/30/EU,2014/35/EU,2006/95/EC
UL Certification
UL 508A,UL 61010-1
NFPA Standards
NFPA-79,NFPA 70

Physical Characteristics


Chamber material
AISI stainless steel
Surface finishing
Bright annealed,Ra ≤ 0.4 μm
Door sealing system
Double gaskets
Modular design
Customizable and modular unit
Size classification
ISO5 US cGMP grade area (A)

Custom Options


Modular design
Customizable and modular unit manufactured according to customer's needs
Control panel type
Thema4 process controller
Integration possibilities
Integration with Thema4,SCADA,and MES systems
Storage configuration
Bespoke racking and storage to suit customer’s application
