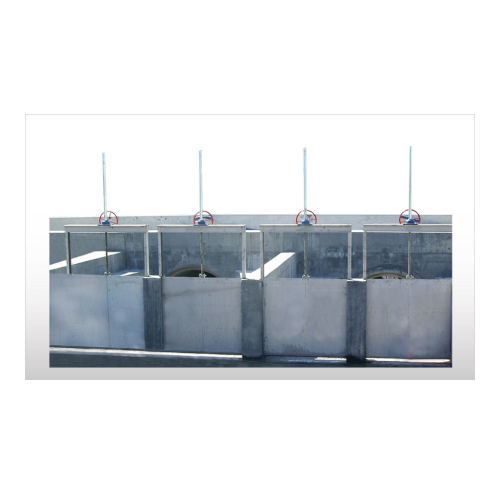

Penstock for wastewater treatment

Efficiently control and isolate water flow in your wastewater treatment facility, ensuring seamless operations and maintaining optimal levels of cleanliness and safety.

Controls and Isolates Waste Water Flow

The Penstock PAR from WAMGROUP is engineered to provide reliable flow control and isolation in municipal and industrial waste water treatment applications. This robust penstock features a steel frame and gate with a neoprene sealing system, ensuring minimal leakage during operation. The equipment is versatile, with applications ranging from municipal waste water and sludge treatment to managing effluents in the beverage and food processing industries. With its capability to handle various sizes up to 2m x 2m, it includes manual and electric actuator options for continuous operation. Designed for durability, it is available in hot dip-galvanized carbon steel, 304L, or 316L stainless steel for corrosion resistance. Equipped with a gear reduction unit and optional electric actuators, the Penstock PAR is an efficient solution for controlling water levels and flow rates in complex waste management systems. Maintenance is simplified through its user-friendly design, and its installation accommodates both circular and rectangular openings, integrating seamlessly into existing infrastructure.

Benefits

  • Enhances system reliability by ensuring secure isolation in treatment processes.
  • Reduces maintenance costs with a durable, corrosion-resistant design.
  • Versatile integration into varied infrastructural openings, lowering adaptation costs.
  • Increases operational efficiency with optional electric actuators for automated control.
  • Supports diverse waste management needs across multiple industries, ensuring broad applicability.

General


Applications
Manure treatment,Sludge treatment,Clean water treatment,Paper processing waste water,Municipal waste water treatment,Vegetable processing waste water,Industrial waste water treatment,Industrial solid waste handling,Starch,Animal by-products handling,Tanneries waste water,Beverage industry waste water,Incinerators,Plastics recycling industry waste water,Dyeing works,Food processing waste water,By-products processing,Abattoirs waste water,Pulp,Fruit
End products
Treated industrial wastewater,Clarified food processing wastewater,Dehydrated sludge,Clarified fruit and vegetable processing wastewater,Treated slaughterhouse wastewater,Clarified beverage production wastewater,Treated manure,Ash from incinerators,Potable water,Processed dye wastewater,Treated tannery wastewater,Processed starch effluent,Processed animal by-products,Processed industrial solid waste,Recycled plastics,Recycled paper and pulp waste,Treated municipal wastewater
Steps before
Water Collection,Wastewater Inflow,Preliminary Treatment,Screening,Grit Removal
Steps after
Water Level Control,Flow Rate Adjustment,Sludge Treatment,Effluent Disposal,Environmental Discharge
Input ingredients
municipal waste water,industrial waste water,water flow,equipment to be isolated
Output ingredients
isolated equipment,regulated water level,controlled flow rates,waste water redirected
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Gate size
Up to 2 m wide,2 m high
Sealing system
3 or 4 side,neoprene hardness 60 Shore
Gate thickness
6 mm
Stem thickness
Minimum 30 mm
Construction material
Hot dip-galvanized carbon steel / 304 L / 316 L SS

Operating Characteristics


Working Mechanism
Manual / Electric Actuator
Control System
Manual Drive / Control Wheel / Electric Actuation
Automation Level
Manual / PLC
Flow Control
Water Level / Flow Rate Control
Batch vs. Continuous Operation
Batch
Sealing System
3 or 4 Side Neoprene Sealing

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
Stainless Steel 304L/316L
Density/particle size
0.5–2.5 g/cm³

Physical Characteristics


Gate size
Up to 2 m wide and 2 m high
Gate thickness
6 mm
Frame material
Hot dip-galvanised carbon steel / 304 L / 316 L SS
Sealing system
3 or 4 side neoprene sealing (60 Shore)
Stem thickness
Minimum 30 mm

Custom Options


Gate Size
Up to 2 m wide and 2 m high
Sealing System
3 or 4 side neoprene sealing
Material
Hot dip-galvanised carbon steel / 304 L / 316 L SS
Drive System
Manual and gear reduction with electric actuator
Frame Installation
Wall or enclosed in concrete channel
Electric Actuator Options
ON/OFF,4-20 mA signal,Profibus inverter
Control Accessories
Hand wheel,limit switch,torque limit switch,position sensor
