Pelletizer for temperature and shear-sensitive plastics

Optimize your production line efficiency with a pelletizing solution designed to handle temperature and shear-sensitive plastics, ensuring precise control and consistent quality across diverse applications.

Pelletizes and Cuts Shear-Sensitive Plastics

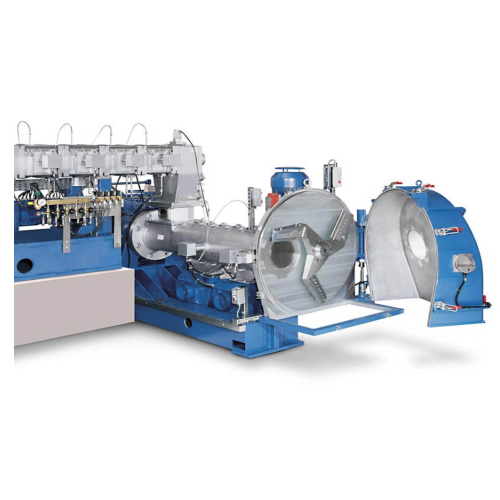

The Eccentric Pelletizer EGR from Coperion is engineered for precision in processing temperature and shear-sensitive plastics. Featuring an ergonomically designed knife rotor, it efficiently pelletizes materials like soft PVC and elastomer compounds used in electrical conduit pipes and insulated wire coatings. Connected directly to the ES-A single shaft discharge screw, it ensures consistent material flow and optimal pressure build-up before the die plate. The pelletizer boasts adjustable knife speeds for precise control over pellet length and integrates seamlessly with existing production lines in continuous, automated operations. Its quick-release die plate simplifies maintenance, and the optional water mist system minimizes pellet sticking. With a range of motor power options and customizable die hole configurations, the EGR adapts to varied processing needs, making it ideal for industries such as bioplastics and PVC processing.

Benefits

  • Ensures product quality with gentle material handling for shear-sensitive plastics.
  • Streamlines cleaning process with quick-release die plate, reducing downtime.
  • Adapts to diverse production needs with customizable die configurations.
  • Enhances operational efficiency through precise control of pellet length.
  • Integrates into continuous production lines, minimizing labor and maintenance costs.

General


Applications
Shear-sensitive plastics,Soft pvc,Cable compounds,Temperature-sensitive plastics,Hard pvc,Elastomer compounds,Hffr recipes
End products
Weather-resistant window profiles,Thermoplastic elastomer gaskets,Electrical conduit pipes,Industrial cable jackets,Automotive wire harnesses,Medical iv bags,Insulated wire coatings,Sheathing for electrical cables,Vinyl flooring tiles,Flexible hose tubing
Steps before
Compounding,Heating,Pressure Building
Steps after
Cooling,Packaging,Quality Control
Input ingredients
soft PVC,hard PVC,HFFR recipes,elastomer-based compounds for cables
Output ingredients
temperature-sensitive plastic pellets,shear-sensitive plastic pellets
Market info
Coperion is known for its expertise in manufacturing industrial compounding and extrusion equipment, bulk materials handling systems, and services for various industries, such as plastics, chemicals, and food processing, with a strong reputation for innovative engineering solutions and customer support.

Technical Specifications


Motor power
1.5–7.5 kW
Pelletizer type
Eccentric
Material handling type
Gentle
Compatible materials
Soft PVC,hard PVC,HFFR,elastomers
Pressure build-up
Gentle through ES-A single shaft discharge screw
Die plate cleaning
Quick and easy removal
Die plate heating
Die-cast ring heater
Knife rotation
Eccentric knife rotor
Knife blade speed variation
Continuously adjustable
Water mist system
Available for some applications
Pellet length control
By adjusting knife speed
Customization
Die hole geometry and size
Low-cost maintenance
Yes
Application
Temperature and shear-sensitive plastics

Operating Characteristics


Material handling
Gentle in pressure build-up zone
Die flow
Even
Cleaning method
Fast,convenient
Cleaning method
Quick die plate removal
Pelletizing type
Soft PVC,hard PVC,HFFR
Operation mode
Continuous
Pellet adjustment
Knife blade speed variation
Pellet stick prevention
Water mist spray

Material Compatibility


Temperature sensitivity
Temperature-sensitive plastics
Shear sensitivity
Shear-sensitive plastics
Soft PVC compatibility
Yes
Hard PVC compatibility
Yes
HFFR material compatibility
Yes
Elastomer-based compounds
Low,medium,and high voltage cables

Product type Characteristics


Voltage cable compounds
Low,medium,high

Physical Characteristics


Die plate design
Adapted individually
Die hole diameter
Customizable
Knife rotor design
Ergonomically designed,eccentrically arranged
Pelletizer knife speed
Continuously adjustable
ES-A shaft to die plate distance
Adjustable

Custom Options


Discharge method
Single shaft discharge screw
Die configuration
Adjustable distance between shaft and die plate
Die heating type
Die-cast ring heater
Knife rotor design
Ergonomically designed,eccentrically mounted
Knife blade speed
Continuously adjustable
