Pellet press for Xrf analysis

Ensure precise spectral analysis with strong, smooth-surfaced pellets by utilizing adjustable pressure control, enabling stable pellet formation for complex materials in laboratory settings.

Produces High-Density Pellets for Spectral Analysis

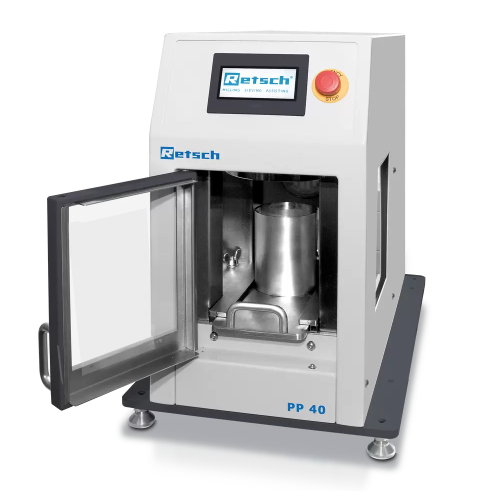

The Pellet Press PP 40 from Retsch is a benchtop solution that excels in creating high-density, smooth-surface pellets essential for reliable XRF analysis. Designed with an individual pressure force regulation up to 40 tons, it efficiently compacts difficult materials in steps, ensuring optimal stability and accuracy. Ideal for applications across chemistry, construction, geology, and more, the PP 40 can handle diverse materials from cement to geological samples with ease. Its automatic pressure control and parameter memory for 10 SOPs streamline operations, while integration into existing lab setups is seamless with its compact design. Available with various tooling options for specific material requirements, it addresses diverse industry needs in a user-friendly package.

Benefits

  • Ensures precise spectral analysis by producing high-quality, smooth pellets.
  • Adapts to various materials with customizable pressure settings, enhancing versatility.
  • Increases operational efficiency with automatic pressure control and parameter storage.
  • Saves lab space with a compact, benchtop design.
  • Supports diverse research and industrial applications, from geology to construction.

General


Applications
Cement,Ceramics,Raw materials,Construction materials,Metallurgy,Geology,Ores,Glass,Environment,Plastics,Minerals,Recycling,Slag
End products
Slag pellets,Raw material pellets,Metallurgical test nuggets,Polymer compacts,Cement pellets,Geological core samples,Recycled material briquettes,Concrete samples,Iron ore pellets,Mineral ore pellets,Glass test discs,Ceramic test pellets
Steps before
Grinding,Milling,Drying
Steps after
Spectral Analysis,XRF Analysis,Sample Evaluation
Input ingredients
cement,minerals,ores,raw materials,slag,sample material
Output ingredients
solid pellets,smooth surface pellets,pellets for spectral analyses
Market info
RETSCH is known for its high-quality laboratory equipment for sample preparation and particle size analysis, including mills, crushers, and sieve shakers, praised for their precision, durability, and reliability in research and industrial applications.

Technical Specifications


Maximum Pressure
40 t (0 - 343 kN)
Pressure Force Adjustment
0 to 40 tons
Pressing Method
Steel rings / Aluminium cups / Free pressing
Steel Ring Size
40 mm / 32 mm,40 mm / 35 mm,51.5 mm / 35 mm
Aluminium Cup Size
32 mm,40 mm
Pressure Steps
3 steps
Electrical Supply
100-120 V,50/60 Hz
220-240 V,50/60 Hz
Power Connection
1-phase
Dimensions (W x H x D)
335 x 495 x 570 mm
Net Weight
120 kg

Operating Characteristics


Automation level
Automatic pressure force control
Batch vs. continuous operation
Batch
Cleaning method
Manual

Material Compatibility


Density compatibility
Powder form
Pressure resistance
Up to 40 tons
Particle size compatibility
Various diameters
Corrosive resistance
Steel rings,Aluminium cups

Product type Characteristics


Field of application
Chemistry/plastics,construction materials,environment/recycling,geology/metallurgy,glass/ceramics
Application examples
Cement,minerals,ores,raw materials,slag

Physical Characteristics


Compact footprint
Benchtop model
Machine dimensions (W x H x D)
335 x 495 x 570 mm
Net weight
120 kg
Maximum pressure
40 t
Steel ring size (external Ø / internal Ø)
40 mm / 32 mm
Steel ring size (external Ø / internal Ø) 2
40 mm / 35 mm
Steel ring size (external Ø / internal Ø) 3
51.5 mm / 35 mm
Aluminium cup size (external Ø)
32 mm
Aluminium cup size (external Ø) 2
40 mm

Custom Options


Pressure force regulation
0 to 40t
Pressing steps
1 to 3 steps
Parameter combinations
10 SOPs
Footprint type
Benchtop model
Control panel type
Display for parameter setting
