Pellet oil coating unit for feed production

Enhance feed pellet nutrition and quality with precise oil, enzyme, and methionine coating for improved animal health and growth efficiency.

Sprays, Mixes, and Coats Feed Pellets

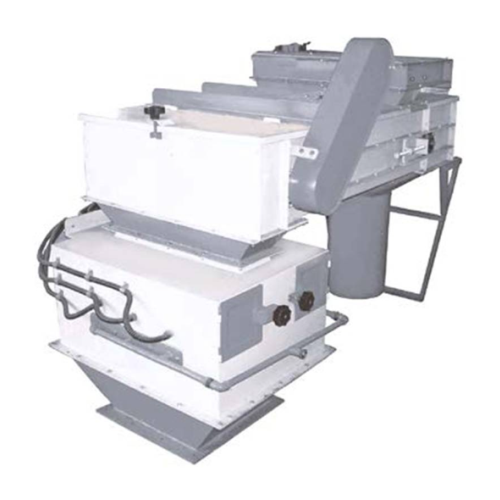

The Pellet Oil Coating Unit from Uğur Promilling is designed to elevate your animal feed production by ensuring precise and homogeneous application of oils, enzymes, and methionine onto feed pellets. Utilizing a specialized mixing screw conveyor and nozzle sprayers, this unit guarantees consistent coating for feeds such as poultry layer pellets and aquaculture diets, enhancing their nutritional value and palatability.

Operating in a continuous automated process, the unit seamlessly integrates into your existing production line, positioned after the cooler and sifter stages. It features a robust lubrication bin where the pellets receive their coating via strategically placed nozzles. This equipment is a vital component in feed manufacturing, especially for producers catering to the livestock, poultry, and aquaculture industries.

With a focus on efficiency, the Pellet Oil Coating Unit is designed for continuous operation, optimizing your throughput without sacrificing quality. Its construction ensures compatibility with various feed formulations and production environments, offering reliable performance and minimal maintenance needs. For those requiring specific configurations, customization options are available to align with your unique processing requirements.

Benefits

  • Ensures uniform nutrient coating, enhancing feed quality for livestock and aquaculture.
  • Reduces labor costs with seamless integration and automated operation.
  • Improves feed palatability and nutritional value, supporting animal health and growth.
  • Optimizes production efficiency with continuous coating capability.
  • Low maintenance design minimizes operational disruptions and downtime.

General


Applications
Feed,Animal nutrition,Poultry feed,Aquaculture feed,Livestock feed
End products
Broiler grower pellets,Dairy cattle feed pellets,Catfish feed pellets,Poultry layer feed pellets,Turkey grower pellets,Duck starter crumbles,Swine grower feed,Shrimp feed pellets,Tilapia feed pellets
Steps before
Cooling,Sifting
Steps after
Homogeneous Oiling
Input ingredients
cooled pellet,oil,liquid enzyme,methionine
Output ingredients
oiled pellet
Market info

Technical Specifications


Coating method
Spray
Automation
Automatic
Feed type
Pellet
Lubrication method
Special type mixing screw conveyor
Oil application method
Sprayed by nozzles

Operating Characteristics


Spray coating type
Oil,liquid enzyme,methionine
Coating method
Nozzle spray
Lubrication process
Homogeneous oiling with track belt feeding
Product handling
Mixing screw conveyor
Integration type
Inline with cooler and sifter

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Feed method
Tracket band feeding
Discharge method
Special type mixing screw conveyor

Custom Options


Control panel type
PLC / HMI
