Optical sorter for frozen fruit and vegetable processing

Enhance your processing line’s efficiency with high-speed sorting, ensuring food safety by detecting and removing color and shape defects, contaminants, and ensuring consistency in frozen and dried products.

Sorts and Inspects Frozen and Dried Foods

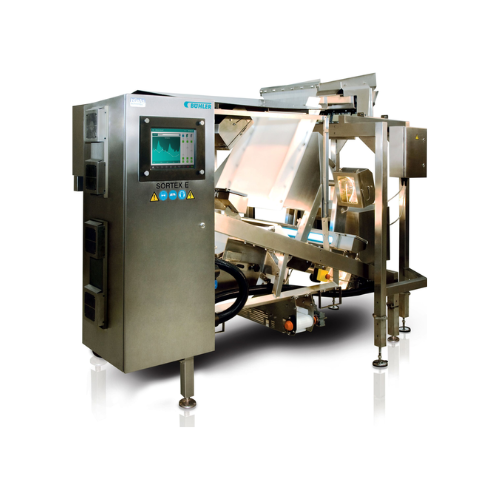

The SORTEX E1D from Bühler Group is an optical sorter expertly designed for the rigorous demands of frozen and dried food processing. It features high-resolution cameras and advanced detection technologies to precisely sort and inspect fruits, vegetables, pulses, spices, and nuts. This equipment can handle throughputs of up to 7 tons per hour, maintaining continuous, high-speed operation with minimal operator intervention. The SORTEX E1D uses proprietary shape, color, and size detection algorithms to ensure a homogeneous end product by removing contaminants and defects effectively. Its open design and stainless-steel frame facilitate easy access and cleaning, while the IP56-rated sealed doors and wash-down-protected electronics ensure durability. For enhanced integration, the machine includes SORTEX ProSortX software with machine learning capabilities, allowing flexible sorting modes tailored to varying product types. Bühler provides extensive global support, ensuring efficient maintenance and rapid service response, backed by the SORTEX Total Care SafeGuard service for real-time remote optimization.

Benefits

  • Enhances food safety by efficiently detecting and removing contaminants.
  • Increases operational efficiency with high-speed sorting and minimal operator intervention.
  • Ensures consistent product quality through precise shape, color, and size detection.
  • Facilitates easy maintenance with accessible design and protected components.
  • Offers flexibility with customizable sorting modes for diverse products.

General


Applications
Frozen fruit,Berries,Pulses,Frozen vegetables,Nuts,Spices,Vegetables,Dried fruits
End products
Frozen strawberries,Ground cumin,Canned chickpeas,Frozen carrots,Dehydrated onions,Frozen peas,Sliced almonds,Raisins,Frozen blueberries
Steps before
Freezing,Cutting,Cooling,buffering
Steps after
Packing,Palletizing,Transportation
Input ingredients
frozen vegetables,frozen fruit,frozen berries
Output ingredients
sorted frozen vegetables,sorted frozen fruit,sorted frozen berries,products without color and shape defects,products without foreign materials
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Capacity
Up to 7 tons per hour
Detection Technology
Color and shape detection
Cameras
High-resolution with filter options
Software
SORTEX ProSortX
Sorting Modes
Up to 100
Protection Rating
IP56

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Corrosive resistance
Stainless steel
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product Adaptability
Frozen vegetables,fruit,and berries

Physical Characteristics


Machine footprint
Compact design
Material
Stainless steel
Access and cleaning
Open design for easy access
Frame
Stainless-steel frame
IP rating
IP56

Custom Options


Control panel type
SORTEX ProSortX operating software
Camera type
High-resolution cameras with filter options
Detection technology
SORTEX PolarVision detection technology
Operating software customization
Up to 100 sorting modes
