Oilseed cracking mill for efficient processing

Designed for high-capacity oilseed processing, this cracking mill enhances yield efficiencies by precisely crushing seeds into optimal sizes, ensuring seamless integration upstream of flaking processes.

Cracks and Reduces Oilseed and Feedstock

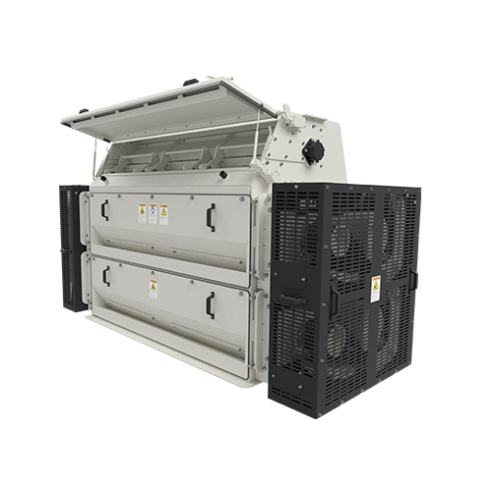

The 1400/1600/2000 Series Cracking Mill from Roskamp is engineered to meet the robust demands of oilseed and animal feed industries. This equipment is distinguished by its load-centering bearing supports and replaceable bearing slides, ensuring precise, sustained cracking performance. It features chilled cast iron rolls for consistent, high-capacity size reduction, adaptable with varied roll corrugations and speed differentials for optimized cracking of products like soybean and canola oilseeds, as well as animal feedstocks.

Capable of processing various materials such as biomass pellets and aquaculture feeds, this mill suits operations requiring continuous, adjustable throughput. The design includes a one-point roll adjustment maintaining parallel alignment throughout, enhancing both efficiency and product quality. Integration into existing systems is seamless with options like independent roll feeders and configurable drive configurations, promoting operational flexibility.

Emphasizing durability, the cracking mill uses industrial-duty adjustable motor platforms, available in left or right-side drive options. Energy consumption is reduced through efficient motor control and aerodynamic features like an axial fan for cooling drive components. Designed with maintenance in mind, it offers straightforward access to components, ensuring minimal downtime and maximized productivity.

Benefits

  • Enhances processing efficiency with precise roll adjustments, ensuring consistent product quality.
  • Minimizes operational disruptions with robust, easily replaceable components.
  • Adapts to diverse production needs with configurable roll speeds and corrugations.
  • Streamlines integration into production lines with flexible drive configurations.
  • Lowers energy usage through optimized motor control and cooling design.

General


Applications
Aquaculture,Animal feed,Ethanol,Pet food,Hemp,Food industry,Oilseed processing,Hops,Rendering,Biomass
End products
Sunflower oil,Cottonseed oil,Biomass pellets,Soy protein isolates,Hops pellets,Ethanol fuel,Fish feed,Hemp oil,Rendered animal fats,Animal feed pellets,Wheat meal for pets,Fish meal,Soybean oil,Canola oil,Flaxseed oil
Steps before
Oilseed Preparation,Particle Size Reduction
Steps after
Pelleting,Briquetting,Cooling
Input ingredients
oilseed
Output ingredients
cracked seed
Market info
CPM is known for manufacturing high-quality process equipment and technology solutions for the industrial and agricultural sectors, specializing in particle size reduction, conditioning, and pelleting solutions with a strong reputation for reliability and innovation.

Technical Specifications


Roll diameter
14",16",and 20”
Bearing support
Load-centering
Roll material
Chilled cast iron
Roll adjustment
Straight-line
Motor drive
One motor V-belt drive
Roll speed differential
Adjustable
Roll feeder
Optional with independent drive
Motor platform
Adjustable,left or right side drive
Drive configuration
"C" flow or "Z" flow
Model HP range
50 - 250 HP
Weight
10,000 lbs - 37,750 lbs
Dimensions
Width
Dimensions
Height
Dimensions
Depth
Roll bearings
Self-aligning,double-row spherical
Cheek plates
UHMW
Permanent magnets
Heavy-duty,swing out for cleaning
Roll model
Single pair (SP) or double pair (DP)

Operating Characteristics


Working mechanism
Roll corrugation and speed differential ratios
Batch vs. continuous operation
Continuous
Automation level
PLC-controlled
Changeover time
Quick adjustment with machine screw jacks
Energy efficiency
Industrial-duty motor platform
Roll adjustment
One-point roll adjustment

Material Compatibility


Abrasion resistance
Suitable for oilseeds
Corrosive resistance (e.g. acids)
Chilled cast iron rolls
Cleanability
Easy maintenance design
Density/particle size
Optimized for cracked seeds

Physical Characteristics


Machine footprint
Height
Machine footprint (Metric)
Height
Roll diameter
14",16",20”
Roll material
Chilled cast iron
Drive configuration
One motor V-belt drive
Roll feeder type
Optional roll feeder with independent drive
Model type
Single pair (SP) or Double pair (DP)

Custom Options


Roll corrugation
Adjustable
Speed differential ratios
Customizable for applications
Control panel type
MM4 Automation System
Motor platform configuration
Left- or right-side drive,"C" flow or "Z" flow
Optional feeders
Roll feeder with independent drive,Pocket feeder with independent drive
Model type
Single pair (SP) or Double pair (DP)
