Negative pressure bin vent filter for dust control

Ensure optimal air quality and operational safety by effectively capturing and filtering fine dust in your production process with a modular, easily maintainable solution designed for continuous de-dusting applications.

Filters and De-dusts In-Process Air Efficiencies

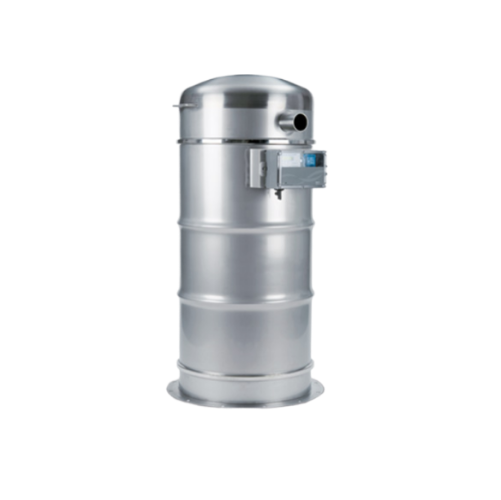

The UEB Filter ZSD from Zeppelin Systems is an engineered solution designed specifically for managing dust and air purity in industrial settings such as the rubber, food, and plastics industries. This negative pressure filter excels in the continuous filtration of conveying air, tackling the challenges of fine dust particle management with precision. Its robust stainless steel (1.4301) base plate and anti-static polyester fleece filter cartridges equipped with a PTFE membrane or aluminum coating ensure long-term durability and performance.

The UEB filter integrates seamlessly into modular production systems, offering flexibility with features like easy cartridge replacement either from above or below. It includes a removable filter head with air jet pipes for efficient clean gas chamber management, maintaining an operational integrity under negative pressures of up to 500 mbar. The filter’s effective de-dusting is powered by purified, de-oiled air compressed up to 6 bar, making it suitable for rigorous operational demands.

Additionally, it supports ATEX 2014/34/EU compliance for Zone 22 environments, incorporating options such as differential pressure monitoring and a compressed air maintenance unit for enhanced operational reliability. The equipment’s modular design facilitates straightforward integration into existing systems and ensures that it meets the specific processing needs of each application.

Benefits

  • Enhances air quality with effective fine dust filtration, ensuring a cleaner production environment.
  • Minimizes maintenance downtime with easy cartridge replacement and robust construction.
  • Integrates seamlessly into existing production lines, thanks to its modular system design.
  • Ensures operational safety in hazardous areas with ATEX compliance for Zone 22.
  • Improves filtration efficiency while reducing energy consumption with precision de-dusting technology.

General


Applications
Food industry,Chemical industry,Plastics,Rubber and tire industry,Dispersion paints
End products
Detergent powders,Pvc granules,Tire production compounds,Bakery mixes,Acrylic paints
Steps before
Conveying,Mixing,Dosing
Steps after
Storage,Packing
Input ingredients
conveying air,fine dust particles,untreated gas
Output ingredients
clean gas,purified air,de-oiled air
Market info
Zeppelin Systems excels in designing and manufacturing high-quality bulk material handling and processing equipment. Renowned for its engineering expertise, the company serves industries including plastics, chemicals, and food, ensuring efficient, reliable, and innovative solutions tailored to customer needs.

Technical Specifications


Type
Negative pressure filter
Compatibility
Modular system with anti-static filter cartridges
Material
Stainless steel (1.4301)
Pressure Tolerance
Up to 500 mbar or over
Filter cartridge
Anti-static polyester fleece with PTFE membrane or aluminum coating
Filter Class
Dust class “M” in accordance with DIN EN 60335-2-69
Compressed Air Pressure
Up to 6 bar
Control System
Integrated 24 V DC magnetic pilot valves
De-dusting Method
Purified,de-oiled air

Operating Characteristics


Filter Replacement
Above/Below
Negative Pressure Tolerance
Up to 500 mbar
Automation Level
Integrated 24 V DC Control
De-dusting Method
Purified,De-oiled Air
Container Connection
Flange Design

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel (1.4301)
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


ATEX certification
ATEX 2014/34/EU for Zone 22
Dust class certification
Dust class "M" in accordance with DIN EN 60335-2-69

Physical Characteristics


Filter housing material
Stainless steel (1.4301)
Filter shape
Cylindrical
Base plate material
Robust stainless steel (1.4301)
Installation method
Above or below replacement
Connector design
Flange
Filter head design
Removable
Compressed air system
Integrated diaphragm valves
