Neapolitan chocolate wrapping solution
Efficiently wrap and label square chocolates with this fold wrap solution, ideal for handling a variety of shapes and sizes with precision, ensuring appealing presentation for promotional and gift products.
Wraps Neapolitan Chocolates Efficiently

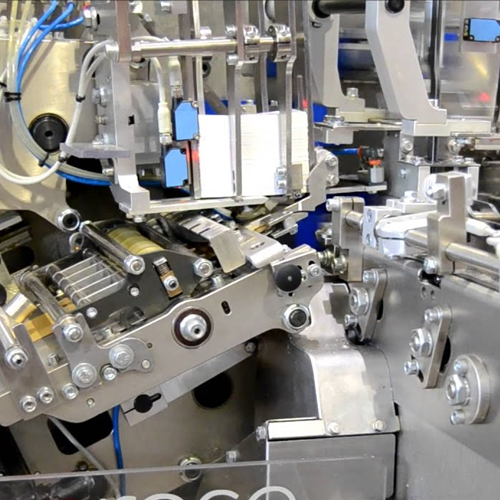

The NR10 Neapolitan Chocolate Wrapping Machine from A.M.P Rose is designed to meet the diverse packaging needs of chocolate manufacturers, confectionery producers, and corporate gift suppliers. It specializes in wrapping small square and rectangular chocolates in a fold wrap style with versatility in wrapping options, including both single and double wrappers. Utilizing pre-cut paper labels, the machine allows for flexibility in producing limited quantities, ideal for marketing promotions and corporate gifts.
Thanks to its modular construction, the NR10 can quickly adapt to varying chocolate sizes without incurring high costs. The machine operates at a rapid pace, wrapping up to 150 pieces per minute, and its user-friendly design ensures operations remain straightforward, enhancing productivity while keeping maintenance demands low.
Enhanced by a centralized lubrication system and equipped with sensors and an overload clutch, the machine upholds low running costs and minimal downtime. Its compliance with health and safety standards, alongside optional advanced features like photoelectric cell registration for printed foil and automatic feeding from the chocolate molding line, position the NR10 as a vital component in modern chocolate production lines.
Benefits
- Enhances packaging speed, wrapping up to 150 chocolates per minute.
- Reduces production costs with easy, low-cost size adjustments.
- Minimizes maintenance time through simple, accessible machine controls.
- Protects operations with sensors and overload clutch, reducing material waste.
- Ensures operator safety with interlocked guards and compliance with CE standards.
- Applications
- Biscuits,Snacks,Chocolates,Confectionery,Sweets
- End products
- Promotional chocolate squares,Neapolitan chocolates,Foil-wrapped chocolates,Chocolate assortments,Corporate gift chocolates
- Steps before
- Chocolate Moulding,Pre-cut Label Preparation
- Steps after
- Packing,Distribution,Marketing Promotions
- Input ingredients
- small square chocolates,rectangular chocolates,pre-cut labels,aluminium foil,paper laminate,pre-printed labels
- Output ingredients
- wrapped small square chocolates,wrapped rectangular chocolates,band wrapped chocolates,full envelope wrapped chocolates
- Market info
- AMP Rose is renowned for manufacturing and supplying high-quality machinery for the confectionery, chocolate, and snack industries, offering innovative solutions and engineered-to-order equipment tailored to meet specific customer needs.
- Output Speed
- Up to 150 products per minute
- Size Range Length
- 20-55mm
- Size Range Width
- 20-40mm
- Size Range Thickness
- 4-8mm
- Wrapping Style
- Fold wrap style
- Wrapper Material
- Aluminium foil,paper laminate
- Reel Core Size
- 70mm
- Maximum Reel Diameter
- 300mm
- Maximum Reel Width
- 90mm
- Automation Features
- Photo-electric cell registration unit,automatic feeding system
- Modular Construction
- Yes,allows quick size changes
- Lubrication System
- Centralized
- Guard Safety
- Electrically interlocked guards
- Automation level
- Manual / PLC
- Batch vs. continuous operation
- Batch
- Changeover time
- Fast size-changes
- Cleaning method
- Manual
- Energy efficiency
- Low running costs
- Inner Wrapper Material
- Aluminium foil,with or without paper laminate
- Outer Wrapper Material
- Pre-cut paper labels
- Reel Core Size
- 70mm
- Maximum Reel Diameter
- 300mm
- Maximum Reel Width
- 90mm
- Outer wrapping material
- Pre-cut paper labels
- Inner wrapping material
- Aluminium foil,with or without paper laminate
- Product size compatibility
- Length
- Product types
- Square and rectangular chocolates
- Size Range - Length
- 20-55mm
- Size Range - Width
- 20-40mm
- Size Range - Thickness
- 4-8mm
- Machine Output Speed
- Up to 150 p/m
- Wrapping Style
- Fold wrap style,with or without band
- Outer Wrapper Supply
- Pre-cut paper labels stack
- Reel Core Size
- 70mm
- Maximum Reel Diameter
- 300mm
- Maximum Reel Width
- 90mm
- Modular Construction
- Yes
- Machine Operation Type
- Simple and accessible controls
- Guard Material
- Clear acrylic
- Optional Extras
- Photoelectric cell registration unit,Automatic paper reel splicing,etc.
- Size-change flexibility
- Quick and easy size-changes
- Control panel type
- HMI unit
- Outer wrapper type
- Pre-cut paper labels
- Wrapper configuration
- Single or double wrappers
- Integration capabilities
- Optional photoelectric cell registration unit
- Automation options
- Automatic feeding system
