Multipack wrapping system for snacks

Streamline your snack packaging process with a machine engineered for high-speed, efficient multipack wrapping, ensuring minimal waste and perfect collation every time.

Packs and Wraps Snack Multipacks Efficiently

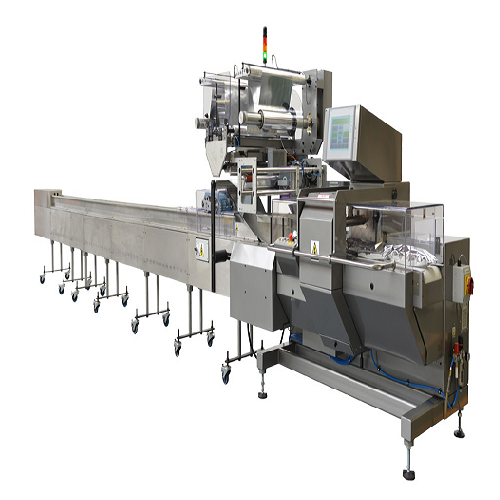

The Pakasnax Multipack Wrapping Machine by AMP-Rose is engineered to optimize the packaging process for snack manufacturers. As a horizontal form fill and seal machine, it addresses the complexities of multipack arrangement and minimizes wrapping waste. Designed for snacks such as potato chips, popcorn, and biscuits, this equipment ensures efficient product collation through its unique film folding box and precise heat sealing rollers. It operates at up to 100 packs per minute, with adjustable pack dimensions, providing versatility for various product sizes. Integrated features like a no-pack-no-paper sensor and optional automatic reel splicing enhance automation, reducing downtime and material costs. Additionally, options such as a pack-tamping unit and hole punch unit offer further customization, making it an ideal solution for high-speed, continuous snack packaging operations.

Benefits

  • Minimizes wrapping material costs through precise collation control and reduced waste.
  • Enhances production speed, achieving up to 100 packs per minute with continuous operation.
  • Ensures product integrity with a no-pack-no-paper sensor, preventing damage to primary packaging.
  • Offers customization with options like pack-tamping and hole punch units, adaptable for varied packaging needs.
  • Lowers operational downtime with optional automatic reel splicing, optimizing material changeovers.

General


Applications
Popcorn,Biscuits,Crisps,Snacks
End products
Cookies,Butter popcorn,Rice cakes,Tortilla chips,Potato chips,Crackers,Cheese puffs,Caramel popcorn,Pretzels
Steps before
Collation of products,Product infeed
Steps after
Sealing,End crimping,Check weighing,Packing,Case packing
Input ingredients
bags of crisps,popcorn,snacks
Output ingredients
multipack wrapped products,collated primary bags,sealed multipacks
Market info
AMP Rose is renowned for manufacturing and supplying high-quality machinery for the confectionery, chocolate, and snack industries, offering innovative solutions and engineered-to-order equipment tailored to meet specific customer needs.

Technical Specifications


Output
Up to 100 p/m
Pack Size Range
Length
Maximum Reel Width
800mm
Sealing Mechanism
Heated pairs of rollers
End Crimp Unit Shaft Diameter
60mm diameter shafts on 250mm centres
Film Holder Capacity
Reels up to 800mm width
Automation
Automatic reel splicing option,Robotic loading option
Radial Adjustments
First pair of film rollers
Optional Units
Pack-tamping unit,Hole punch unit

Operating Characteristics


Working mechanism
Horizontal form fill and seal
Automation level
PLC-controlled
Changeover time
Quick adjustments via touch screen
Batch vs. continuous operation
Continuous
Cleaning method
Manual
Film handling
Automatic reel splicing
Collation control
Film folding box
Energy efficiency
Minimal downtime reduces energy use
Error detection
No-pack-no-paper sensor
End crimp adjustment
Touch screen controlled
Pack rejection
Electronic sensor system

Physical Characteristics


Reel width
Up to 800mm
Pack size range
Length
Film folding box
Designed for product collation control
Rollers
First pair unheated,plus two further heated pairs
End crimp unit shaft diameter and centers
60mm diameter shafts on 250mm centers
Control panel type
Operator touch screen
End crimp movement adjustment
Via operator touch screen
Reel splicing option
Automatic
Pack-tamping unit
Optional extra
Hole punch unit
Optional extra,complete or partial hole
Feeding systems
Optional robotic loading

Custom Options


Film folding box design
Control collation during transfer
Sealing rollers
Efficient heat transfer without stretching
No-pack-no-paper sensor
Standard fitting
End crimp unit
60mm diameter shafts
Film holder capacity
Reels up to 800mm width
Operator touch screen
Adjustable settings
Automatic reel splicing
Optional
Pack-tamping unit
Optional extra
Hole punch unit
Optional
Robotic loading system
Optional for automatic feeding
