Mobile stainless steel tank for grape harvest transfer

Facilitate efficient grape harvest transfer with a motorized mobile tank designed to ensure complete emptying, enhancing productivity and maintaining product integrity during wine-making processes.

Facilitates Grape Transfer and Harvest Emptying

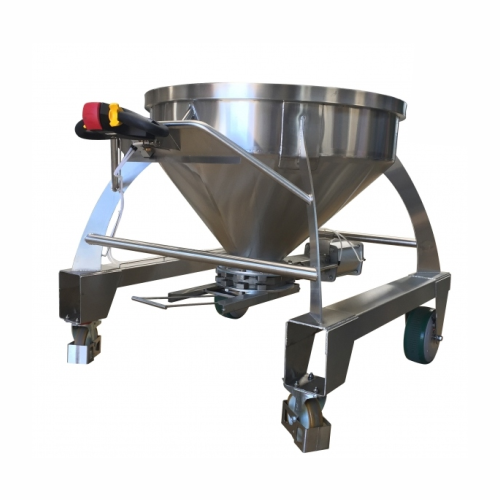

The Mobile Tank from SERAP Group is a motorized solution designed for efficient grape harvest transfer and wine-making processes. Using a tip-up mechanism powered by pneumatic cylinders, this tank enables complete and effortless emptying, alleviating manual handling difficulties. Suitable for producing various wines and grape byproducts, it integrates smoothly into any wine production line.

Constructed from AISI 304 stainless steel, the tank ensures excellent hygiene and durability, while its mobile design, featuring large diameter wheels and forklift compatibility, enhances transport flexibility within vineyard operations. It is particularly advantageous for wine producers targeting improved efficiency in processing capacities and throughput. Its manual and motorized operations allow for versatile application, handling both solid and slurry product types seamlessly.

Benefits

  • Enhances operational efficiency with motorized mobility and pneumatic tip-up mechanism.
  • Simplifies harvest handling and reduces labor effort with easy emptying design.
  • Maintains hygiene standards through bright annealed AISI 304 stainless steel construction.
  • Supports seamless integration into existing production lines with forklift and hoist compatibility.
  • Improves versatility by accommodating various wine-making and grape processing applications.

General


Applications
Winery equipment,Beverage processing,Grape harvest,Wine-making,Wine
End products
Rosé wine,Fortified wine,Pressed grape skins,Wine sediment,Red wine,Grape juice,Wine lees,Grape must,White wine,Sparkling wine
Steps before
Grape harvest,De-stemming
Steps after
Pressing,Fermentation,Storage,Aging
Input ingredients
grape harvest,de-stemmed grapes
Output ingredients
processed grapes,empty tank
Market info
Groupe Serap is renowned for specializing in the manufacturing of industrial cooling and thermal energy storage equipment, primarily serving the dairy and wine industries with advanced milk cooling tanks and wine fermentation storage solutions.

Technical Specifications


Capacity
3 or 5 HL
Material
AISI 304 Stainless steel
Mobility
Mobile on wide diameter wheels
Motorization
2 electrical motors,low voltage
Handling options
Forklift or monorail
Tip-up mechanism
Pneumatic cylinders
Emptying feature
Large tip-up angle with mechanical retaining deflector
Hopper design
Off-centre conical harvesting hopper
Valve type
Pneumatic knife gate valve

Operating Characteristics


Mobility
Mobile on wide diameter wheels,4 large diameter casters
Automation level
Assistance by 2 electrical motors low voltage
Handling method
Handling with forklift and monorail
Emptying mechanism
Tip-up by two pneumatic cylinders
Emptying assistance
Mechanical retaining deflector
Cleaning method
Pneumatic knife gate valve for total emptying

Material Compatibility


Corrosive resistance (e.g. acids)
High

Physical Characteristics


Material
Stainless steel 304,AISI 304L
Finishing
Bright annealed
Shape
Cylindrical
Tank type
Closed or open mobile tank
Capacity
3 or 5 HL
Mobility
Four large diameter wheels
Directional lock casters
Tilt mechanism
Tip-up by pneumatic cylinders
Lifting method
Forklift or hoist
Discharge method
Off-centre conical hopper,pneumatic knife gate valve

Custom Options


Tank capacity customization
3 Hectoliters / 5 Hectoliters
Material customization
Stainless steel 304
Movement assistance
2 electrical motors low voltage
Handling options
Forklift / Monorail
Additional lifting options
Hoist (optional)
Tank type
Closed / Open mobile tank
Tip-up mechanism
Pneumatic cylinders with secure maneuvering
Movement type
Directional lock casters
Harvesting hopper design
Off-centre conical with pneumatic knife gate valve
