Micro-dosing system for inhalation blisters
Streamline your inhalation product production with precision micro-dosing, forming, and sealing for high-quality dry powder inhaler blisters, ensuring consistent, reliable dosages for your pharmaceutical needs.
Forms, Fills, and Seals Micro-Dosed Blisters

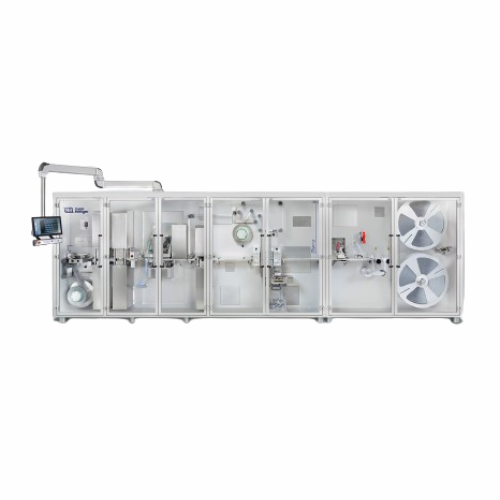

The SSP2 from Harro Höfliger is a compact micro-dosing blister packaging machine designed for precision filling in pharmaceutical and medical device production. It specializes in forming, filling, sealing, cutting, and winding small-batch dry powder inhalers and diagnostic reagent cartridges. The machine allows for flexible production with drum and membrane dosing options for partial or complete cavity fills. It can process 144 fills per minute using drum dosing and up to 900 with membrane dosing across a web width of 150 mm. The SSP2 seamlessly integrates with existing production lines, offering automation and ease of use, while ensuring operator safety with its containment features. Its compact design requires minimal set-up space and continuous inspection guarantees consistent product quality. Available in materials that comply with GMP standards, it also facilitates easy maintenance and cleaning with ergonomic accessibility.
Benefits
- Enhances production efficiency with fully automated blister forming, filling, and sealing.
- Ensures operator safety with integrable containment for processing highly-active and toxic powders.
- Minimizes footprint requirements with its compact, space-saving design.
- Guarantees consistent product quality with continuous inspection capabilities.
- Facilitates easy maintenance and reduced downtime with ergonomic design and accessibility.
- Applications
- Pharmaceutical powder,Inhalation products,Medical devices,Diagnostic products
- End products
- Diagnostic reagent cartridges,Dry powder inhaler blisters,Microdosed pharmaceutical powder blisters,Packaged medical inhaler dosages
- Steps before
- Purification,Drying,Grinding
- Steps after
- Sterilization,Packing,Final packaging
- Input ingredients
- active-ingredient powder,aluminum film,PE film
- Output ingredients
- aluminum blister strips,blister strips with 60 cups,wound double strips,sheared single strips
- Market info
- Harro Hoefliger is known for its expertise in manufacturing custom, engineered-to-order packaging and production equipment, particularly for the pharmaceutical, healthcare, consumer goods, and chemical industries, with a reputation for precision, innovation, and quality engineering solutions.
- Dosing type
- Drum / Membrane
- Fill volumes
- 144/min (Drum),900/min (Membrane)
- Web width
- 150 mm
- Output
- up to 11 strips/min
- Batch type
- Small batch
- Filling accuracy
- 100% with Membrane
- Material forming
- Thermal (PE film) / Cold (aluminum film)
- Sealing method
- Adjustable pressure,temperature,and time
- Working mechanism
- Intermittent filling
- Integrated steps
- Forming,filling,sealing
- Automation level
- Fully-automatic
- Batch vs. continuous operation
- Batch
- Cleaning method
- Easy maintenance
- Compact design
- Minimal set-up space
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Compact footprint
- Yes
- Control panel type
- Digital
- Discharge method
- Blister strips
- Machine footprint
- Compact
- Integration possibilities
- Mounting machine for inhalers,Final packaging machines
- Sealing tools configuration
- Adjustable pressure,temperature,and time
- Blister strip customization
- Wound double strips or sheared single strips
- Compact design
- Minimal set-up space
- Powder filling module type
- Drum filler or membrane filler
- Film forming options
- Thermal (PE film) or cold (aluminum film) forming
- Operator accessibility
- Integrable containment
