Metal detector and checkweigher for cosmetics production

Ensure seamless quality control by combining metal detection and precise weighing in one compact unit, perfect for handling large-format products in high-speed production lines.

Detects Metal and Weighs Large Format Products

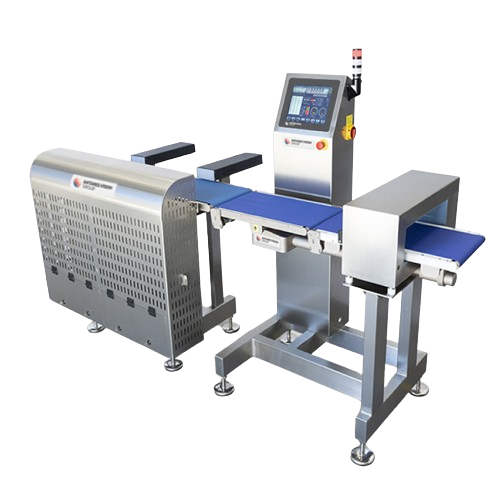

The MAXI Combi System by Antares Vision Group is an integrated metal detector and checkweigher solution tailored for large format production needs. This system combines robust metal detection with high-precision weighing, optimizing quality control in packaging lines. Designed to handle medium to large products, it features a 12” color touchscreen for seamless operation by a single interface. Its dual functionality operates in synchronism or independently, with customizable product recipes managing eject modules efficiently. The metal detector leverages Dedicated Frequencies and Multifrequency technology, ensuring high sensitivity and stability, even with light metallized wrappers. This makes it ideal for food and cosmetics packaging.

Optimized for continuous, automated operations, the system achieves linear speeds up to 60m/min and a maximum speed of 180 ppm, handling weights up to 12000 g. Constructed with stainless steel AISI 304, and corrosion-resistant treated aluminum, it’s engineered to endure harsh production environments. Certified for CE, MID, BRC, IFS, and HACCP standards, the system’s compliance ensures adherence to international quality regulations. The MAXI Combi integrates seamlessly into Industry 4.0 environments, offering data collection and remote assistance capabilities to enhance operational efficiency.

Benefits

  • Ensures product and consumer safety by detecting metal contaminants in packaging lines.
  • Enhances operational efficiency with synchronized dual systems and customizable product recipes.
  • Increases production flexibility with the ability to handle diverse product characteristics and packaging materials.
  • Meets stringent international quality standards, supporting compliance across multiple industries.
  • Facilitates Industry 4.0 integration with data communication and remote support, optimizing production management.

General


Applications
Food,Industrial products,Large format products,Cosmetics
End products
Industrial material packaging,Metal-capped bottles,Bulk food packages,Packaged snacks,Large cosmetic jars,Canned vegetables
Steps before
Mixing,Blending,Formulation,Size Reduction,Sieving
Steps after
Packaging,Labeling,Palletizing,Distribution,Quality Assurance
Input ingredients
metallised wrappers,products with uneven physical characteristics,large dimension products
Output ingredients
metal-free products,weighed products,quality-controlled products
Market info
Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.

Technical Specifications


Control Panel
Colour touchscreen 12”
Linear Speed
up to 60m/min
Maximum Speed
up to 180 ppm
Weight Range
up to 12000 g
Display Division
starting from 0.5 g
Protection Degree
IP65
Automation
Single operator interface
Compliance Industry 4.0
with Bidirectional Communicator
Data Collection Software
Included through Ethernet and USB
Kit for Remote Assistance
Included
Dedicated Frequencies
Multifrequency and Simultaneous Multifrequency

Operating Characteristics


Working Mechanism
Integrated Metal Detection and Checkweighing
Automation Level
Single Operator Interface with Touchscreen
Synchronous Operation
Dual System Synchronization with Product Recipes
Operational Flexibility
Disjoined Mode Capability
Frequency Modes
Dedicated,Multifrequency and Simultaneous Multifrequency
Remote Assistance
Remote Assistance Management Included
Industry 4.0 Compliance
Predisposed for Communication with External Systems
Product Handling
Robust Design for Medium/Big Formats
User Interface
12” Color Touchscreen Panel
Eject Module Management
Independent and Configurable
Sensitivity and Stability
High Sensitivity and Stable Performance

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Integrated monoblock design
Machine Dimensions
Varies based on chosen model
Control panel type
Colour touchscreen 12”
Material construction
Stainless steel AISI 304
Product handling components
Treated aluminate with hard nickel and anodized
Product size compatibility
Designed for medium/big formats
Conveyor belt width
140-350 mm depending on the model
Protection Degree
IP65
Display Division
Starting from 0.5 g

Custom Options


Control panel type
12” color touchscreen
