Medium-speed shrink-wrapping solution for various packaging types

Streamline your end-line packaging with a modular shrink-wrapping system, designed for adaptability and efficiency in medium-speed productions. Perfect for those tackling diverse packaging challenges, this equipment ensures seamless integration and operation without compromising on performance or safety.

Executes Medium-Speed Shrink-Wrapping and Packaging

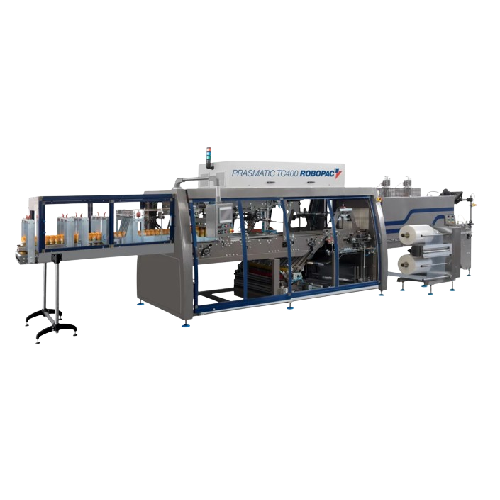

The Prasmatic TC 300/400 series by OCME are modular shrink-wrapping machines designed for medium-speed operations. These machines offer flexibility across multiple industries, including beverage and personal care, specializing in efficiently wrapping products such as bottled water, snack bars, and toilet paper rolls. Capable of handling up to 45 packages per minute, they utilize ergonomic design and brushless servomotor drives for enhanced safety and maintenance simplicity. Their modular frames allow for easy integration into existing production lines, offering continuous and adaptable format changes without halting operations. Available options include stainless steel construction for high-hygiene sectors and wash-down execution for easy cleaning and maintenance. The intuitive HMI and automatic film reel change further streamline operations, minimizing downtime and operator intervention.

Benefits

  • Increases operational efficiency with format changes made directly from the operator panel without halting production.
  • Enhances worker safety and machine lifespan through top-brand brushless servomotor drives.
  • Optimizes product versatility with customizable packaging options, from trays to shrink-wrap.
  • Minimizes maintenance time with ergonomic design and user-friendly interfaces.
  • Supports high-hygiene sectors with optional wash-down execution for easier cleaning.

General


Applications
Food,Personal care,Beverage,Tissue,Lubricants,Paper,Corrugated,Home
End products
Frozen meals,Toothpaste tubes,Cardboard boxes,Bottled water,Toilet paper rolls,Paper towels,Snack bars,Engine oils,Packaging cartons,Carbonated drinks,Liquid soap,Shampoo bottles,Fruit juices,Grease containers,Canned vegetables
Steps before
Product Sorting,Initial Packaging,Labeling
Steps after
Palletizing,Distribution,Warehousing
Input ingredients
film reels,blanks,products for packaging,trays,flat pads
Output ingredients
shrink-wrapped packages,packs with film only,packs with flat pad and film,packs with tray and film,medium-speed shrink-wrapped packages
Market info
OCME, part of Aetna Group Italy, is renowned for manufacturing innovative, high-quality packaging and material handling solutions, including filling, palletizing, and conveying systems, with a strong reputation for reliability and technological advancement in industrial sectors.

Technical Specifications


Output Capacity
Up to 45 PPM
Speed
35 to 45 packages/min
Pack/minute (TC 300)
Up to 35
Pack/minute (TC 400)
Up to 45
Automation
Brushless servomotor drives
Maintenance
Easy access with sliding doors
Film Reels
Various positioning solutions
Blank magazine capacity
400-1600
Max blank length
1250 mm
Max blank width
650 mm
Max reel diameter
500 mm
Max reel width
720 mm
Max reel weight
80 Kg
Changeover time
10 ÷ 12 min

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Inline Continuous
Changeover time
10 ÷ 12 min
CIP/SIP
Manual Cleaning
Cleaning method
Manual

Material Compatibility


Cleanability
Easy clean,CIP
Corrosive resistance (e.g. acids)
Partial or full stainless steel

Product type Characteristics


Film Type
Heat-shrink film
Packaging Type
Film only / Flat pad and film / Tray and film

Physical Characteristics


Machine footprint
Compact/Modular
Control panel type
User-friendly touchscreen
Frame Material
Partial or full stainless steel
Discharge method
Output 35 to 45 PPM
Accessibility
Sliding doors and LED lighting for maintenance
Reel diameter
Max 500 mm
Reel width
Max 720 mm

Custom Options


Control Panel Type
Wide touchscreen HMI
Modular Machine Frame
Multiple modular solutions
Machine Configuration
Tray and Film / Film Only
Material Construction
Partial or Full Stainless Steel
Film Reel Positioning
Various ergonomic solutions
Automatic Format Change
Brushless motor controlled
