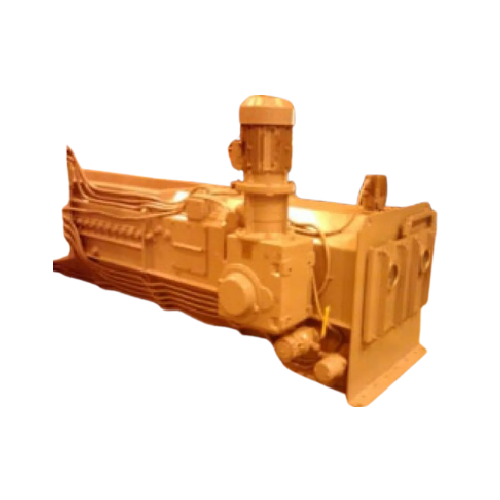

Medium pressure gravimetric feeder for pulverized coal boilers

Achieve precise combustion control and optimize fuel efficiency in your coal-fired power systems with this medium pressure gravimetric feeder, specifically engineered to handle explosive environments safely and efficiently manage your fuel flow.

Feeds Pulverized Coal for Consistent Combustion

The MULTIDOS MPG Medium Pressure Gravimetric Feeder from Schenck Process Europe GmbH is engineered to meet the rigorous demands of coal-fired power plants and other industrial applications. Designed for environments that require feeders to withstand explosion pressures up to 1 barg, it ensures safe and accurate coal feeding by maintaining flow accuracy within ± ½ of 1 percent. Ideal for use in pulverized coal and combustion control systems, it supports improved boiler efficiency and emission reductions by facilitating precise air/fuel ratio management.

With a standard conveying length of 2134mm and inlet sizes available in 610mm or 914mm, the feeder accommodates diverse feed rates up to 100 tons per hour. Automating continuous high-speed operations, it integrates seamlessly with existing control systems, enhancing operational efficiency. The MULTIDOS MPG’s robust build and adaptability make it essential for coal-fired and biomass-fired power plants, steelmaking, and cement industries aiming for optimized fuel use and emissions control.

Benefits

  • Enhances combustion efficiency, reducing NOx emissions and minimizing operational costs.
  • Maintains consistent fuel delivery, optimizing air/fuel ratios and improving pressure control.
  • Increases operational reliability and system stability in high-pressure environments.
  • Supports energy efficiency through precision in coal mass flow control.
  • Lowers maintenance costs via robust, durable design reducing slagging and fouling.

General


Applications
Combustion control systems,Pulverized coal,Coal-fired power plants,Power plant fuel systems,Industrial boilers
End products
Combusted coal,Steam,Flue gas,Hot gas,Electricity
Steps before
Pulverizing,Coal Preparation
Steps after
Combustion,Heat Control,Exhaust Gas Treatment
Input ingredients
pulverized coal
Output ingredients
coal flow,coal mass flow rate,excess air,burner distribution
Market info
Schenck Process is known for its expertise in material handling, weighing, feeding, and automation solutions. The company has a strong reputation for delivering high-quality engineered-to-order equipment for diverse industries, backed by innovative technology and customer-centric service.

Technical Specifications


Accuracy
± ½ of 1 percent
Conveying Length
2134mm (7’)
Inlet Width
24” (610mm) / 36” (914mm)
Inlet Shape
Round/Rectangular with L
Feed Rate
Up to 100 tons per hour
Explosion Pressure Resistance
1 barg (14.5 psig)
Compliance Standard
EN 12952-9

Operating Characteristics


Fuel savings
Improved boiler efficiency
Automation level
PLC-controlled
Pressure,Heat Control
Enhanced through equal delivery of coal
Combustion control stability,response
Improved
Nitrogen Oxide (NOx) Emissions
Minimized through better excess air control
Operation Mode
Continuous
Explosion Pressure Rating
Up to 1 barg (14.5 psig)
Flow Rate Accuracy
± 0.5% of total coal flow
Changeover time
Quick adjustment with standard inlet widths
Capacity
Up to 100 tons per hour
Load Adjustment
More accurate control of excess air
Air/Fuel Ratio Control
Optimum management when changing loads
Stratification
Reduced with equal coal delivery

Material Compatibility


Heat resistance
Suitable for high-pressure applications
Corrosive resistance
Designed to withstand explosion pressures
Density/particle size
Pulverized coal

Product type Characteristics


Material Type
Pulverized Coal

Physical Characteristics


Machine footprint
Standard conveying length of 2134 mm (7')
Inlet size and shape
610 mm (24") inlet,round or rectangular with length to width ratios up to 3
Inlet width
Standard inlet widths are 24” (610 mm) and 36” (914 mm)
Feed rate
Up to 100 tons per hour
Explosion pressure withstand capability
Up to 1 barg (14.5 psig)

Custom Options


Control system
Boiler control system integration
Inlet shapes
Round / Rectangular with length to width ratios up to 3
Inlet widths
24” (610mm) and 36” (914mm)
Feed rate capacity
Up to 100 tons per hour
