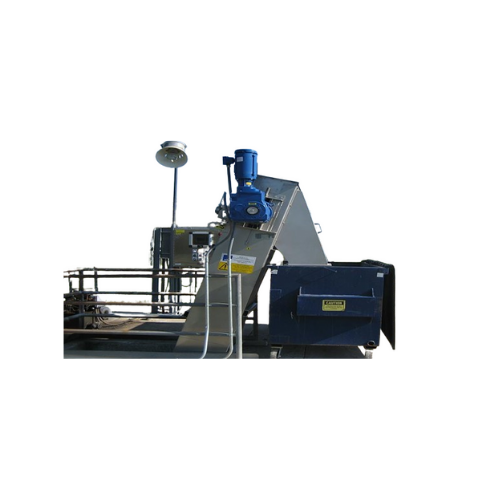

Mechanical fine bar screens for wastewater treatment

Efficiently capture and remove solids from wastewater streams with sub-vertical mechanical fine bar screens, ensuring cleaner effluent and reduced maintenance in your facility.

Screens and Removes Solids from Wastewater

The Sub-vertical Mechanical Fine Bar Screens GVF from WAMGROUP is designed for medium-fine screening in municipal and industrial wastewater treatment. Its robust construction features a steel frame and precision laser-cut stainless steel rake tines, ensuring effective solid removal and efficient processing. The equipment accommodates channel widths from 400 to 2,000 mm with a 75-degree incline, facilitating integration into various plant layouts without removing the screen from the channel for maintenance. Applications range from municipal sewage treatment to pulp and paper processing, handling solids and slurries to deliver treated wastewater and purified sludge. Automation is achieved through continuous operation with chain-driven rakes, reducing manual intervention and optimizing labor. Options include hot-dip galvanized, 304L, or 316L stainless steel materials to combat corrosive environments, with inclination adjustments and motor protection levels available. These screens offer reduced maintenance costs, supporting operational efficiency with enclosed, self-lubricating components and precise rake alignment, enhancing service life while minimizing environmental footprints.

Benefits

  • Enhances effluent quality by effectively removing solids, reducing downstream processing workload.
  • Decreases maintenance costs with self-lubricating components and low maintenance requirements.
  • Adapts to different environmental conditions with customizable materials that resist corrosion.
  • Integrates smoothly into various layouts with inclination options, optimizing space usage.
  • Continuously operates to minimize manual oversight, enhancing labor efficiency.

General


Applications
Animal by-products handling and processing,Manure treatment,Industrial waste water,Sludge treatment,Clean water treatment,Paper processing,Tanneries,Vegetable processing waste water,Industrial solid waste handling,Starch processing,Municipal waste water,Catering waste water,Beverage industry waste water,Incinerators,Pulp processing,Plastics recycling industry waste water,Abattoirs,Dyeing works,Food processing waste water,By-products processing,Livestock breeding,Environmental technology,Fruit processing waste water
End products
Recycled plastics effluent,Tannery wastewater,Potable water,Processed food residues,By-product extracts,Pulp effluent,Ash from incinerators,Treated manure,Soft drink processing effluent,Fruit pulp waste,Vegetable processing effluent,Catering waste effluent,Effluent water,Brewery waste,Distillery waste,Meat processing effluent,Recycled water from paper industry,Processed animal by-products,Treated wastewater,Purified sludge,Textile dye effluent,Starch-rich effluent
Steps before
Primary Wastewater Collection,Initial Sedimentation,Coarse Screening
Steps after
Sludge Treatment,Waste Disposal,Clarification,Filtration
Input ingredients
municipal waste water,industrial waste water,civil sewage,industrial sewage
Output ingredients
screened solids,cleaned waste water,discharged waste into dumpster,compactor output
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Screen spacing
6 ~ 10mm
Cleaning rakes
4 or more
Channel width
400 ~ 2,000 mm
Incline angle
75 degrees
Material
Hot dip galvanised steel,304 L / 316 L SS
Alternative incline angle
Up to 90 degrees with goose neck
Motor protection degree
Alternative degrees available

Operating Characteristics


Working mechanism
Sub-vertical mechanical
Screening type
Medium-fine screening
Automation level
Chain-driven rakes
Rake tines material
Stainless steel
Maintenance level
Low maintenance costs
Installation depth
Very deep channels
Incline angle
75-degree
Screens cleaning method
Rakes with wiper
Alternative options
Different screen types/sizes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
400 mm – 2,000 mm channel width
Incline angle
75-degree,up to 90 degrees with goose neck
Spacing between bars
6 ~ 10 mm
Material construction
Hot dip galvanised steel,304 L / 316 L SS
Installation depth
Very deep channels

Custom Options


Control panel type
Alternative voltage and frequency
Incline angle
75 degrees
Up to 90 degrees with goose neck
Material options
Hot dip galvanised steel,304 L / 316 L SS
Screen types and sizes
Alternative screen types and sizes
Motor protection
Alternative degree of motor protection
