Marine oil and water purification separators

Optimize your marine operations with high-efficiency separators designed to purify fuel, lube oil, and water on board, ensuring improved performance and reduced maintenance.

Purifies Marine Fuel and Treats Wastewater

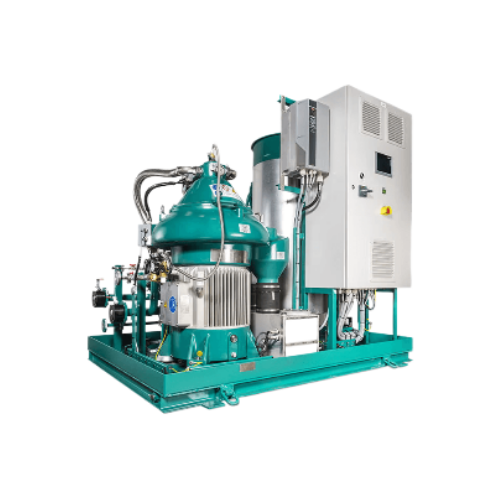

The GEA Marine Centrifugal Separator from GEA specializes in purifying marine fuel and optimizing wastewater management on vessels. Utilizing a direct drive mechanism, it reduces power consumption by 9% and extends service intervals to 16,000 hours. Ideal for applications in fuel oil and lube oil purification, bilge water treatment, and EGR wash water processing, it operates continuously and automatically at high speeds. With a capacity to handle diverse liquid waste streams, the separator integrates seamlessly into marine operations, aided by intelligent GEA IO control for one-touch operation. Its compact design allows efficient space usage, while its robust construction ensures high reliability under harsh marine conditions. The system is engineered for minimal maintenance, with a nearly oil-free discharge to prevent product loss and lower environmental impact. Available in corrosion-resistant materials, it supports various compliance standards, making it an efficient solution for marine vessel operators seeking effective purification.

Benefits

  • Enhances fuel purity and lube oil quality, boosting engine efficiency and lifespan.
  • Saves energy by 9% with an integrated direct drive, cutting operational costs.
  • Extends maintenance intervals to 16,000 hours, reducing downtime and service costs.
  • Guarantees minimal residual oil discharge, aiding environmental compliance.
  • Compact design optimizes space usage, accommodating confined marine settings.

General


Applications
Environmental,Marine,Bilge water,Egr wash water,Oil and gas,Lube oil,Fuel oil,Biofuel
End products
Treated bilge water,Low residual oil marine water,High-quality marine exhaust water,Purified biofuel,Clean egr wash water,Refined marine lube oil,Purified marine fuel oil
Steps before
Fuel Oil Filtration,Lube Oil Filtration,Water Collection
Steps after
Residual Oil Discharge,Engine Integration,Water Discharge
Input ingredients
fuel oil,lube oil,bilge water,EGR wash water,oily water
Output ingredients
purified fuel oil,purified lube oil,water with less than 15 ppm oil,water with less than 5 ppm oil,discharge-ready EGR bleed-off water
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Energy savings
Up to 30,000 kWh per year per vessel
Service interval
16,000 hours
Residual oil content
Less than 15 ppm (even less than 5 ppm for more demanding requirements)
Automation
Integrated direct drive
Energy consumption reduction
9% compared to predecessor model
Separator efficiency
High g-force
Size/space utilization
More performance per square meter
Cleaning workload reduction
95 percent
Operation
Continuous unmanned operation
Footprint
Compact design
Discharge type
Nearly oil-free discharge (GEA hydrostop)
Control system
Intelligent GEA IO control unit with one-touch operation
Performance classes
All performance classes
Reliability
Maximum reliability
Energy transfer method
High-efficiency motor with direct energy transfer to the bowl
Resource efficiency
High

Operating Characteristics


Automation level
Manual / PLC / SCADA
CIP/SIP
Integrated direct drive reduces maintenance
Batch vs. continuous operation
Continuous
Energy efficiency
Reduced energy consumption by up to 30,000 kWh/year
Cleaning method
Automatic with reduced workload for cleaning
Service Interval
Extended to 16,000 hours
Residual oil content
Less than 15 ppm,option for < 5 ppm
G-force operation
High g-force for efficient separation
Intelligent control system
GEA IO control unit with one-touch operation
Flexibility
GEA unitrolplus for adjusting feed conditions

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Compact
Drive Type
Integrated direct drive
Design
Revolutionary / Compact
Structure
High-efficiency motor integration
Control System
Intelligent GEA IO control unit

Custom Options


Control panel type
Intelligent GEA IO control unit
Drive type
High-efficiency integrated direct drive
Space efficiency
Compact design with a small footprint
Installation flexibility
GEA marine Upgrade Kit for separators
Automation level
Flexible adjustment with GEA unitrolplus
