Manual hot cell for r&d in radiopharmaceuticals

Ensure precise dose dispensing and safe handling of radioisotopes with this manual hot cell, designed for research and development settings requiring tight containment and robust shielding.

Dispenses and Calibrates Radiopharmaceutical Doses Safely

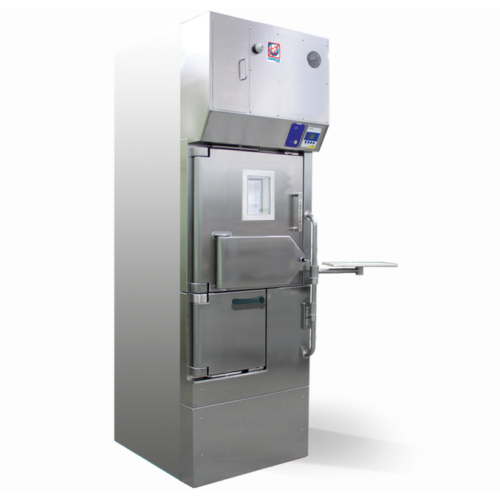

The MiniMa from Comecer is a manual R&D hot cell designed to dispense and calibrate radiopharmaceutical doses with precision and safety. This airtight and shielded unit is essential for handling hazardous isotopes within nuclear medicine and research environments. It features a static gasket system ensuring chamber tightness, and a lead glass viewing window with shielded arm openings for secure operation. Integrated ionization chambers and waste management systems offer a streamlined process for dose calibration and waste removal. The construction is robust, utilizing AISI304 stainless steel for corrosion resistance. Equipped with HEPA and charcoal filters, it maintains contaminant-free air quality, boasting compliance with safety and operational standards. The unit integrates seamlessly into existing laboratory setups, with the option for a fan-less mini PC for enhanced process control and monitoring. Custom configurations, including additional shielding and automation, can be tailored to specific operational needs.

Benefits

  • Enhances operational safety with comprehensive lead shielding.
  • Reduces contamination risk with integrated HEPA and charcoal filtration.
  • Supports precise radiopharmaceutical dosing and calibration.
  • Facilitates efficient waste removal with lockable shielded waste compartment.
  • Customizable features for tailored integration into existing lab workflows.

General


Applications
Radiation therapy equipment,Radiochemistry,Research,Radiopharmaceuticals,Development,Nuclear medicine,Radioisotope dispensing
End products
Fludeoxyglucose (18f-fdg),Iodine-123 capsules,Carbon-11 tracers,Fluorine-18 labeled compounds,Yttrium-90 microspheres,Molybdenum-99/technetium-99m generators,Technetium-99m radiopharmaceuticals,Radioactive isotopes kits,Lutetium-177 therapy doses,Gallium-68
Steps before
Calibration,Decontamination,Quality Control
Steps after
Waste Removal,Data Analysis,Storage
Input ingredients
radiopharmaceuticals,manual syringe,semi-automatic dispensing systems,ionization chamber materials
Output ingredients
dispensed radiopharmaceuticals,waste materials
Market info
Comecer is known for manufacturing advanced containment and isolation systems, particularly in the pharmaceutical and nuclear medicine sectors, with expertise in custom-engineered equipment, ensuring high safety and compliance standards.

Technical Specifications


Chamber tightness
Static gasket system
Window type
Frontal large lead glass
Waste compartment
Shielded with 30 mm lead
Ionization chamber shielding
50 mm lead
Material
Stainless steel AISI304
Air filtration
Hepa filter on inlet,Charcoal filter on outlet
Arm openings
Shielded,closed position
Inner lighting
Integrated
Power socket
One integrated
External door shielding
30 mm lead
Capacity for dose calibrator
Included as separate item

Operating Characteristics


Chamber tightness
Static gasket system
Shielding material
Lead glass / 30 mm lead for walls
Integrated viewing window
Lead glass
Waste management
Shielded waste compartment
Automation level
Manual / Semi-automatic dispensing
Ionization chamber accommodation
50 mm lead shielding
Ventilation system
Hepa filter / Charcoal filter
Lighting
Integrated inner light
Power supply
Integrated power socket
Access doors
Large shielded doors
Arm openings
Shielded in closed position

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Airtight and shielded dispensing box
Window type
Integrated lead glass viewing window
Arm openings
Two shielded arm openings
Material
Stainless steel (AISI304)
Chamber shielding type
50 mm lead
Lead glass window thickness
30 mm lead
Waste compartment door
Lockable,shielded door
Air filtration
Hepa filter on air inlet,charcoal filter on air-outlet
Internal workspace
Complete stainless steel,includes inner light and power socket
Loading door
Large shielded door on the front side

Custom Options


Control panel type
Manual / Semi-Automatic
Integration Possibility
(Semi-) Automatic Dispensing Systems
