Magnetic onion peeler for high-yield production

Achieve high yields and superior hygiene in onion processing while seamlessly integrating into your existing production line with advanced magnetic peeling technology designed to optimize cleanliness and reduce maintenance.

Peels and Prepares Onions Efficiently

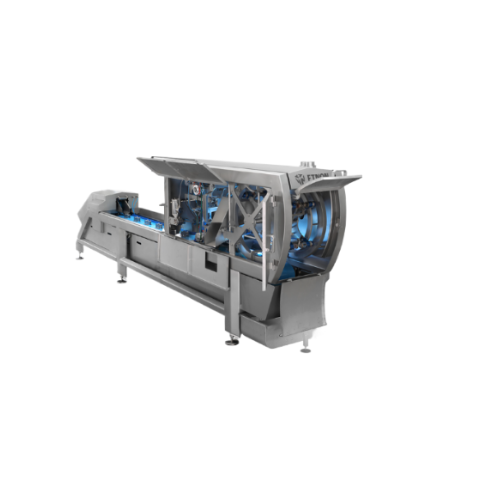

The FTNON MOP-200 Magnetic Onion Peeler, developed in collaboration with Gillis Onions and the USDA, revolutionizes onion processing with its unique magnetic-driven peeling system. This machine operates by feeding onions through a series of precise, automated operations including peeling, rotating, and air blowing, designed for high-speed, continuous use in food processing environments. Capable of handling up to 120 onions per minute, the MOP-200 yields superior quality onion products such as purees, fresh rings, and pre-packaged salads, making it ideal for food processing companies and ready meal manufacturers. Its streamlined design features super-magnetic technology eliminating traditional components like wires and belts, which reduces maintenance and enhances hygiene. The machine’s flexibility is demonstrated by its customizable configurations to fit various operational needs. Designed for seamless integration into existing production lines, the MOP-200 includes a stainless-steel control panel for ease of use, ensuring that even novice operators can achieve optimal results with minimal training.

Benefits

  • Maximizes yield with a processing capacity of up to 120 onions per minute.
  • Reduces maintenance costs and downtime with a frictionless, component-free design.
  • Enhances hygiene efficiency through an easy-to-disassemble setup.
  • Increases operational flexibility with customizable features and configurations.
  • Minimizes risk of contamination and product loss with precise, automated peeling operations.

General


Applications
Soups,Ready meals,Sauces,Potatoes,Fresh produce,Oils,Dressings,Vegetables,Seasonings,Baby food
End products
Pre-cut onion mixes for vegetables,Onion sauce bases,Onion spice mixes,Creamy onion soup,Onion dressing,Pre-packaged onion salads,Frozen onion tater tots,Onion oil,Pureed baby onions,Fresh onion rings
Steps before
Sorting,Sizing,Quality Inspection
Steps after
Packing,Freezing,Chilling,Sterilization
Input ingredients
onions
Output ingredients
peeled onions,onion skins
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Capacity
Up to 120 onions per minute
Automation
Semi-automatic
Control system
Stainless-steel control panel
Incision depth settings
Adjustable to one or more layers
Customization options
Left or right outfeed,real-time support
Product size compatibility
60mm to 140mm diameter
Material Handling
Magnetic-driven peeling wheel
Cleaning method
Easy disassembly for sanitation
Peeler type
Magnetic operation

Operating Characteristics


Working Mechanism
Permanent super-magnetism
Automation Level
Automated with integrated controls
Batch vs. Continuous Operation
Continuous
Cleaning Method
Easy disassembly for manual cleaning
Changeover Time
Quick and easy with minimal adjustments

Physical Characteristics


Machine footprint
Compact,designed for ease of integration
Control panel type
Stainless-steel,standalone
Discharge method
Left or right side outfeed options
Feed method
Hopper and adjustable fingers
Peeling mechanism
Magnetic-driven peeling wheel
Shape and size compatibility
60mm to 140mm diameter onions

Custom Options


Outfeed placement
Left / Right side
Internet connectivity
Real-time JBT technical support
Spare-parts kit
Convenient maintenance
Incision depth
Single or multiple layers
Pressure system
Adjustable
