Leakproof flow pack wrapper for meat and poultry

Ensure your meat and poultry products remain fresh and visually appealing with a robust wrapping solution that delivers customizable, hermetically-sealed packaging for optimal product presentation and extended shelf life.

Seals and Shrinks Leak-Proof Meat and Poultry Packs

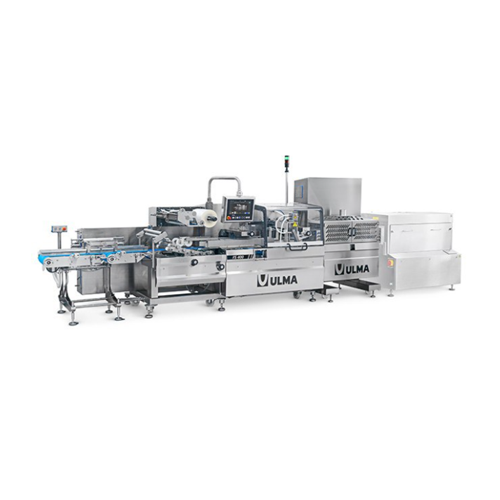

The FS 400 from ULMA Packaging is a versatile stretch shrink flow wrapper designed specifically for meat and poultry applications. Utilizing an advanced stretch shrink film system, it creates hermetically sealed packs that ensure leak-proof packaging with an attractive presentation. Ideal for products like sliced beef, whole chicken, and tray-packed turkey breasts, the FS 400 efficiently wraps, seals, and shrinks, integrating seamlessly into high-speed, continuous packaging lines. Featuring electronic control of each motor and an automatic feeding system, the machine offers user-friendly operation with straightforward product changeovers. Constructed from stainless steel with an IP65-rated design, it guarantees superior sanitation and easy cleaning while minimizing operational downtime. The FS 400 is engineered to reduce air evacuation without perforations, enhancing shelf life and package integrity for fresh food products.

Benefits

  • Ensures product integrity with leak-proof, tightly sealed packages.
  • Enhances shelf appeal with superior film aesthetics and minimal air evacuation.
  • Minimizes labor with simplified automatic product feeding and changeover.
  • Lowers maintenance costs through durable stainless steel construction and easy cleaning design.
  • Optimizes operations with reliable, continuous high-speed performance.

General


Applications
Fresh food,Meat,Poultry
End products
Vacuum-sealed pork chops,Sliced beef packaging,Whole chicken packing,Marinated chicken wings,Tray-packed turkey breasts,Hermetically-sealed sausage trays
Steps before
Product Preparation,Tray Loading
Steps after
Sealing,Shrinking,Cooling,Labeling,Palletizing
Input ingredients
meat products,poultry products,trays,stretch films,shrink films
Output ingredients
hermetic pillow packs,leakproof packs,case-ready packs,aesthetically appealing packages,printed and non-printed film packages
Market info
ULMA Packaging Spain is renowned for designing and manufacturing innovative, customized packaging solutions for the food, pharmaceutical, and non-food industries, emphasizing advanced automation technology, sustainability, and high-quality service.

Technical Specifications


Product Width Capacity
Up to 280 mm (11")
Product Height Capacity
Up to 180 mm (7")
Film Usage
Printed and non-printed films
Automatic Indexer
Available
Motor Control
Electronic control of each motor
Control Panel
15" Touch Screen
Product Changeover Time
Minimum
Data Sharing
Network compatible
Material
Stainless Steel
Protection Degree
IP65 or higher
Frame Type
Cantilever format
Shrink Tunnels
Hot Air and Hot Water

Operating Characteristics


Working mechanism
Horizontal Flow Wrapper (HFFS)
Integrated steps
Film stretching and aspiration system
Automation level
Automatic with electronic control
Changeover time
Minimum product changeover time
Cleaning method
Fresh food oriented design for easy cleaning
CIP/SIP
Wash down construction

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Film type
Stretch shrink films

Physical Characteristics


Machine width capacity
280 mm (11")
Machine height capacity
180 mm (7")
Material
Stainless steel
Footprint design
Compact
Ingress Protection Rating
IP65 or higher
Frame format
Cantilever

Custom Options


Control panel type
15" touch screen panel
