Lasagne cutter for flat pasta and cannelloni

Optimize your pasta production line with a high-frequency cutter designed for precision slicing of lasagne sheets and cannelloni, ensuring consistent quality and minimizing product damage.

Cuts and Processes Fresh and Cooked Lasagne Sheets

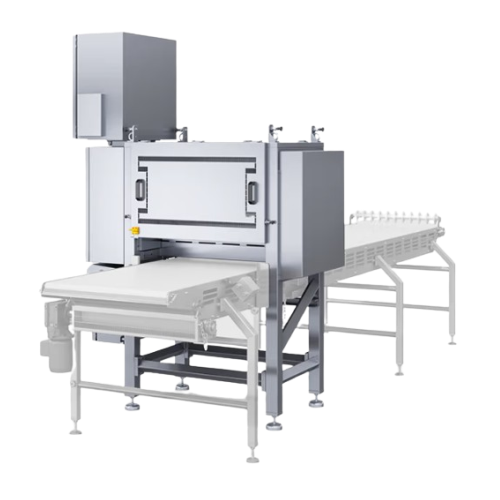

The TL – Lasagne Cutter is a precision-engineered solution from GEA designed for high-speed processing of fresh and cooked pasta. It employs a chasing blade with brushless motor control, synchronized through a PLC, ensuring accurate cuts without product damage, especially crucial for delicate cannelloni. This high-frequency cutting system excels in versatility, handling various pasta types such as lasagne sheets and pre-cooked cannelloni shells. The equipment’s blade, available in various widths from 600 to 1200 mm, can achieve cutting speeds of up to 120 cuts per minute. Built with stainless steel, the cutter is resilient and easy to clean, facilitating seamless integration into any food processing line while ensuring hygiene standards are upheld. Designed for continuous operation, the TL – Lasagne Cutter supports efficient pasta production with minimal downtime, appealing to industrial food processors aiming for consistent quality and productivity.

Benefits

  • Increases production efficiency with high-speed cutting at 120 cuts per minute.
  • Maintains product integrity, preventing damage to delicate pasta forms like cannelloni.
  • Minimizes cleaning time and ensures hygiene with easy-to-clean stainless steel construction.
  • Ensures precise cutting operations with synchronized PLC and brushless motor control.
  • Integrates seamlessly into existing production lines, supporting continuous operations.

General


Applications
Pasta processing,Cooked pasta,Cannelloni,Lasagne sheets,Fresh pasta
End products
Lasagne noodles,Cooked pasta sheets,Fresh lasagne layers,Pre-cooked cannelloni shells,Cannelloni tubes
Steps before
Cooking,Flattening
Steps after
Packing,Sealing
Input ingredients
cooked flat pasta,cannelloni
Output ingredients
cut pasta,cut cannelloni
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Blade usable width
600-1200 mm
Cutting performance
120 cuts/min
Automation
PLC-controlled
Material
Stainless steel
Cutting pressure regulation
Spring-based
Cutting type
High-frequency chasing blade

Operating Characteristics


Working mechanism
Chasing blade with brushless control
Automation level
PLC synchronized
Material used
Stainless steel structure,plastic blade
Adjustable cutting pressure
Regulated by springs
Cutting performance
120 cuts/min
Blade usable width
600-1200 mm
Cleaning method
Easily washable

Material Compatibility


Cleanability
High
Stainless steel structure easily washable
Corrosive resistance (e.g. acids)
Stainless steel for machine
Good resistance

Physical Characteristics


Machine material
Stainless steel
Blade material
Plastic
Blade usable width
600-1200 mm
Cutting pressure regulation
Spring
Discharge method
NA

Custom Options


Control panel type
PLC-controlled
Blade Material
Plastic with springs for pressure adjustment
Blade Usable Width
600-1200 mm
