Large bottle blow/fill/seal packaging system

Achieve precise liquid filling and sealing for large-scale production with high-speed efficiency, ensuring optimal packaging integrity for sensitive solutions.

Fills and Seals Liquid Containers Efficiently

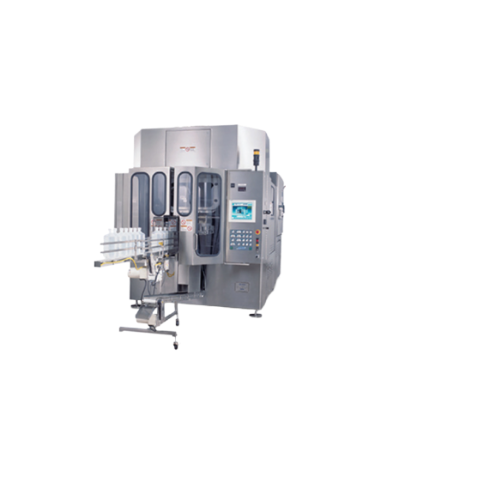

The ASEP-TECH® Model 603 from Weiler Engineering, Inc. is a blow/fill/seal packaging machine designed for high-precision liquid filling applications in the pharmaceutical and nutraceutical sectors. This equipment stands out with its all-electric servo motion configuration, optimizing energy use while delivering consistent, high-speed packaging of injectable solutions, ophthalmics, and nutraceutical liquids. The Model 603 is adept at filling container sizes ranging from 100 mL to 2,000 mL, with a throughput capacity that reaches up to 2,400 containers per hour, depending on design and product characteristics. Ideal for environments that demand sterility and precision, it complies with GMP standards, ensuring product quality and safety. Its stepped-base design facilitates easy maintenance and quick changeover, enhancing production efficiency. The machine is fully customizable based on user requirement specifications (URS), offering tailor-made solutions for unique production needs. Additionally, the integration with existing production lines is seamless, making it a versatile addition to any packaging department.

Benefits

  • Enhances production efficiency with high-speed, automated filling and sealing.
  • Lowers energy consumption through all-electric servo motion technology.
  • Ensures product safety and compliance with GMP standards.
  • Minimizes maintenance time with easy-to-change stepped-base design.
  • Customizable configurations support diverse product specifications and production needs.

General


Applications
Ophthalmics,Nutraceuticals,Respiratory therapy,Svps,Lvps,Injectables,Eye care
End products
Omega-3 soft gels,Multivitamin iv bags,Injectable saline solutions,Vitamin d liquid supplements,Eye drops,Contact lens solutions,Albumin injection vials,Asthma inhalation solutions
Steps before
Container Preparation,Material Blending,Solution Formulation
Steps after
Cooling,Quality Inspection,Labeling,Packaging
Input ingredients
LDPE resin,aqueous solutions
Output ingredients
large bottles,containers,injectables,SVPs,LVPs,eye care products,ophthalmics,respiratory therapy products,nutraceuticals
Market info
Weiler Engineering is known for designing and manufacturing advanced aseptic processing technologies, particularly its innovative Blow/Fill/Seal (BFS) systems, which provide efficient and sterile liquid packaging solutions for the pharmaceutical and healthcare industries.

Technical Specifications


Number of Cavities
7,8,8,10,10
Container Size
1000,500,250,250/500,180 mL
Containers/Hour
1350,1600,1750,2200,2400
Automation
All electric servo motion
Changeover
Stepped-base design for easy maintenance and changeover
Customization
Available based on customer supplied URS

Operating Characteristics


Automation level
Electrically controlled servo motion
Batch vs. continuous operation
Continuous
Changeover time
Stepped-base design for easy changeover
CIP/SIP
Not specified on webpage
Integrated steps
Blow/Fill/Seal operation
Working mechanism
Blow/Fill/Seal technology
Cleaning method
Not specified on webpage

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Suitable for injectables
Cleanability
Conforms to sanitary standards
Corrosive resistance (e.g. acids)
LDPE Resin

Physical Characteristics


Machine footprint
120 inches
Discharge method
Blow/Fill/Seal
Container size
1000,500,250,250/500,180 mL
Number of cavities
7,8,8,10,10
Stepped-base design
For easy maintenance and changeover

Custom Options


Control panel type
All electric servo motion configuration
Customization based on URS
Available
Maintenance design
Stepped-base design for easy maintenance and changeover
