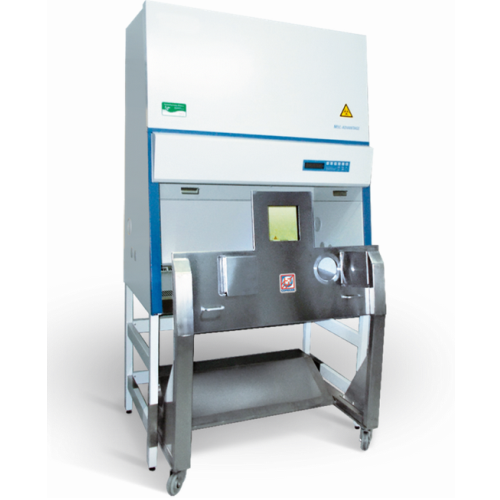

Laminar flow hood with lead glass for laboratory use

Ensure sterility and precision in high-stakes environments with advanced containment and filtration, perfect for safeguarding delicate processes like gene therapy and radiopharmaceuticals.

Ensures Sterile Conditions and Effective Containment

The FHB-10 Laminar Flow Hood with Lead Glass from Comecer is engineered to meet the stringent demands of sterile environments in industries like pharmaceuticals, biotechnology, and nuclear medicine. This laminar flow hood features a HEPA filtration system and meticulously regulated air flow to maintain a contaminant-free workspace, essential for processes such as CAR T-cell therapy production and chemotherapy compounding. Designed for both manual and continuous operations, it efficiently handles both liquid and gas applications, ensuring reliable containment. Its robust construction includes an epoxy-coated steel structure and removable AISI 304 stainless steel worktops, offering excellent corrosion resistance. Coupled with shielded lead glass, it provides additional protection while maintaining visibility. The FHB-10 is compliant with EN 12469 safety standards, ensuring it meets industry requirements. Additionally, its design allows for easy cleaning and maintenance, essential for ensuring operational efficiency and product safety. Customization options are available to cater to unique production needs, supported by Comecer’s engineering expertise.

Benefits

  • Maintains sterile conditions to ensure product purity and compliance.
  • Enhances safety with lead glass shielding in radiopharmaceutical applications.
  • Minimizes contamination risk with effective air flow and HEPA filtration.
  • Reduces maintenance time with easy-to-clean components.
  • Customizable configurations for diverse application requirements.

General


Applications
Pharmaceutical formulations,Radiopharmaceuticals,Biopharmaceuticals,Chemotherapy compounding,Gene therapy,Laboratory biotechnology,Nuclear medicine,Cell therapies
End products
Chemotherapy iv bags,Tablet coatings,Monoclonal antibodies,Iodine-131 radiopharmaceuticals,Plasmid dna,Car t-cell therapies,Technetium-99m generators,Gene editing vectors
Steps before
Preparation,Calibration,Decontamination
Steps after
Sterilization,Cleaning,Maintenance,Validation
Input ingredients
air,laboratory samples,nitrogen
Output ingredients
filtered air,protected laboratory samples
Market info
Comecer is known for manufacturing advanced containment and isolation systems, particularly in the pharmaceutical and nuclear medicine sectors, with expertise in custom-engineered equipment, ensuring high safety and compliance standards.

Technical Specifications


Air flow velocity
0.45 m/sec
Filtration system
HEPA filter
Filter efficiency
99.999% on 0.3 µm
Construction material
AISI 304 stainless steel
Air-tightness
Perfect air-tightness
Fan type
Centrifugal motorised fan

Operating Characteristics


Working mechanism
Laminar flow with balanced perforation
Automation level
Manual / PLC
Airflow control
0.45 m/sec
Energy efficiency
60% less energy consumption and heat output
CIP/SIP
SIP 135°C

Material Compatibility


Biological compatibility
Yes
Cleanability
Easy to clean surfaces
Corrosive resistance (e.g. acids)
Resistant to various laboratory chemicals
Density/particle size
Compatible with standard laboratory conditions

Physical Characteristics


Material
Steel structure,AISI 304 stainless steel
Window Type
Shielded glass window
Air-tightness
Perfect air-tightness
Worktop Design
Removable,glazed and perforated stainless steel
Liquid Collecting Bin
Watertight,made in stainless steel
Hands Ports
Yes
Glass Type
Safety tempered crystal

Custom Options


Control panel type
External and individual control for power sockets
Filtration system
HEPA filter
Shielding
Lead glass and shielded glass window
Material
AISI 304 stainless steel
