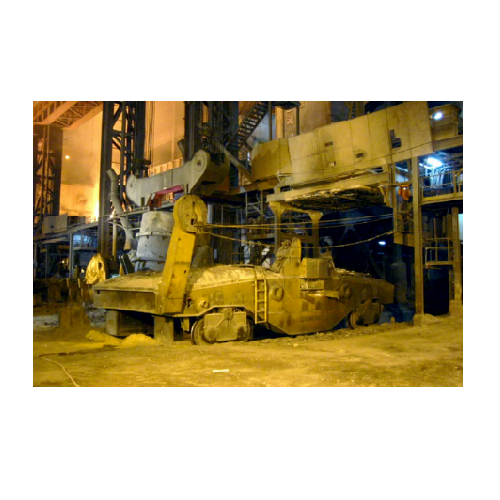

Ladle ferry weighing system for pig iron production

Ensure precise transport and weighing of liquid pig iron and steel billets under extreme conditions with this robust solution, enhancing operational reliability and efficiency in your production line.

Transports and Weighs Molten Metals Efficiently

The Ladle Ferry Weighing System from Schenck Process is engineered to meet the rigorous demands of steelmaking and pig iron production. It ensures accurate weighing and seamless transportation of molten metals between production stages. Designed with rugged components, it withstands the extreme mechanical impacts and thermal conditions encountered during loading and transit. This system supports applications in producing steel billets, pig iron blocks, and Portland cement. Its load cells and weighbeams provide precise measurements, crucial for maintaining quality control.

Integration with PLC systems allows for automated operations and real-time monitoring, enhancing process efficiency. The system handles continuous, high-speed operations, offering robustness in instances where manual interventions are required. With options for different load cell materials and configurations, it caters to various operational environments. Maintenance is streamlined through quick-change components, and the system is supported by Schenck’s global network for engineering and customization assistance.

Benefits

  • Increases operational reliability through integrated temperature sensors and secure mounting options.
  • Enhances production efficiency with fast changeover and quick start-up times.
  • Supports continuous and high-speed operations for improved throughput.
  • Offers robust performance in extreme temperatures and mechanical stress, ensuring safety and accuracy.
  • Minimizes maintenance downtime with easily replaceable components and configurable system options.

General


Applications
Transport,Performance materials,Weighing components,Yard logistics,Pig iron production,Steelmaking,Bulk material handling,Cement
End products
Steel billets,Load cell components,Pig iron blocks,Polypropylene compounds,Conveyor belts,Portland cement,Steel ladles,Yard management systems
Steps before
Pig iron production,Casting ladle preparation,Steel melting,Furnace operations
Steps after
Secondary metallurgy,Crane transport,Steel refining,Cooling,Material handling
Input ingredients
pig iron,steel,casting ladle
Output ingredients
transported pig iron,transported steel
Market info
Schenck Process is known for its expertise in material handling, weighing, feeding, and automation solutions. The company has a strong reputation for delivering high-quality engineered-to-order equipment for diverse industries, backed by innovative technology and customer-centric service.

Technical Specifications


Operational Reliability
High
Changeover Time
Short
Temperature Resistance
Extreme
Impact Resistance
High
Load Cell Capacity
11.5t - 25t
Weighbeam Capacity
11.5 - 600 t

Operating Characteristics


Operational reliability
Adaptable,robust,reliable
Impact resistance
High mechanical impact
Changeover time
Short
Startup time
Quick production start-up after installation
Automation level
Integrated temperature sensor
Data transfer method
Infrared or radio data transfer

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Application Environment
Steelmaking,Ladle,and Pig Iron Production

Physical Characteristics


Machine Footprint
Varies depending on ferry design
Ladle Capacity
Depending on the specific ladle ferry
Mount Type
SensiQ Secure Mount SSM,Elastomere mounts
Discharge Method
Via downstream crane or secondary metallurgy
Temperature Management
Handled by integrated temperature sensors

Custom Options


Control panel type
Integrated with temperature sensor display
Integration possibilities
Infrared or radio data transfer
Mount options
Fixed or loose bearings with double-frame setup
Mount options
Elastomere mounts
Sensing options
Integrated temperature sensor
Transmission options
Infrared or radio data transfer
Ladle support configuration
Double-frame or centred ladle supports
