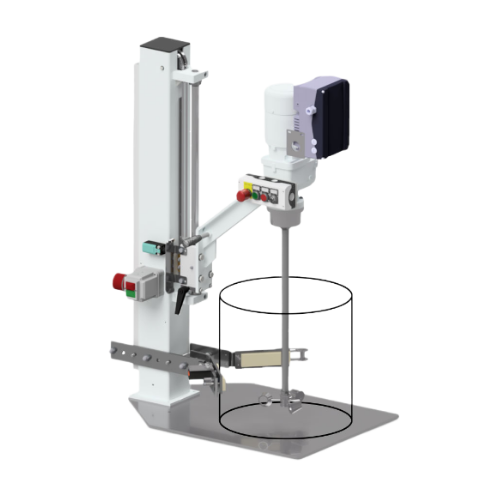

Laboratory stirrer for research and small-scale production

Optimize your research and scale up your production with a versatile stirrer designed for precise mixing and blending processes, suitable for varying viscosities and adaptable to different container sizes.

Mixes, Stirs, and Blends Liquids and Slurries

The VISCO JET VJ200 is designed by VISCO JET® for precise laboratory and pilot plant applications. Featuring a compact design, it offers smooth and efficient mixing, stirring, and blending of liquids and slurries across various industries such as cosmetics, pharmaceuticals, and food and beverage. It operates with a motor power of 0.37 to 0.55 kW, allowing it to handle containers with up to 500 mm height and 400 mm diameter. The VJ200 is equipped with a manual, stepless height adjustment mechanism, ensuring flexibility and ease of use. Its ATEX-rated version is suitable for explosive environments, ensuring safety in chemical and petrochemical processes. Constructed from stainless steel, it provides excellent corrosion resistance. The integrated safety features, such as an operational position switch and container clamping with a safety mechanism, enhance operational security and downtime reduction. With optional PLC-ready frequency inverters and switchgear for speed adjustments, it can be customized to meet specific customer requirements, enhancing process efficiency and precision.

Benefits

  • Enhances process flexibility with adjustable height and quick container changes.
  • Improves safety with integrated safety switches and ATEX compliance.
  • Allows precise control over stirring parameters, optimizing product quality.
  • Minimizes contamination risks with easy-to-clean stainless steel construction.
  • Reduces energy consumption with efficient motor options.

General


Applications
Süßigkeiten,Bergbau,Keramik,Petrochemie,Lebensmittel und getränke,Papierherstellung,Farben und lacke,Pharma,Kosmetik und seifen,Chemie,Milchprodukte
End products
Liquid fertilizers,Porcelain dinnerware,Mineral slurries,Face creams,Pharmaceutical syrups,Emulsion paints,Ceramic tiles,Cheese,Cardboard,Yogurt,Chocolate bars,Lubricants,Varnishes,Coated paper,Soft drinks,Drilling fluids,Fruit juices,Liquid soaps
Steps before
Ingredient Preparation,Mixing,Formulation Adjustment,Solution Preparation
Steps after
Scaling Up,Quality Control,Filling,Sealing,Labeling
Input ingredients
research and development materials,viscous fluids,chemical mixtures,pharmaceutical compounds,suspensions,cosmetic creams,liquid food products,paint components
Output ingredients
homogeneous mixture,blended product,emulsified compound,dissolved solutions,uniform dispersion
Market info
Visco Jet Ruhrsysteme is known for manufacturing advanced mixing and stirring equipment, particularly industrial agitators, which are engineered-to-order for various industries. Their expertise lies in efficient and tailored mixing solutions with a strong reputation for innovation and quality.

Technical Specifications


Antriebsleistung
0,37 – 0,55 kW
Spannungsversorgung
400 V / 50 Hz
Hubeinstellung
Manuell und stufenlos
Hubhöhe
500 mm
Höhe bei höchster Hubposition
1.650 mm
Höhe bei niedrigster Hubposition
1.145 mm
Material Stativ
Stahl lackiert RAL9010
Material Rühreinheit
Edelstahl 1.4404/1.4571/1.4301
ATEX-Ausführung
Zone 1,2,21 oder 22
Plug and Play Lösung
Inklusive

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
PLC-controlled
Cleaning method
Manual
Energy efficiency
Low kWh/kg
ATEX compliance
Zone 1,21
Height Adjustment
Stufenlose manuelle Anpassung

Material Compatibility


Cleanability
Electropolished / Ra<0.8 µm
Corrosive resistance (e.g. acids)
Stainless Steel 1.4404/1.4571
Density/particle size
0.5–2.5 g/cm³


Machine Safety
2006/42/EU
Electromagnetic Compatibility
2014/30/EU
Electrical Equipment for Use Within Certain Voltage Limits
2014/35/EU
ATEX Certification
RL2014/34/EU

Physical Characteristics


Machine footprint
Compact
Max Container Height
500 mm
Max Container Diameter
400 mm
Material
Edelstahl 1.4404/1.4571/1.4301
Height at Highest Hub Position
1,650 mm
Height at Lowest Hub Position
1,145 mm
Control panel type
Manual adjustment
Mounting
Direct on table or via base on floor

Custom Options


Control panel type
Various Schaltersatz- und Steuerungslösungen
Height Adjustment
Manual and stepless adjustment up to 500 mm
Drive Power Options
0.37 kW / 0.55 kW
ATEX Compliance
Versions for Zone 1,21
Plug and Play Solution
With 400 V / 50 Hz supply
Quick Change Coupling
Available for easy and quick mixer unit changes
Optional Extras
Customized lid construction,additional base plate
HMI Integration
Integrated Schaltersatz- und Steuerungslösungen
Cleaning Options
Electropolished components for easier cleaning
