Laboratory jaw crusher for sample preparation
Achieve precise size reduction and sample preparation with this compact jaw crusher, designed to handle diverse materials from ceramics to cement clinker, ensuring consistency and reliability in your lab processes.
Crushes and Reduces Samples Efficiently

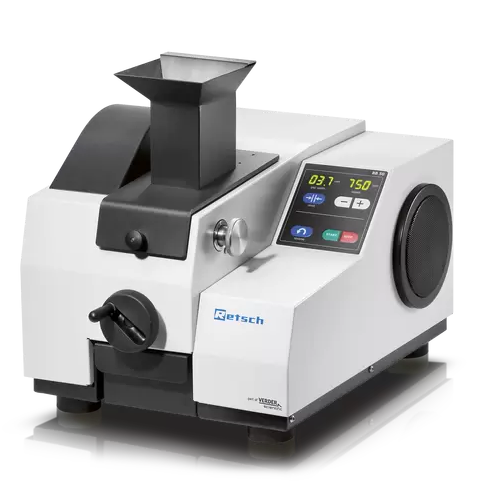

The Jaw Crusher BB 50 from Retsch is a compact, benchtop solution designed for reliable sample preparation in laboratory environments. This robust jaw crusher is engineered to process medium-hard, hard, brittle, and tough materials, reducing them down to fine powders with ease. Notably efficient for producing mineral samples, ceramic powders, and pharmaceutical powders, its forced-feed crushing principle ensures consistent results. With adjustable speed settings between 550 and 950 min-1 and a reverse rotating direction feature, the BB 50 accommodates various sample characteristics and prevents blockages. Operable in both batch and continuous modes, it integrates seamlessly into laboratory workflows. The device is made from durable materials like manganese steel, stainless steel, and tungsten carbide, ensuring wear resistance and longevity. The BB 50 is virtually maintenance-free thanks to its wear compensation with zero-point adjustment and permanently lubricated bearings. Users benefit from a digital display for gap width settings and the option of a dust-tight, large collection receptacle, enhancing cleanliness and sample integrity.
Benefits
- Enhances operational efficiency with adjustable speed settings to match sample requirements.
- Minimizes maintenance needs through zero-point adjustment and lifetime lubrication.
- Prevents cross-contamination with an optional collecting receptacle lid.
- Facilitates clean work environments with a dust-tight construction.
- Streamlines laboratory processes with removable components for easy cleaning.
- Applications
- Ceramics,Silicon,Construction materials,Metallurgy,Medicine,Cement clinker,Ores,Geology,Pharmaceuticals,Glass,Oxide ceramics,Biology,Jade,Quartz,Coal,Concrete,Agriculture,Slag
- End products
- Slag processing elements,Pharmaceutical powders,Coal samples,Geological specimens,Biologically relevant powders,Metallic coatings,Ceramic powders,Jade crafting materials,Concrete aggregates,Cement processing materials,Soil samples,Glass frits,Quartz sand,Silicon powders,Construction fill materials,Mineral samples,Metal ores
- Steps before
- Sample Collection,Sample Feeding,Purification
- Steps after
- Sieving,Particle Analysis,Mixing,Storage
- Input ingredients
- construction materials,ores,granite,oxide ceramics,quartz,slag,silicon,coal,tungsten alloys,cement clinker,concrete,jade,glass
- Output ingredients
- < 0.5 mm final fineness
- Market info
- Retsch is renowned for manufacturing high-quality laboratory equipment, specializing in milling, sieving, and assisting technologies for sample preparation and characterization, known for precision, reliability, and innovation in the scientific and industrial laboratory markets.
- Throughput
- 3 l/batch
- Feed material size
- < 40 mm
- Final fineness
- < 0.5 mm
- Jaw width
- 45 x 59 mm
- Gap width setting
- 0 - 11 mm in increments 0.1 mm
- Speed setting
- 550 to 950 min-1
- Drive power
- 1.1 kW
- Net weight
- ~ 79 kg
- Dimensions (W x H x D)
- 420 x 460 x 560 mm
- Material of grinding tools
- Manganese steel,stainless steel,tungsten carbide,zirconium oxide,steel for heavy-metal free grinding
- Power connection
- 1-phase
- Protection code
- IP 20 / IP 00 at ventilation slots
- Zero point adjustment
- Yes
- Reverse rotating direction
- Yes
- Collector capacity
- 3 l
- Batch vs. continuous operation
- Batch / Continuous
- Speed setting
- Variable (550 - 950 min-1)
- Reverse rotating direction
- Yes
- Zero point adjustment
- Yes
- Cleaning method
- Manual (removable parts)
- Lubrication
- Lifetime lubrication
- Display type
- Digital
- Operation interface
- Keypad
- Collection receptacle capacity
- 3 liters
- Sample feed via hopper
- Yes (with splash-back protection)
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Material feed size
- < 40 mm
- Final fineness
- < 0.5 mm
- Jaw width
- 45 x 59 mm
- Gap width setting
- 0 - 11 mm in increments of 0.1 mm
- Collector capacity
- 3 L
- CE marking
- Yes
- Machine footprint
- 420 x 460 x 560 mm
- Weight
- ~ 79 kg
- Jaw width
- 45 x 59 mm
- Collection receptacle capacity
- 3 l
- Feed material size
- < 40 mm
- Gap width setting
- 0 - 11 mm in increments of 0.1 mm
- Zero point adjustment
- Yes
- Speed adjustment
- Variable speed between 550 and 950 min⁻¹
- Removable jaws
- Yes,for easy cleaning and conversion
- Interchangeable materials
- Selection of different jaw materials (e.g.,manganese steel,tungsten carbide)
- Digital display
- Digital display for gap width and speed
- Reversible rotating direction
- Yes,helps in case of blockages
- Collector receptacle accessory
- Optional lid to prevent contamination
- Control panel
- Convenient operating keypad with digital display
- Hopper type
- Fold-back hopper for easy access and cleaning
