Laboratory high shear mixer for wet mixing and granulation
Optimize your mixing, granulation, and drying processes with precise control over small-batch pharmaceutical, chemical, or food ingredient preparations, ensuring high-quality outcomes with laboratory-grade precision.
Mixes, Granulates, and Dries Laboratory Samples

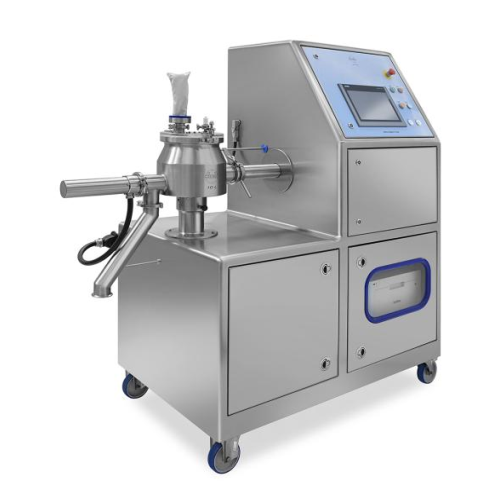

The Laboratory High Shear Mixer from Cos.Mec is designed for the precise processing of small-batch pharmaceutical, chemical, and food applications. Capable of performing mixing, granulation, and drying within a single unit, it offers flexibility with different chamber volumes and a transparent lid for operational visibility. The mixer streamlines operations with both manual and automatic PLC control, featuring a touchscreen interface for ease of use. It allows integration with local networks for advanced recipe management, enhancing operational efficiency. This mixer is constructed with mirror-polished AISI 316L components in contact with the product, ensuring high corrosion resistance, and AISI 304 for other parts, offering durability and low maintenance. Optional features such as a temperature probe and heating jacket with a vacuum system are available for precise drying applications. With compliance to industry standards, this equipment is an essential tool for R&D departments aiming to simulate production-scale processes on a pilot scale.
Benefits
- Enhances production efficiency through integrated mixing, granulation, and drying processes.
- Lowers operational labor costs with automated PLC management and touchscreen controls.
- Ensures high product quality with precise control over granulation liquid input and temperature monitoring.
- Facilitates seamless integration into digital environments with network connectivity for advanced recipe management.
- Maintains high cleanliness standards with polished stainless steel construction, minimizing contamination risks.
- Applications
- Food ingredients,Pharmaceutical powder,Fine chemicals
- End products
- Steps before
- Purification,Grinding
- Steps after
- Sterilization,Packing,Tablet Pressing
- Input ingredients
- pharmaceutical products,granulation liquids
- Output ingredients
- wet mixed products,granulated products,dried products
- Market info
- Cos.Mec is known for manufacturing industrial engineered-to-order (ETO) equipment, specializing in turnkey solutions for powder handling, processing, and finishing. They have a strong reputation for quality, innovation, and dedicated customer service in the pharmaceutical and chemical industries.
- Mixing process
- Wet mixing
- Granulating process
- Yes
- Drying process
- Yes
- Automation
- PLC-controlled
- Control panel type
- Touchscreen
- Material
- AISI 316 L for product contact parts
- Material
- AISI 304 for non-contact parts
- Surface finish
- Mirror polished,RA ≤ 0.4 µm for contact parts
- Surface finish
- Fine satin polished,RA ≤ 0.8 µm for non-contact parts
- Capacity
- Various volumes available
- Product entry
- Funnel and manual valve
- Lid type
- Transparent lid
- Exhaust system
- Exhaust filter
- Pneumatic command
- Pad valve
- Connectivity
- USB,RJ 45 network connection
- Optional feature
- Product temperature probe
- Optional feature
- Heating jacket with vacuum system
- Automation level
- PLC + touchscreen
- Batch vs. continuous operation
- Batch
- Cleaning method
- Manual
- Corrosive resistance (e.g. acids)
- AISI 316 L
- Mobile solution
- Yes
- Granulating chamber volumes
- Various
- Transparent lid
- Yes
- Funnel and manual valve
- For granulation liquids
- Exhaust filter
- Yes
- Pad valve with pneumatic command
- Yes
- Control panel type
- PLC + touchscreen
- Integration possibilities
- USB connection,RJ 45 connection
- Optional features
- Product temperature probe,Heating jacket with vacuum system
