Laboratory bead mill for research and development

Optimize your laboratory processes with this flexible and modular bead mill, designed for precision grinding and dispersing of diverse liquid and slurry-based materials, enhancing R&D capabilities and product development.

Grinds and Disperses Viscous Liquids and Slurries

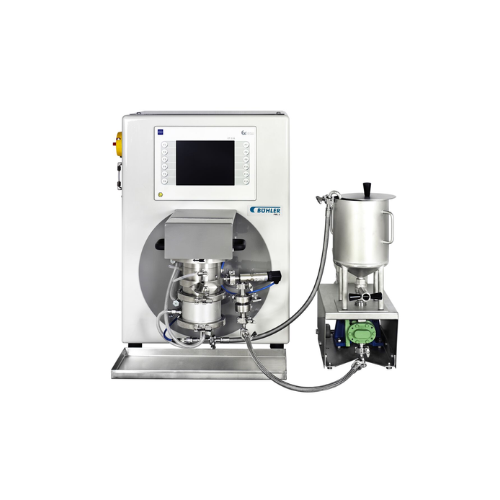

The PML 2 Laboratory Bead Mill from Bühler is a modular solution designed to meet the diverse requirements of R&D facilities and specialty chemicals manufacturers. Its unique ability to process low to medium viscous products makes it perfect for applications such as printing inks, electronic materials, and high-value coatings. Utilizing exchangeable process units like the Centex S1 and S2 horizontal disc agitators, and the SuperFlow 4 high-performance agitator, it accommodates a range of applications between 0.07 to 0.6 liters.

Operable in both vertical and horizontal positions, the PML 2 ensures flexible operation and reduced setup times by allowing easy filling and cleaning through its innovative upside-down service position. The advanced touch screen control system provides precise parameter management for repeatable results.

With chamber materials including ceramic, synthetic, and steel, it offers tailored solutions for chemical compatibility and product integrity. This system is engineered for bench-top and pilot-scale operations and supports manual, modular, and flexible setups, enabling efficient and streamlined process development.

Benefits

  • Customizes process development with exchangeable units, enabling wide application versatility.
  • Reduces setup and maintenance time with flexible operating positions and an easy-clean design.
  • Enhances product quality with precision grinding and dispersing for low to medium viscous materials.
  • Supports energy efficiency in laboratory settings with optimized motor control.
  • Ensures chemical compatibility through a choice of robust chamber materials.

General


Applications
Paints and coatings,Printing inks,Specialty chemicals,Digital inks,Display electronics,High-value coatings,Batteries,Electronic materials
End products
Lithium-ion battery anodes,Emulsion paints,Uv-curable coatings,Printed circuit board (pcb) laminates,Offset printing inks,Quantum dot displays,Oled displays,Conductive polymer coatings,Inkjet printer cartridges
Steps before
Mixing,Preparation,Emulsification
Steps after
Quality Control,Coating,Packaging,Labeling
Input ingredients
low to medium viscous products,ceramic,synthetic,steel,high-value coatings,display and electronics materials,printing inks,specialty chemicals,micro beads
Output ingredients
processed viscous products,ground materials,dispersed materials,wet-ground products
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Processing chamber volume
0.07 to 0.6 liters
Operating position
Vertical or Horizontal
Exchangeable process units
Centex S1,S2,SuperFlow 4,MicroMedia L
Agitator type
Disc agitator
Agitator operation mode
Recirculation
Grinding beads size
20 to 200 micrometers
Automation
Touch screen display with control algorithms

Operating Characteristics


Modular Design
Yes
Process Development
Exchangeable process units
Operating Position
Vertical / Horizontal
Service Position
Upside-down for easy maintenance
Automation Level
Touch Screen / Basic Controls
Batch vs. Continuous Operation
Batch with recirculation mode
Cleaning Method
Manual

Product type Characteristics


Processing unit compatibility
Centex S1 / S2,SuperFlow 4,MicroMedia L

Physical Characteristics


Machine footprint
Compact
Operating position
Vertical / Horizontal
Processing chamber material
Ceramic / Synthetic / Steel
Processing chamber size
0.07 to 0.6 liters
Discharge method
Manual
Pivoting drive unit
Vertical / Horizontal
Control panel type
Touch screen / Basic controls

Custom Options


Processing chamber materials
Ceramic,synthetic,steel
Control panel type
Touch screen display / Basic controls
Operating position
Vertical / Horizontal
Exchangeable process units
Centex S1,S2,SuperFlow 4,MicroMedia L
Automation
Sophisticated control options
Service position
Upside-down for easy maintenance
