Kneader sheeter for single sheet pasta production

Achieve consistent and precise dough sheeting with advanced kneader sheeter technology, designed for high-speed pasta and snack production lines, ensuring optimal texture and thickness for your end products.

Kneads, Sheets, and Calibrates Dough Consistently

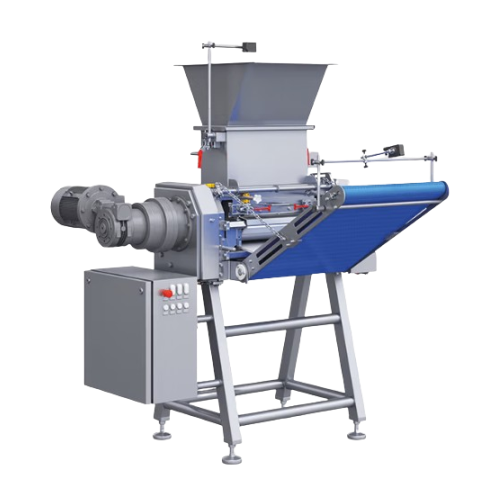

The SF – Single Sheet Kneader Sheeter is meticulously designed by GEA to enhance your food production capabilities, specifically in pasta, snack, and breakfast cereal manufacturing. This equipment excels in kneading, sheeting, and calibrating dough to create uniform and high-quality sheets ideal for products like tagliatelle, lasagna sheets, and cereal flakes. With a robust processing capacity ranging from 400 to 1200 kg/h and sheet width options of 800 to 1200mm, it supports high-speed, continuous operations crucial for scaling production.

The SF operates with an integrated roll system featuring three kneading rollers and calibrating rolls to achieve precise sheet thickness. Its advanced design separates internal and external shoulders, preventing oil and grease contamination, and offers openable shoulders for effortless cleaning. The machine’s structure ensures minimal stress on the dough, maintaining a consistent room temperature output, a critical factor in quality control.

Compatible with existing production lines, the SF can be fully automated for seamless integration and is constructed from materials that promote durability and hygiene. Optional customization and engineering support are available to adapt the SF to specialized production requirements, ensuring it meets your specific operational needs.

Benefits

  • Enhances production efficiency with continuous operation and high throughput.
  • Maintains dough quality by preventing temperature increases during processing.
  • Minimizes maintenance needs with easy-to-clean, contamination-free design.
  • Reduces operational costs through durable construction and seamless integration.
  • Customizable features ensure adaptability to specific production requirements.

General


Applications
Breakfast cereals,Fresh pasta,Snacks
End products
Lasagna sheets,Egg noodles,Cereal flakes,Fettucine,Dumpling wrappers,Tortilla base,Crackers,Tortellini wrappers,Tagliatelle,Ravioli dough sheets,Cannelloni tubes
Steps before
Dough preparation,Ingredients mixing
Steps after
Pasta cutting,Packaging
Input ingredients
dough
Output ingredients
7 mm single sheet pasta
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Capacity
400-1200 kg/h
Sheet width
800-1200 mm
Sheet thickness
7 mm
Kneading rollers
Three rollers
Calibrating rolls
A pair
Temperature Maintenance
Outlet at room temperature

Operating Characteristics


Working Mechanism
Kneading and Calibrating Rolls
Integrated Steps
Kneading,Calibrating,Sheet Forming
Batch vs. Continuous Operation
Continuous
Cleaning Method
Openable Shoulders for Easy Cleaning
Energy Efficiency
Optimized Roller Design
Automation Level
Manual / PLC Control
Air Incorporation Control
Yes

Material Compatibility


Cleanability
Openable shoulders for cleaning
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Not specified
Sheet width
800–1200 mm
Discharge method
Single sheet outlet
Kneading rollers
Three rollers
Calibrating rolls
One pair
Sheet thickness
7 mm
Openable shoulders
Yes,for cleaning
Internal shoulders
Separated by external ones

Custom Options


Kneading Rollers
Three rollers with calibrating rolls
Shoulder Type
Openable for easy cleaning
Contamination Prevention
Internal and external shoulder separation
