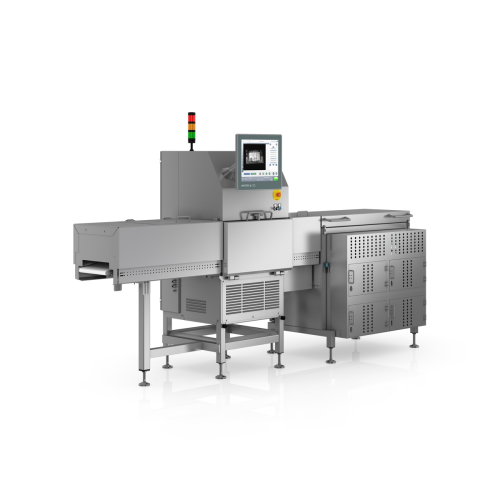

Integrated x-ray, checkweighing, and vision inspection unit

Ensure product safety and compliance by seamlessly detecting impurities, verifying weights, and confirming label accuracy—all within a single compact unit.

Inspects, Weighs, and Verifies Product Integrity

The SC-W-V from Wipotec is an engineered-to-order inspection system that combines X-ray, optical, and checkweighing technology into a compact unit. It provides comprehensive product inspection for industries such as food, pharmaceuticals, cosmetics, and more. Utilizing integrated inspection methods, it detects contaminants, verifies label accuracy, checks barcodes, and confirms expiration dates, all at high-speed, continuous operation. With a stainless steel construction and designed to meet IP54 protection standards, the SC-W-V is easy to clean and maintain. Its flexible component design allows seamless integration into existing production lines, enhancing productivity while ensuring compliance with industry standards. The color TFT display with touchscreen ensures intuitive operation, centralizing control of all inspection units from a single interface.

Benefits

  • Ensures product safety and quality by integrating comprehensive inspection methods in a single unit.
  • Minimizes recall risks through accurate detection of contaminants and labeling errors.
  • Boosts productivity with high-speed, continuous operation suitable for demanding industrial applications.
  • Simplifies operation with a user-friendly interface, reducing training time and errors.
  • Facilitates hygiene compliance with easy-to-clean, stainless steel construction.

General


Applications
Food,Mail,Chemical industry,Cosmetics,Machinery,Aerosol,Other industries / technical products,Building and mineral compounds,Logistics,Pharmaceuticals
End products
Foundation bottles,Postal packages,Electronic components,Snack bars,Blister packs,Industrial gears,Concrete additives,Industrial adhesives,Aerosol cans,Shipping parcels
Steps before
Purification,Initial product labeling,Primary packaging
Steps after
Sterilization,Secondary packaging,Distribution preparation
Input ingredients
raw products,packaged goods,products with barcodes,products with labels,food packages
Output ingredients
inspected products,verified packages,contaminant-free goods,accurately weighed products,properly labeled products
Market info
Wipotec is renowned for its precision weighing technology and high-speed checkweighers used in various industries, including pharmaceuticals and food. They are recognized for their innovation and high-quality engineered-to-order solutions in weight measurement and inspection systems.

Technical Specifications


Inspection Methods
X-ray / Weighing / Optical
Precision
High precision checkweighing
Automation
Central user interface
Display
15" TFT Color Touchscreen
Protection Class
IP54
Construction
Full stainless steel
Design
Balcony design with sloped surfaces
Inspection Capabilities
Barcode / Ingredients / Nutritional values / Expiry date / Legibility,Position control of labels
Operating Environment
Hygienic standards
Structural Features
Space-saving design

Operating Characteristics


Integrated Steps
X-ray,Weighing,Optical Inspection
Checkweighing Mechanism
High Precision
Cleaning Method
Effortless Cleaning
Hygiene Standards
Highest Hygienic Standards
Automation Level
Controlled from HMI
CIP Principles
Balcony Design,Sloped Surfaces
Batch vs. Continuous Operation
Batch / Inline Continuous
Legibility Check
Label and Code Position Control
Cover Film Verification
Verification of Best-Before Date

Material Compatibility


Cleanability
High
Corrosive resistance (e.g. acids)
Stainless steel
Biological compatibility
Food grade materials


Hygienic standards
Highest hygienic standards

Physical Characteristics


Compact footprint
Space-saving design
Control panel type
15" color TFT display with touchscreen
Construction material
Stainless steel
Design type
Balcony design
Protection class
IP54

Custom Options


Control panel type
15“ colour TFT display with touchscreen
Integration possibilities
X-ray,weighing,and optical inspection in one unit
Compact footprint
Space-saving design
Hygienic design
Full stainless steel construction
IP54 protection
Design flexibility
Flexible component design
