Integrated optical sorting unit for lightweight materials

Optimize your processing of lightweight materials by achieving precise and high-speed separation, ensuring superior purity of recyclables such as plastic foils and paper sheets.

Precisely Sorts and Separates Lightweight Materials

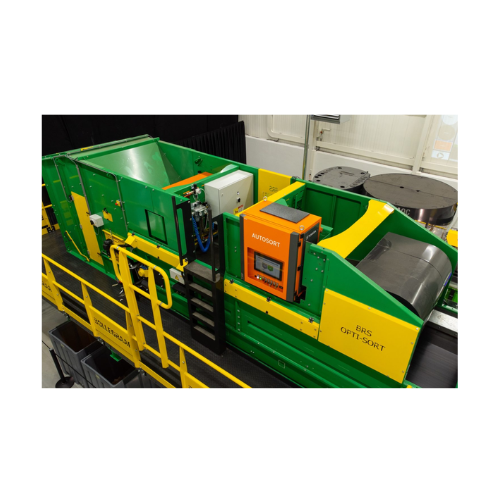

The Opti-Sort Integrated Optical Sorting Unit from Bollegraaf stands out for its innovative approach to handling lightweight materials like flexible plastic packaging and single sheets of paper. This unit utilizes a patented curved ejection hood design, ensuring precise control of materials within its high-speed operation capability of up to 6.5 m/s. By combining the Bollegraaf Speed conveyor with a laminar air flow displacement unit, the Opti-Sort achieves seamless material separation, enhancing the purity and recovery of processed waste materials. Ideal for recycling and waste management applications, it efficiently processes plastic, paper, and cardboard waste into end products such as recycled plastic foils and de-inked paper. Designed for continuous operation, this equipment minimizes installation time, integrates easily into existing lines, and offers modularity for future upgrades. The Opti-Sort aligns with the needs of waste management companies and recycling facilities focused on maximizing operational performance and material recovery rates.

Benefits

  • Enhances material purity by reducing contamination in recycled streams.
  • Improves recovery rates of lightweight packaging materials by precise trajectory control.
  • Minimizes installation time with a fully integrated and modular design.
  • Supports high-speed operations up to 6.5 m/s without balance issues.
  • Offers flexibility to adapt to specific processing needs with customizable ejection valve configurations.

General


Applications
Cardboard waste,Single sheets of paper,Plastic waste,Flexible plastic packaging,Lightweight materials,Paper waste
End products
De-inked paper,Plastic wrap,Plastic foils,Recycled cardboard,Recycled plastic pellets,Recycled paper sheets,Packaging films
Steps before
Feeding,Screening
Steps after
Separation,Recovery,Balers
Input ingredients
lightweight materials,flexible plastic packaging,single sheets of paper,contaminated paper streams
Output ingredients
recovered flexible plastic packaging,purified paper from de-inking installations,separated lightweight packaging materials
Market info
Bollegraaf is known for manufacturing advanced recycling equipment and systems. With a strong reputation for innovation and quality, they specialize in engineered-to-order solutions, optimizing waste processing efficiency and sustainability for diverse industries globally.

Technical Specifications


Speed
Up to 6.5 m/s
Ejection Hood Design
Patented Curved Design
Material Handling
Precise Lightweight Material Processing
Automation
Integrated Optical Sorting Unit
Recovery Rate Improvement
Increase by 2% for Flexible Plastic Packaging
Ejection Valve Configuration
Top/Bottom vs Bottom/Bottom
Airflow Control
Laminar Air Flow Displacement
Installation Time
Minimized
Performance Guarantee
Maximized Optical Unit Performance
Flexibility and Modularity
Centralized in Design
Conveyor Belt Type
Bollegraaf Speed Conveyor
Universal Scanner Support
Included in Design

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Inline Continuous
Changeover time
Minimized due to integrated design
Speed
Up to 6.5 m/s
Material handling precision
High precision for lightweight materials
Installation time
Minimized
Material trajectory control
Curved ejection hood design
Modularity
Flexible with universal scanner support

Material Compatibility


Lightweight materials
Plastic foils,paper sheets
Density/particle size
Lightweight,flexible

Physical Characteristics


Discharge method
Precision ejection hood
Machine speed
Up to 6.5 m/s
Modular design
Yes
Ejection hood design
Curved
Footprint type
Integrated Unit

Custom Options


Modularity
Universal scanner support
Integration possibilities
Bollegraaf Speed conveyor integration
Ejection valve configuration
Top/Bottom vs Bottom/Bottom
