Infrared fever screening for elevated body temperature detection
Ensure safety with non-contact infrared screening for accurate fever detection, ideal for environments where rapid and reliable temperature assessment is critical to preventing the spread of infections.
Detects Elevated Body Temperatures Efficiently

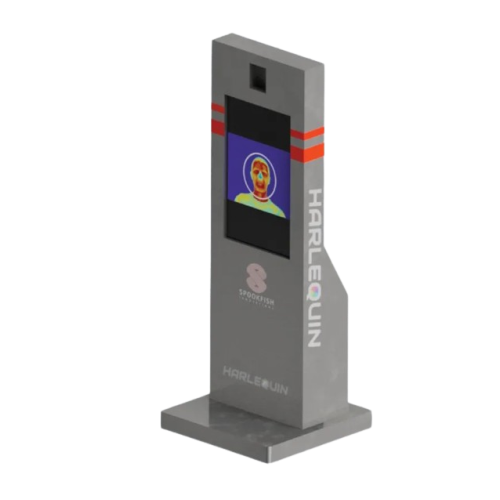

The Harlequin Infrared Temperature Screening System from Spookfish Innovations offers precise, non-contact fever detection, crucial for maintaining health safety in high-traffic environments such as factories, offices, and airports. Utilizing advanced infrared thermography, it accurately measures the temperature at the corner of the eyes, aligning closely with core body temperature. This technology enables a throughput of up to 900 individuals per hour, ensuring efficiency without compromising accuracy. Designed for seamless integration, the system complies with ISO/TR 13154:2017 and BS EN IEC 80601-2-59 standards, guaranteeing reliability. With a maximum working distance of 2 meters and thermal sensitivity approved by the WHO, Harlequin is ideal for diverse applications from employee health screenings to spectator monitoring at sports events.
Benefits
- Enhances health safety through non-contact, accurate fever detection.
- Increases throughput with the capability to screen up to 900 individuals per hour.
- Minimizes manual labor with automated, high-speed operations.
- Ensures compliance with global standards, fostering trust and reliability.
- Ideal for diverse environments, from industrial settings to public venues.
- Applications
- Universities,Factories,Airports,Offices,Sports venues,Seaports
- End products
- Cargo area temperature monitoring,Spectator health screenings,Visitor temperature checks,Student wellness checks,Employee health screenings,Passenger fever assessments
- Steps before
- Entry point screening setup,Hardware installation,Calibration
- Steps after
- Data analysis,Report generation,Alert notification
- Input ingredients
- individuals,body temperature
- Output ingredients
- fever detection result,temperature measurement,core body temperature correlation
- Market info
- Throughput
- up to 900 people/hour
- Resolution
- ~640 x 480 pixels
- Field of View (FOV)
- 25° x 18.8°
- Frequency
- 30Hz
- Thermal Sensitivity
- WHO approved sensitivity required
- Precision
- ±0.25°C
- Absolute Temperature Accuracy
- ±2°C or ±2% of reading
- Emissivity Correction
- 0.01 to 1.0 (Fixed at 0.98)
- Working Distance
- Max. 2m
- Non-contact screening
- IR camera based thermography
- Temperature measurement point
- Corner of the eyes
- Deployment locations
- Factories,offices,airports,seaports,universities,sports venues
- Throughput capacity
- Up to 900 people/hour
- Deployment Locations
- Factories,offices,airports,seaports,universities,sports venues
- ISO/TR Standard
- ISO/TR 13154
- BS EN IEC Standard
- BS EN IEC 80601-2-59
- Control panel type
- Digital Interface with Remote Access
- Integration possibilities
- Compatible with Building Management Systems (BMS)
- Resolution
- ~640 x 480 pixels
- Field of View
- 25° x 18.8°
- Working Distance
- Max. 2m
