Industrial washing and sorting for bell peppers

Efficiently sort, trim, and wash your peppers with a single system, ensuring optimal separation and cleanliness in your food processing line.

Sorts, Washes, and Separates Vegetables and Fruits

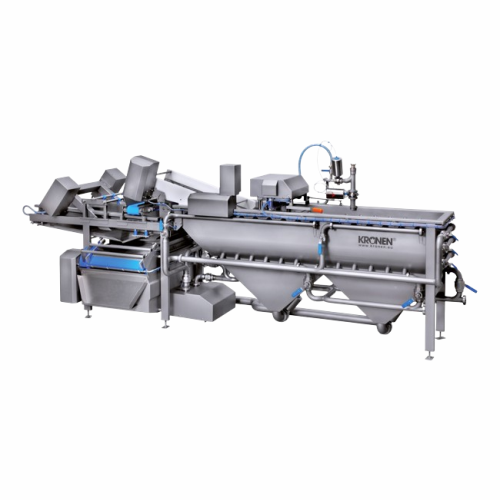

The GEWA 3850V PLUS from KRONEN is a high-capacity washing and sorting machine designed to efficiently handle complex food processing tasks. Utilizing a helical washing system, this machine separates and cleans various vegetable and fruit products, such as diced bell peppers and broccoli florets, ensuring optimal quality and hygiene. It processes up to 1,200 kg of produce per hour, integrating seamlessly into continuous production lines with its automatic filling and vibration outfeed. The flotation separation system distinguishes between waste and usable products using water flow dynamics, minimizing labor and enhancing efficiency. Constructed from AISI 304 stainless steel, it ensures durability and corrosion resistance, while its water management system reduces consumption and maintains environmental compliance. Additionally, its accessible design facilitates easy cleaning and maintenance, crucial for food processing environments. Tailored solutions and engineering support are available to meet specific production needs, making it an ideal choice for large-scale vegetable and fruit processing facilities.

Benefits

  • Enhances product quality by efficiently sorting and washing in a single operation.
  • Lowers labor costs with automated continuous processing.
  • Conserves water usage using an integrated water management system.
  • Reduces contamination risks with easy cleaning and maintenance design.
  • Supports diverse processing needs with adaptable flow and water control settings.

General


Applications
Peppers,Baked goods,Bell peppers,Salads,Pet food,Broccoli,Peppers strips,Fruits,Vegan products,Food processing,Vegetables
End products
Cleaned fruit salad ingredients,Diced bell peppers,Vegan pepper-based sauces,Washed broccoli florets,Prepared mixed salads,Baked goods with vegetables,Cut bell pepper strips,Processed vegetable medley,Vegetable-based pet food
Steps before
Trimming,Sorting,Cutting
Steps after
Vibration outfeed,Dewatering,Packaging
Input ingredients
uncored cut peppers,diced peppers,peppers cut into strips,cut bell peppers with stem and seeds,broccoli,products with similar floating properties
Output ingredients
sorted peppers,washed peppers,waste (stem and immature white parts),good product,separated heavy parts
Market info
KRONEN is known for manufacturing industrial food processing equipment, specializing in washing, cutting, peeling, and packaging machinery, recognized for innovation, high quality, and efficiency in automated food processing solutions.

Technical Specifications


Capacity
1,200 kg/h
Power
7.9 kW
Voltage
3~400 V N/PE
Frequency
50 Hz
Fresh water connection
3/4 inch
Water drainage
2 x 2"
Dimensions (LxWxH)
4452 x 1640 x 1829 mm
Weight
560 kg
Infeed/placement height
1232 mm
Outfeed/delivery height
925 mm

Operating Characteristics


Automation level
Automatic / PLC
Batch vs. continuous operation
Continuous
Cleaning method
Manual / CIP
Flotation separation process
Available
Water management system
Automatic control
Integrated steps
Washing,Sorting,Trimming
Energy efficiency
Optimized for water use reduction
Changeover time
Quick due to flexible adjustment
CIP/SIP
CIP
Ideal accessibility for cleaning and maintenance
Yes

Material Compatibility


Cleanability
AISI 304 stainless steel
Corrosive resistance (e.g. acids)
AISI 304 stainless steel
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Flotation Characteristics
Peppers,Broccoli
Discharge Method
Vibration Outfeed
Sand Trap Funnel Volume
49 L or 98 L
Capacity
1,000 - 1,200 kg/h
Particle Size for Filtration
0.5 mm slotted strainer
Automation Level
Automatic Filling
Energy Efficiency
Water Management System (WMS)
Compatibility with Product State
Diced or Stripped Peppers

Custom Options


Control panel type
Central control with SMART Solutions capability
Integration possibilities
Central fresh water supply and emptying control
Adjustable water flow
Yes,to suit different products
Customization for product type
Helical system for versatile product applications
Operational automation
Continuous washing with automatic filling,no personnel required
