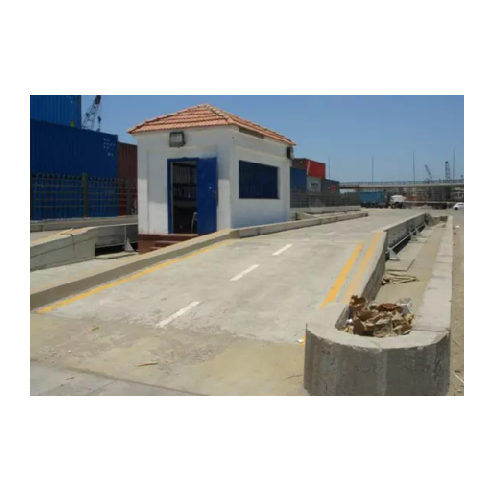

Industrial steel weighbridge for heavy load weighing

Optimize your material handling processes with precise weight measurements and customizable configurations, ensuring accurate load assessments for heavy-duty applications across various production environments.

Weighs and Evaluates Loads Precisely

The Weighbridge Steelsolution from Schenck Process is a customizable weighing platform designed to deliver precise load assessments in diverse industrial settings. Featuring both pit and above-ground installations, it addresses the weighing needs of chemical industries, infrastructure companies, and energy sectors. This equipment stands out for its adaptability to specific axle and load configurations, easily integrating into static and dynamic production lines. Suitable for applications ranging from chemicals to energy production, it supports legal-for-trade measuring for transport vehicles and special industrial applications. With added functionality from DISOMAT® evaluation electronics and customizable Disoware S software, the system allows seamless automation and remote monitoring. Engineered for durability, these scales accommodate up to 200 tons with options tailored to various environmental conditions, ensuring compliance with industry standards.

Benefits

  • Enhances operational efficiency with accurate, legal-for-trade weighing.
  • Adapts to unique industrial needs with customizable load and axle configurations.
  • Integrates seamlessly into existing systems with flexible installation options.
  • Minimizes maintenance costs through durable construction and engineering support.
  • Supports sustainability goals by ensuring compliance with industry standards.

General


Applications
Chemicals,Coal-,Special vehicles,Transport vehicles,Transport,Biomass-fired power plants,Agrichemicals,Coke-fired power plants,Industrial applications,Yard logistics,Steelmaking,Infrastructure materials,Fertilizers,Energy production
End products
Truck chassis components,Railcar assemblies,Polyethylene pellets,Structural steel beams,Locomotive weights,Biomass pellets,Ammonium nitrate,Trailer weights,Reinforced steel bars,Steam turbines,Solar power plant components,Masterbatch compounds,Conveyor belting,Coke oven charges,Construction aggregates
Steps before
Steel fabrication,Site preparation,Foundation laying
Steps after
Legal-for-trade loading calculations,Transport vehicle dispatch,Data analysis and reporting
Input ingredients
industrial vehicles,transport vehicles,special vehicles,axle loads
Output ingredients
weighed vehicles,legal-for-trade loading calculations,weighing data
Market info
Schenck Process is known for its expertise in material handling, weighing, feeding, and automation solutions. The company has a strong reputation for delivering high-quality engineered-to-order equipment for diverse industries, backed by innovative technology and customer-centric service.

Technical Specifications


Dimensions
18 (10 + 8) × 3m,20 (10 + 10) × 3m,24 (12 + 12) × 3m
Custom Dimensions
20 (10 + 10) × 6m,18 (10 + 8) x 4m,26 (13 + 13) × 3.5m,21 (7 + 7 + 7) × 3m
Capacity
100t,200t
Axle Load
10t,17t
Installation Options
Pit or above-ground
Load Cells,Electronics Compatibility
DISOMAT® Tersus,ZEUS,JASON
Software Compatibility
Disoware S
Application Type
Industrial,Legal-for-trade Loading Calculations

Operating Characteristics


Installation Type
Pit / Above-ground
Customization Level
Standard / Custom Dimensions
Axle Load Capacity
10t / 17t
Weighing Range
100t / 200t
Integration with Electronics
DISOMAT® TersusZEUSorJASON
Software Compatibility
Disoware S
Application
Industrial / Legal-for-trade loading calculations

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Suitable applications
Industrial applications,Legal-for-trade loading calculations

Physical Characteristics


Machine Footprint
18 (10 + 8) × 3m to 26 (13 + 13) × 3.5m
Version Type
Pit or Above-ground
Material
Steel
Special Dimensions
Customizable
Axle/Special Load Capacity
Calculated to customer needs
Discharge Method
Static,Dynamic Scales

Custom Options


Design Type
Pit or Above-Ground
Dimensions
Customized per customer needs
Axle Load Capacity
Customizable,e.g.,10t,17t
Weighing Range
Customizable,e.g.,100t,200t
Software Integration
DISOMAT® Integration,Disoware S
