Industrial slicer for natural shaped products

Achieve precise and high-speed slicing of diverse food products, optimizing yield and portion control with advanced technology designed for continuous, efficient production.

Slices and Portions Cheese and Meats Efficiently

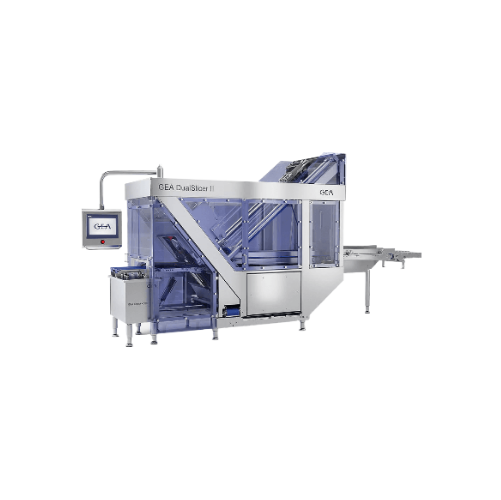

The GEA DualSlicer II 1850 from GEA is a high-speed industrial slicer tailored for the precise slicing of cheese and meats, including products like cheddar, Swiss cheese with holes, prosciutto, and smoked bacon. This slicer features twin, independent drives and traction systems, allowing for simultaneous processing of two logs with different diameters and lengths. Its unique involute blade technology ensures consistent slice thickness and minimal product giveaway, crucial for achieving high yield in food processing operations. Capable of slicing a wide array of portion types—such as stacks, shingles, and interleaved portions—this machine is an integral part of industrial operations in food, dairy, and meat processing industries. The slicer’s automatic product loading, combined with options like the GEA OptiScanner for density-based slicing accuracy and the GEA Check 4000 for precise portion weighing, enhances its integration capability into existing production lines. With a capacity for handling products up to 1,850mm long and a maximum blade speed of 1,500 rpm, the GEA DualSlicer II excels in continuous, high-speed operations. Maintenance is simplified with easy access for cleaning, ensuring compliance with stringent hygiene standards. Additionally, this machine offers remote monitoring and preventive maintenance options, supported by GEA’s extensive engineering expertise.

Benefits

  • Enhances product yield by minimizing giveaway through precision slicing.
  • Adapts to diverse production needs with flexible portion control and formats.
  • Accelerates setup times and maintenance with easy access and rapid changeover.
  • Optimizes production efficiency with high-speed, continuous operation.
  • Integrates seamlessly into existing lines with advanced weighing and scanning options.

General


Applications
Bacon,Sausage,Cheese,Cooked ham,Salami,Raw ham
End products
Smoked bacon strips,Honey glazed ham slices,Sliced cheddar cheese,Salami sandwich slices,Sliced swiss cheese with holes,Prosciutto slices
Steps before
Product loading,Pre-scanning,Density measurement,Calibration
Steps after
Weighing,Portioning,Interleaving,Folding
Input ingredients
cheese,raw ham,cooked ham,calibrated sausage,salami
Output ingredients
sliced cheese,sliced raw ham,sliced cooked ham,sliced sausage,sliced salami,shingle portions,stack portions,zig zag stack,shaved pieces,folded,interleaved
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Type of blade
Involute blade
Blade size
R 470 mm
Max. blade speed
1,500 rpm
Cutting cross-section
Width 500 mm up to max. product height 145 mm
Max. product length
1,850 mm
Machine dimensions (L x H x W)
5,140 x 2,790 x 1,350 mm
Power supply
11 kW
Compressed air
6 bar 15 – 600 L/min
Noise emission
< 76 db (A)

Operating Characteristics


Automation level
Manual / PLC / SCADA
Changeover time
Fast and easy
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Flexibility in operations
High,supports various portion types
Energy efficiency
Low-maintenance design
Working mechanism
Twin independent drives
Slicing method
Involute blade technology
Integration capability
Supports add-ons like OptiScanner


CE marking
Yes
FDA compliance
Materials used are likely FDA compliant

Physical Characteristics


Compact footprint
Yes
Machine dimensions L x H x W
5,140 x 2,790 x 1,350 mm
Max. product length
1,850 mm
Cutting cross-section Width
500 mm up to max. product height 145 mm
Width
270 - 500 (480) mm
Height
200 - 140 mm

Custom Options


Control panel type
Clearly structured,illustrated operator display
Integration possibilities
GEA OptiScanner,GEA Check 4000,Telemonitoring/Remote services
Changeover capability
Fast changeover of gripper,blade,and recipe
Interleaving option
GEA Interleaver,2 lanes independent
Folding unit
Available,adjustable in three directions
Preventive maintenance
GEA Performance PLUS
Weighing system
GEA Check 4000,up to 4 lanes
Remote services
GEA Performance Service
